Robust metal air treatment units I8 up to 18 bar

Robust I8 compressed air treatment units have a metal body and a metal bowl with a sight glass and withstand an inlet pressure of up to 18 bar. They come in three body sizes with G 1/4" to 1" threads.
The range comprises a pressure regulator, a 20 µm filter, a lubricator, a filter regulator and a two-piece unit. For each size there are spare 20 µm and 5 µm filter elements, bowls and mounting brackets.
Five components in three sizes
Size 1 has a 42 mm wide body and a G 1/4" thread, size 2 a 60 mm body and a G 3/8" or 1/2" thread, size 3 an 80 mm body and a G 3/4" or 1" thread. Dimensions are height × width.
Flow is the maximum air flow through the component in litres per minute. The inlet pressure of all components is at most 18 bar, the working temperature −10 to +50 °C.
Spare parts and accessories by size
Parts are chosen by body size. The pressure gauge for the regulators is ordered separately.
| I8 spare parts and accessories by size | ||||
|---|---|---|---|---|
| Part | Size 1 (1/4") | Size 2 (3/8" and 1/2") | Size 3 (3/4" and 1") | Purpose |
| Filter element 20 µm | VFK120 | VFK220 | VFK320 | filter, filter regulator, two-piece unit |
| Filter element 5 µm | VFK15 | VFK25 | VFK35 | finer filtration |
| Filter bowl | NFK1 | NFK2 | NFK3 | filter, filter regulator, two-piece unit |
| Lubricator bowl | NOK1 | NOK2 | NOK3 | lubricator, two-piece unit |
| Mounting bracket | UUK1 | UUK2 | UUK3 | regulator, filter regulator, two-piece unit |
| Lubricator sight dome | N-OZ | transparent cap of the lubricator | ||
| Pressure gauge 0–16 bar | MZ01-15 | MZ04-15 | regulator, filter regulator, two-piece unit | |
#showmore#
Which component to choose

Constant pressure
The DM pressure regulator reduces the pressure from as high as 18 bar to a value from 0 to 12 bar and holds it even when the line pressure fluctuates.

Clean air
The FWA filter with a 20 µm element uses centrifugal force to separate dirt, water and oil into the metal bowl.

Tool lubrication
The N lubricator adds oil to the air in proportion to the flow, so it lubricates even when little air is drawn.

Two in one
The FDM filter regulator combines a filter and a regulator in a single body. It saves space and one connection.

Complete treatment

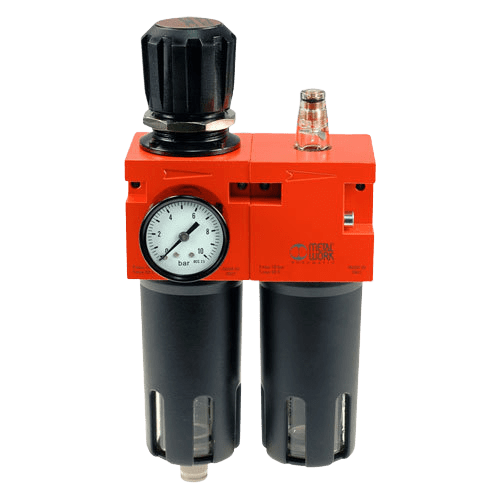

The WE two-piece unit combines a filter regulator with a lubricator and is connected as one piece.

Wall mounting
The UUK bracket holds a regulator, filter regulator or two-piece unit firmly on a wall. It is chosen by body size.
How to choose the size

Add up the air consumption of the tools and machines that will run at the same time and choose the size whose flow is higher. The flow rates of the individual components are in the tables above.
In sizes 2 and 3, both threads share the same body and the same flow, so choose the thread to match your piping. A two-piece unit passes less air than separate components, because the air flows through both the filter regulator and the lubricator.
Where I8 units fit
- Higher-pressure air lines. Where the compressor or the air line runs above 10 bar, units rated for 10 bar are not enough. The I8 range withstands up to 18 bar.
- Demanding environments. The metal body and bowl withstand rougher handling and conditions in which a plastic bowl would suffer.
- Production and lines. A filter and regulator in front of the machine keep the pressure constant and protect pneumatic valves and cylinders.
- For spraying. A filter and regulator without a lubricator deliver clean, oil-free air. For finer filtration there are industrial filters to ISO 8573.
Connection and mounting

Order of components
In the direction of air flow, the filter comes first, then the regulator and finally the lubricator. The filter protects the regulator from dirt, and the lubricator comes last so that the oil reaches the tool.
In the filter regulator and the two-piece unit, the order is set at the factory. Mount the filter and lubricator upright, with the bowl at the bottom.
Gauge ordered separately
The regulators have a G 1/8" pressure gauge port, size 3 a G 1/4" port. The 0–16 bar gauges from the spare parts table fit, and you will find others among the gauges for measuring pressure.
Connection
The inlet and outlet have a G female pipe thread. For a quick coupling, screw in a male-threaded nipple of the same size.
Maintenance

Condensate is released from the bowl of the filter and the filter regulator through the semi-automatic drain at the bottom of the bowl. You can see the level through the sight glass in the metal bowl; do not let it rise to the filter element.
Clean or replace the sintered bronze filter element when the filter starts to slow the air flow. There is a 20 µm element and a finer 5 µm element.
Fill the lubricator with oil for pneumatic tools, for example OLN-1. Always shut off the supply and release the pressure before opening the bowl.
Other air treatment unit ranges
The modular B2 units are another metal range rated for 18 bar, and for pressure up to 10 bar there are the basic A2 units. Small plastic units are the I3 range up to 13 bar and the miniature P2 range up to 12 bar, and for potentially explosive atmospheres there are FUTURA units with ATEX up to 16 bar. Precise pressure setting is provided by precision pressure regulators, and all ranges are shown in the overview of air treatment units.
Ventilek’s tip
Metal where plastic is not enough. In a workshop where things sometimes get close to the bowl, or on an air line above 10 bar, a metal unit is the safe choice. And the parts for each size can be replaced without dismantling the whole unit.
- What pressure can I8 units take?
- An inlet pressure of at most 18 bar at a working temperature of −10 to +50 °C.
- What is the pressure setting range?
- The regulator, filter regulator and two-piece unit set the outlet pressure from 0 to 12 bar.
- Is a pressure gauge included?
- No. For sizes 1/4" to 1/2", the MZ01-15 gauge (Ø 40 mm, G 1/8") fits; for 3/4" and 1", the MZ04-15 (Ø 63 mm, G 1/4").
- Is the bowl made of metal?
- Yes. The filter and lubricator bowls are made of metal and have a sight glass through which you can see the level of condensate or oil.
- How fine is the filtration?
- The sintered bronze element has a filter rating of 20 µm. For cleaner air there is a spare 5 µm element.
- How is condensate drained?
- Through the semi-automatic drain at the bottom of the filter bowl.
- What do sizes 1, 2 and 3 mean?
- The body size: 1 = 42 mm wide body and 1/4" thread, 2 = 60 mm and 3/8" or 1/2" thread, 3 = 80 mm and 3/4" or 1" thread. Spare parts are chosen by size.
- How is the lubricator adjusted?
- The oil dose is finely adjusted with a screw and changes in proportion to the flow, so the lubricator lubricates even when little air is drawn.
- What are the units made of?
- The bodies are made of zinc alloy (zamak), the bowls of metal with a sight glass and the filter elements of sintered bronze.
Inlet pressure up to 18 bar, working temperature −10 to +50 °C, medium compressed air. Metal bodies and bowls with sight glass, G 1/4" to G 1" female threads.
Bestsellers
Product sorting
List of products
Finer filter element VFK15 5 µm made of sintered bronze for metal I8 units with thread 1/4": FWA14, FDM14, WE14.
Metal I8 compressed air filter with a G 1/2" thread and a 20 µm sintered bronze element, inlet pressure up to 18 bar. Flow 4100 l/min, metal 45 cm³ bowl with sight glass and...
Replacement N-OZ sight dome for N lubricators and WE two-piece units of the metal I8 range with 1/4" to 3/4" threads and for lubricators of the plastic I3 range.
Mounting bracket UUK1 for metal I8 units of size 1 with thread 1/4": DM14, FDM14, WE14. Use it to fix the component to a wall or machine frame.
Mounting bracket UUK2 for metal I8 units of size 2 with thread 3/8" and 1/2": DM38, DM12, FDM38, FDM12, WE38, WE12. Use it to fix the component to a wall or machine frame.

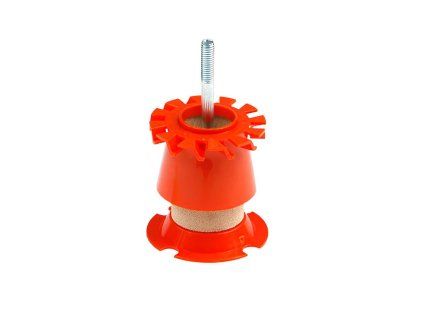

Spare filter element VFK220 20 µm made of sintered bronze for metal I8 units with thread 3/8" and 1/2": FWA38, FWA12, FDM38, FDM12, WE38, WE12.
