Metal air treatment unit WE38 up to 18 bar - G 3/8" G 3/8" · up to 18 bar · 20 µm filtration · 2200 l/min · 245 × 120 mm
Code: WE38
Related products
Product detailed description

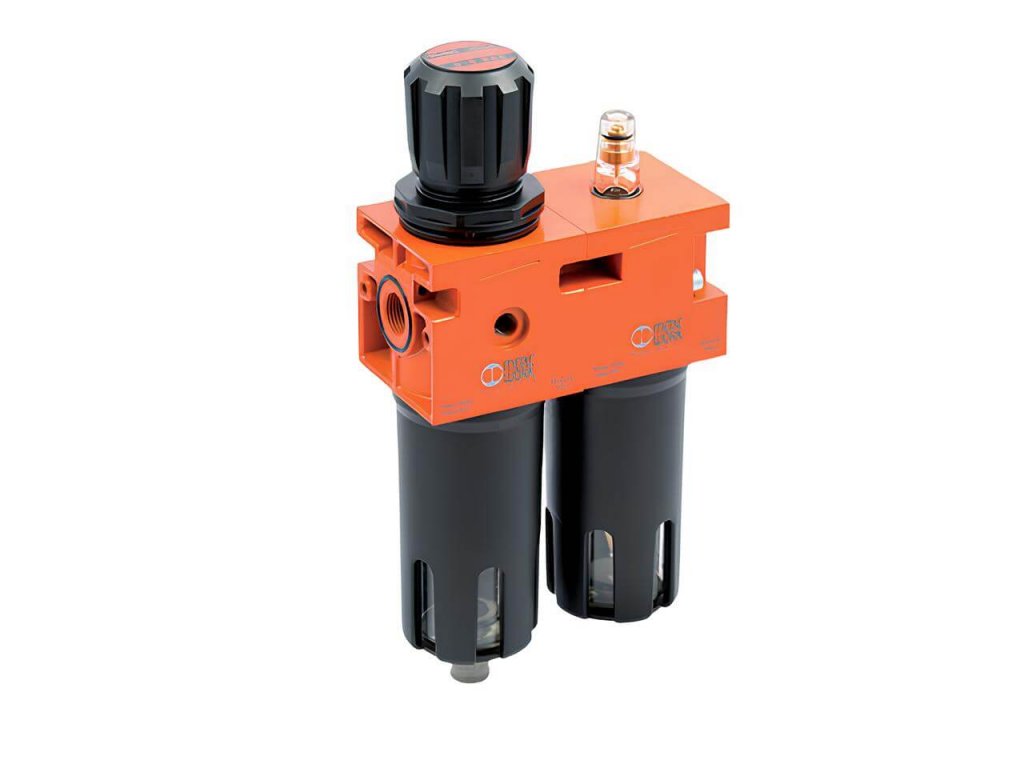

Complete air treatment with a G 3/8" thread: a pressure regulator with a 20 µm filter and a lubricator joined into one 245 × 120 mm assembly. It cleans the air, reduces the pressure from as high as 18 bar to 0 to 12 bar and adds oil. Flow 2200 l/min.
Specifications
| WE38 — specifications | |
|---|---|
| Type | Two-piece unit: filter regulator and lubricator |
| Connection | G 3/8" female thread |
| Body size | 2 (body width 60 mm) |
| Inlet pressure | up to 18 bar |
| Pressure setting range | 0 to 12 bar |
| Setting lock | knob lock |
| Flow | 2200 l/min |
| Height × width | 245 × 120 mm |
| Weight | 2.0 kg |
| Filter rating | 20 µm |
| Spare filter element | 20 µm VFK220, finer 5 µm VFK25 |
| Bowl volume | filter 45 cm³, lubricator 150 cm³ |
| Condensate drain | semi-automatic |
| Pressure gauge | not included, G 1/8" port |
| Material | zinc alloy, metal bowl with sight glass |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It suits tools and actuators that need clean, lubricated air at a constant pressure, and it is connected as one piece. The G 3/8" thread is suitable for a workstation with several tools or a small workshop.
Without a lubricator, FDM38 is enough. The spare filter element is VFK220, the filter bowl NFK2, the lubricator bowl NOK2 and the pressure gauge MZ01-15.
Ventilek’s tip
Order the bracket separately. A unit firmly fixed to the wall does not move during operation and the joints do not work loose.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Complete unit |
| Pressure: | 18 bar |
| Dimensions: | 245 × 120 mm |
| Filtering ability: | 20 µm |
| Filter insert: | Replacement insert 20 µm (VFK220) |
| Medium: | Compressed air |
| Vessel volume: | filter - 45, oil - 150 cc |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 2,200 l/min |
| Regulatory range: | 0 - 12 bar |
| Thread: | G 3/8" |
| Thread for manometer: | 1/8" |
| In stock: | External warehouse |
