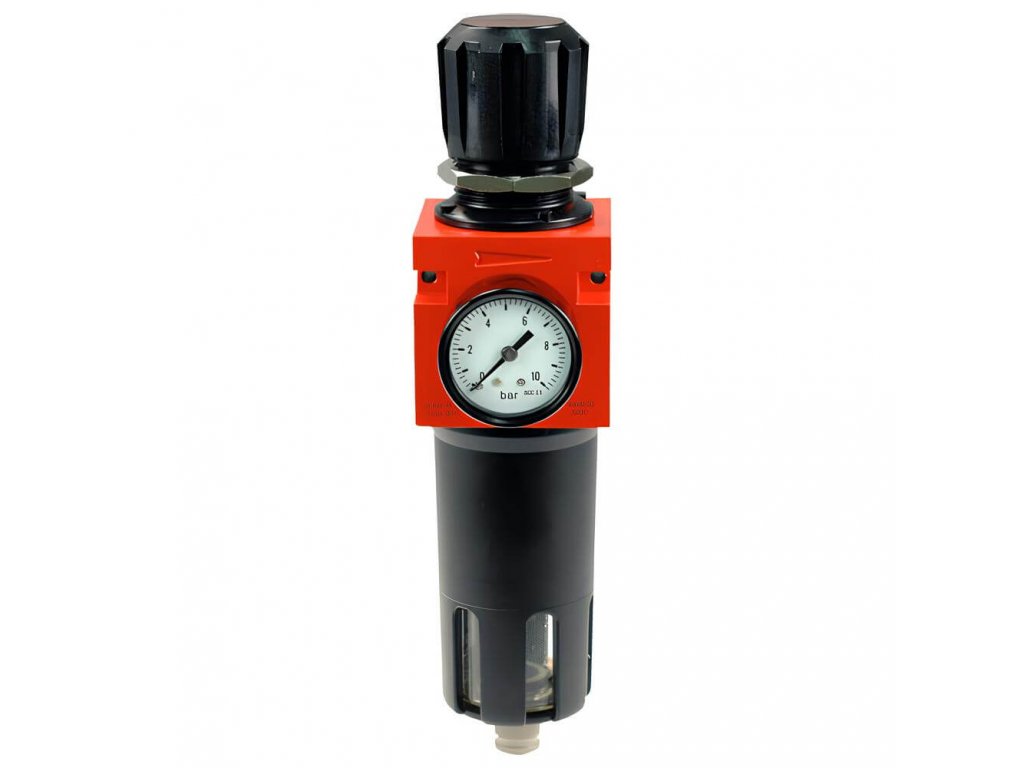

Metal filter regulator FDM38 up to 18 bar - G 3/8" G 3/8" · up to 18 bar · 20 µm filtration · 2500 l/min · 245 × 60 mm
Code: FDM38
Related products
Product detailed description
A 20 µm filter and a pressure regulator in one metal body with a G 3/8" thread. It first separates dirt, water and oil into a 45 cm³ metal bowl, then reduces the pressure from as high as 18 bar to a value from 0 to 12 bar. Flow 2500 l/min.
Specifications
| FDM38 — specifications | |
|---|---|
| Type | Filter regulator |
| Connection | G 3/8" female thread |
| Body size | 2 (body width 60 mm) |
| Inlet pressure | up to 18 bar |
| Pressure setting range | 0 to 12 bar |
| Setting lock | knob lock |
| Flow | 2500 l/min |
| Height × width | 245 × 60 mm |
| Weight | 1.0 kg |
| Filter rating | 20 µm |
| Spare filter element | 20 µm VFK220, finer 5 µm VFK25 |
| Bowl volume | 45 cm³ |
| Condensate drain | semi-automatic |
| Pressure gauge | not included, G 1/8" port |
| Material | zinc alloy, metal bowl with sight glass |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It saves space and one connection where you need clean air at a constant pressure without lubrication, for example for spraying. The G 3/8" thread is suitable for a workstation with several tools or a small workshop.
With the lubricator N38 it forms complete air treatment; the ready-made unit is WE38. The spare filter element is VFK220, the bowl NFK2 and the pressure gauge MZ01-15.
Ventilek’s tip
The sight glass keeps watch for you. You can see the condensate level in the metal bowl through the window. Drain it before it rises to the filter element.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Pressure regulator with filter |
| Pressure: | 18 bar |
| Dimensions: | 245 × 60 mm |
| Filtering ability: | 20 µm |
| Filter insert: | Replacement insert 20 µm (VFK220) |
| Medium: | Compressed air |
| Vessel volume: | 45 cc |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 2,500 l/min |
| Regulatory range: | 0 - 12 bar |
| Thread: | G 3/8" |
| Thread for manometer: | 1/8" |
| In stock: | External warehouse |
