Mounting bracket UUK2 for I8 units 3/8" and 1/2" Mounting bracket · for I8 3/8" and 1/2"

Code: UUK2
Original parts
Not rated Rating details
€5,98 –5 %

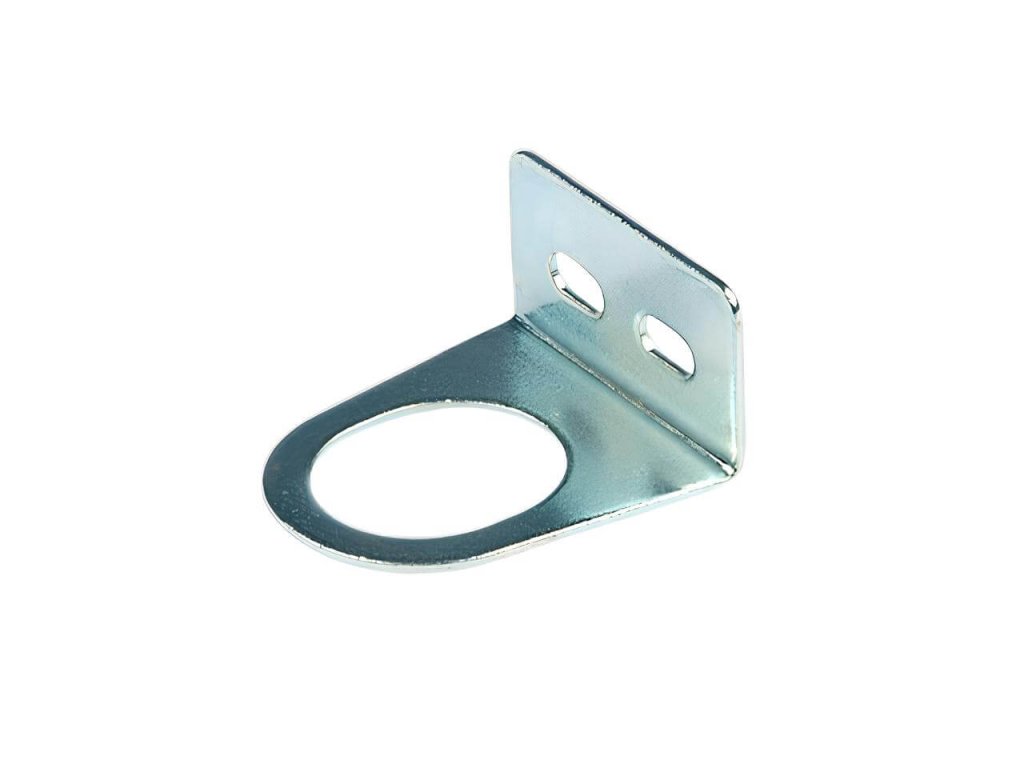

Upevňovací úhelník UUK2 s otvorem pro regulátor a otvory pro šrouby
€5,98 –5 % €5,68 / pcs €4,69 excl. VAT Measure price:
Stock (11 pcs)
Delivery to:
25.11.2026
Delivery options

Mounting bracket UUK2 for metal I8 units of size 2 with thread 3/8" and 1/2": DM38, DM12, FDM38, FDM12, WE38, WE12. Use it to fix the component to a wall or machine frame.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK excl. VAT
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 14 days
Return of goods within 14 days
Completely at our expense

Product detailed description

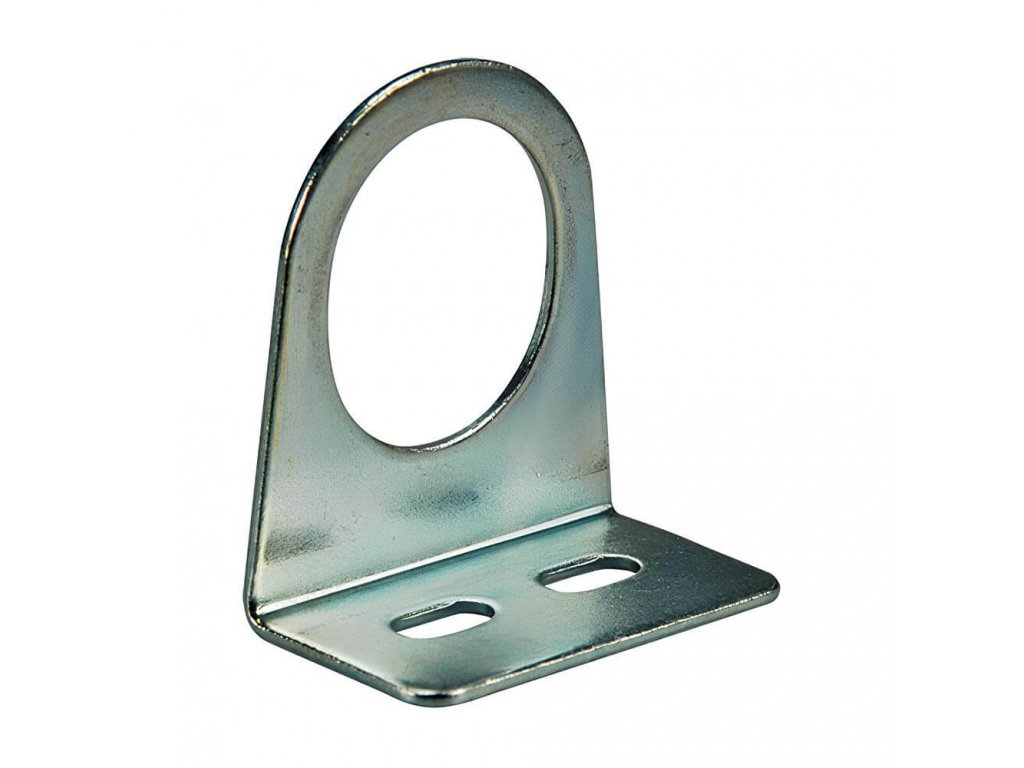

Wall mountingMounting bracket UUK2 with an opening for the regulator and screw holes

A size 2 mounting bracket for fixing the pressure regulator, filter regulator and two-piece unit of the I8 range with thread 3/8" and 1/2" to a wall or machine frame.

3/8" and 1/2"size 2
DMregulator
FDMfilter regulator
WEtwo-piece unit

Specifications

UUK2 — specifications
TypeMounting bracket
Body size2 (body width 60 mm)
For thread3/8" and 1/2"
For componentsDM38, DM12, FDM38, FDM12, WE38, WE12

What it is for

The bracket holds the component firmly in place, so the hoses and joints do not carry its weight and the regulator does not move when you adjust it.

It fits the components DM38, DM12, FDM38, FDM12, WE38, WE12.

Ventilek’s tip

Screws into wall plugs. Fix the bracket to the wall with screws and wall plugs. The regulator then stays put when you adjust it.

Additional parameters

Category: Robust metal air treatment units I8 up to 18 bar
Version: Accessories
In stock: In store, External warehouse

Product rating

Be the first who will post an article to this item!

Do not fill out this field

How would you rate this product? Choose 1 to 5 stars, where 1 is the worst and 5 is the best rating.

Security check

By submitting your review you agree to the privacy policy

Metal Work is an Italian pneumatics manufacturer from Concesio near Brescia, founded in 1967. It makes actuators and handling components, valves and control systems, compressed air treatment, fittings and accessories. More than 600 people work in its Concesio plant, and the Metal Work Group comprises 61 companies worldwide.

We offer Metal Work air treatment in two series: the compact plastic I3 up to 13 bar and the robust metal I8 up to 18 bar. Both include a pressure regulator, filter, lubricator, filter regulator and two-piece unit, plus spare elements, bowls and brackets.

Metal Work filter, filter regulator and air treatment units of the I3 and I8 seriesFrom Italy since 1967
18 barinlet pressure of the metal I8 series
13 barinlet pressure of the plastic I3 series
20 µmfilter element, finer 5 µm also available
1967year Metal Work was founded

Two Metal Work air treatment series

Metal Work WE14P two-piece air treatment unit, I3 series

I3 series — plastic up to 13 bar

Slim air treatment for tight spaces. A plastic body only 40 mm wide with G 1/8″ or G 1/4″ thread.

  • pressure setting 0 to 8 bar
  • 20 µm filter with semi-automatic drain
  • five elements sharing the same spare parts
View I3 series
Metal Work WE12 metal air treatment unit, I8 series

I8 series — metal up to 18 bar

Robust treatment for higher pressure. Metal body and metal bowl with sight glass in three sizes.

  • pressure setting 0 to 12 bar
  • thread G 1/4″ to 1″
  • filter flow up to 11,000 l/min
View I8 series

Need a unit up to 10 bar, a stainless one or another size? All air treatment units, filters, regulators and lubricators are in one category.

All treatment units

I3 and I8 series side by side

Element, thread and flow
ElementI3 series (plastic)I8 series (metal)
DM pressure regulatorG 1/8″ and 1/4″, 600 l/minG 1/4″–1″, 650–4,500 l/min
FWA filter 20 µmG 1/8″ and 1/4″, 1,200 l/minG 1/4″–1″, 1,720–11,000 l/min
N lubricatorG 1/8″ and 1/4″, 710 l/minG 1/4″–1″, 1,100–16,000 l/min
FDM filter regulatorG 1/8″ and 1/4″, 600 l/minG 1/4″–1/2″, 700–2,500 l/min
WE two-piece unitG 1/8″ and 1/4″, 260 l/minG 1/4″–1/2″, 500–2,200 l/min
Inlet pressure and settingup to 13 bar, 0–8 barup to 18 bar, 0–12 bar
Element width40 mm42, 60 and 80 mm

Flow is the maximum air flow through the element in litres per minute. The working temperature of both series is −10 to +50 °C.

How to choose and connect air treatment

1. Pressure

If your air line runs above 13 bar, choose the metal I8 series rated to 18 bar. For lower pressure and little space, the plastic I3 series is enough.

2. Flow

Add up the air consumption of everything running at the same time and choose a size with a higher flow. A two-piece unit passes less air than separate elements.

3. Order

In the direction of flow, the filter comes first, then the regulator and finally the lubricator. Mount the filter and lubricator vertically, bowl down.

4. Maintenance

The drain empties condensate from the bowl. Replace a clogged filter element with a new 20 µm one or a finer 5 µm one.

Frequently asked questions

Is a pressure gauge included with the regulator?
No, for regulators, filter regulators and units of both series the gauge is ordered separately. A 0–10 bar gauge suits the I3 series, a 0–16 bar gauge the I8 series.
Which spare parts are there for the units?
20 and 5 µm filter elements, filter and lubricator bowls, an oil sight cap and mounting brackets. For the I3 series the parts are the same for both threads, for I8 they are chosen by body size.
Should I take a G 1/8″ or G 1/4″ thread?
In the I3 series both threads have the same body, flow and spare parts. G 1/8″ suits thin tubing and small devices, G 1/4″ common quick couplings and tool hoses.
Is the unit suitable for spray painting?
Yes, but without the lubricator: the filter and regulator deliver clean, oil-free air. For finer filtration there are industrial filters to ISO 8573.
Which certificates does Metal Work hold?
Metal Work has held ISO 9001 quality certification since 1992 (DEKRA), ISO 14001 environmental certification since 2000 and ISO 45001 since 2019.

Dimensions, flow rates and spare parts of both series are listed in the tables in their categories. Metal Work is a brand of the Italian company Metal Work S.p.A.
