Metal filter regulator FDM12 up to 18 bar - G 1/2" G 1/2" · up to 18 bar · 20 µm filtration · 2500 l/min · 245 × 60 mm
Code: FDM12
Related products
Product detailed description

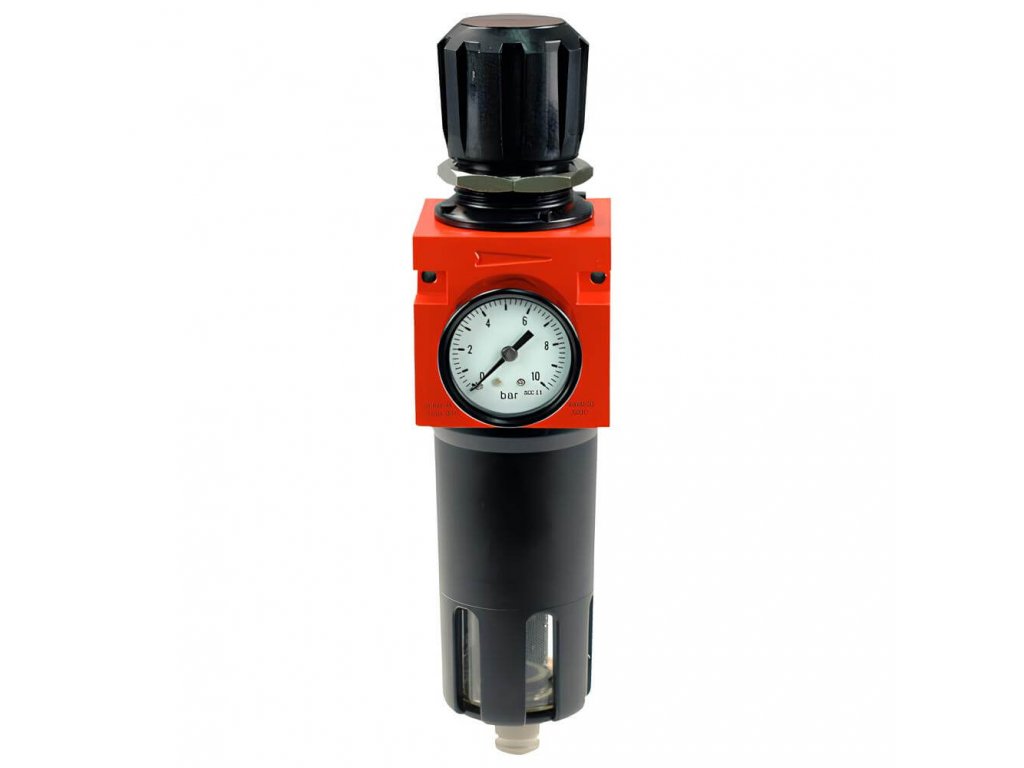

A 20 µm filter and a pressure regulator in one metal body with a G 1/2" thread. It first separates dirt, water and oil into a 45 cm³ metal bowl, then reduces the pressure from as high as 18 bar to a value from 0 to 12 bar. Flow 2500 l/min.
Specifications
| FDM12 — specifications | |
|---|---|
| Type | Filter regulator |
| Connection | G 1/2" female thread |
| Body size | 2 (body width 60 mm) |
| Inlet pressure | up to 18 bar |
| Pressure setting range | 0 to 12 bar |
| Setting lock | knob lock |
| Flow | 2500 l/min |
| Height × width | 245 × 60 mm |
| Weight | 1.0 kg |
| Filter rating | 20 µm |
| Spare filter element | 20 µm VFK220, finer 5 µm VFK25 |
| Bowl volume | 45 cm³ |
| Condensate drain | semi-automatic |
| Pressure gauge | not included, G 1/8" port |
| Material | zinc alloy, metal bowl with sight glass |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It saves space and one connection where you need clean air at a constant pressure without lubrication, for example for spraying. The G 1/2" thread is suitable for a workshop with several workstations or a production line.
With the lubricator N12 it forms complete air treatment; the ready-made unit is WE12. The spare filter element is VFK220, the bowl NFK2 and the pressure gauge MZ01-15.
Ventilek’s tip
Upright, bowl down. Only then does the condensate run down to the bottom of the bowl instead of being carried on into the air line.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Pressure regulator with filter |
| Pressure: | 18 bar |
| Dimensions: | 245 × 60 mm |
| Filtering ability: | 20 µm |
| Filter insert: | Replacement insert 20 µm (VFK220) |
| Medium: | Compressed air |
| Vessel volume: | 45 cc |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 2,500 l/min |
| Regulatory range: | 0 - 12 bar |
| Thread: | G 1/2" |
| Thread for manometer: | 1/8" |
| In stock: | External warehouse |
