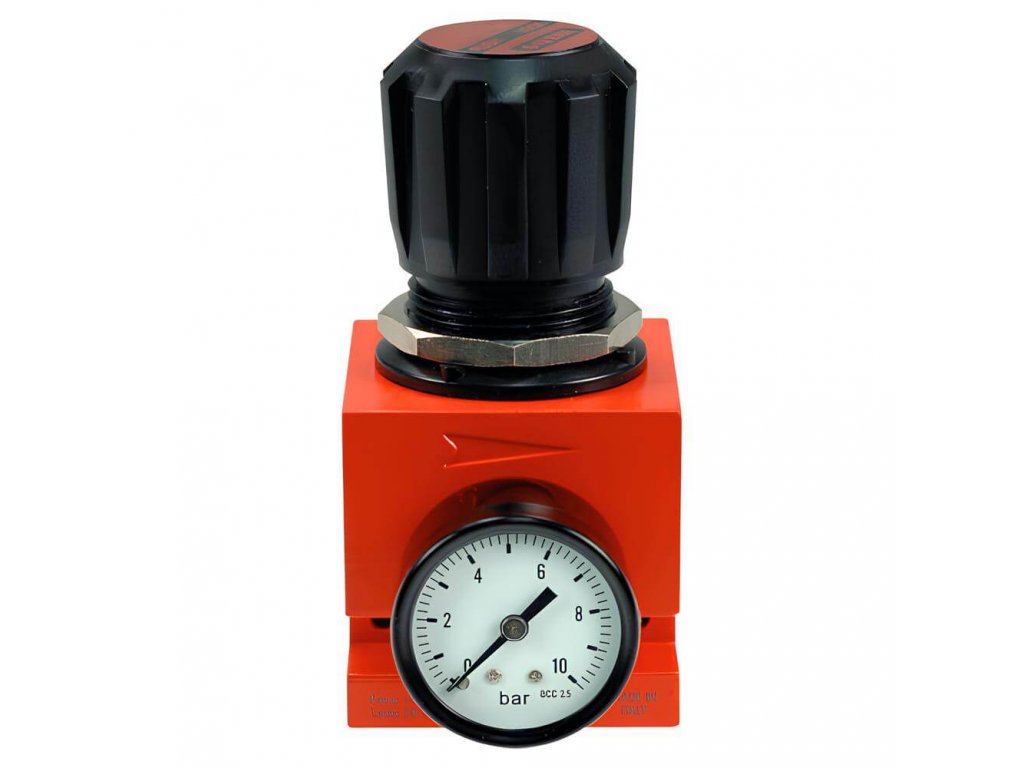

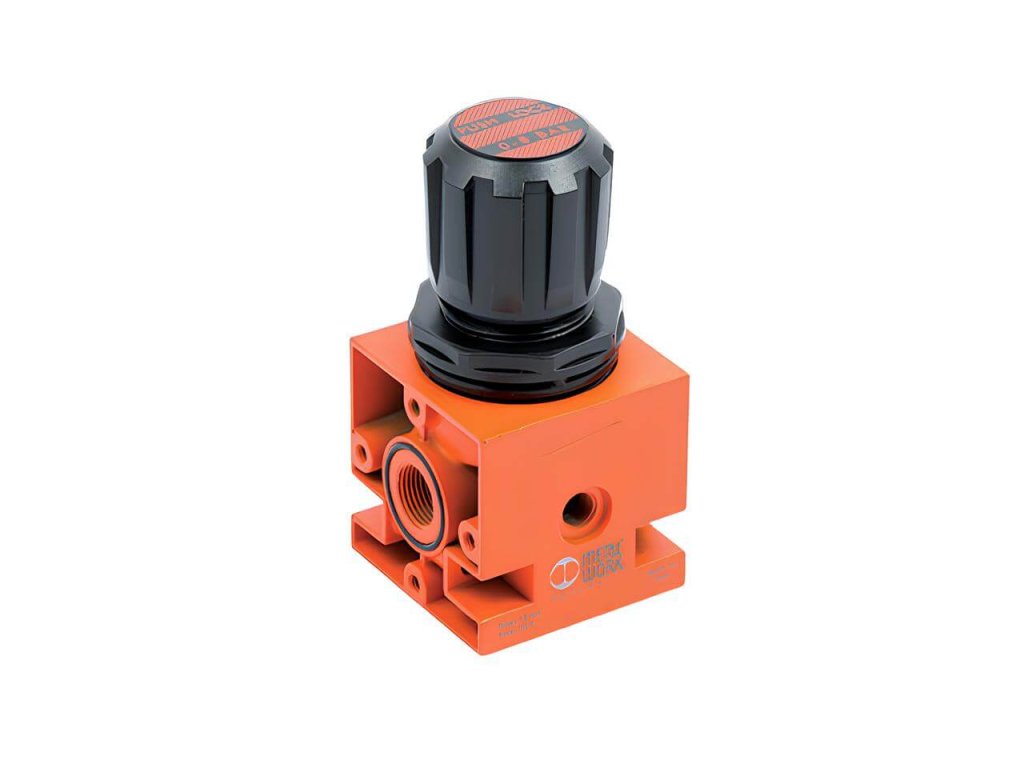

Metal pressure regulator DM38 up to 18 bar - G 3/8" G 3/8" · up to 18 bar · 2500 l/min · 130 × 60 mm
Code: DM38
Related products
Product detailed description
A metal pressure regulator with a G 3/8" thread and a flow of 2500 l/min. It reduces an inlet pressure of up to 18 bar to a value from 0 to 12 bar set with the knob and holds it even when the line pressure fluctuates.
Specifications
| DM38 — specifications | |
|---|---|
| Type | Pressure regulator |
| Connection | G 3/8" female thread |
| Body size | 2 (body width 60 mm) |
| Inlet pressure | up to 18 bar |
| Pressure setting range | 0 to 12 bar |
| Setting lock | knob lock |
| Flow | 2500 l/min |
| Height × width | 130 × 60 mm |
| Pressure gauge | not included, G 1/8" port |
| Material | zinc alloy |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It suits places where the air line pressure is higher than a tool or machine can take and where standard units rated for 10 bar are not enough. The G 3/8" thread is suitable for a workstation with several tools or a small workshop.
The pressure gauge is not included; MZ01-15 fits. You can fix the regulator to a wall with the bracket UUK2. The filter regulator in one body is FDM38. The same body with a G 1/2" thread is DM12.
Ventilek’s tip
A filter goes before the regulator. Dirt from the air line damages the regulator seat. If you have no filter, go straight for a filter regulator.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Pressure regulator |
| Pressure: | 18 bar |
| Dimensions: | 130 × 60 mm |
| Medium: | Compressed air |
| Working temperature: | -10 / 50 °C |
| Flow: | 2,500 l/min |
| Regulatory range: | 0 - 12 bar |
| Thread: | G 3/8" |
| Thread for manometer: | 1/8" |
| In stock: | External warehouse |
