Compact plastic compressed air treatment units I3 up to 13 bar

Compact I3 compressed air treatment units have a plastic body only 40 mm wide and withstand an inlet pressure of up to 13 bar. They come with a G 1/8" or G 1/4" thread and suit places where there is little room for air treatment.
The range comprises a pressure regulator, a 20 µm filter, a lubricator, a filter regulator and a two-piece air treatment unit. The regulators have a knob lock for the set pressure, and the filters have a semi-automatic condensate drain and transparent bowls.
Five components, two threads
Each component comes with both a G 1/8" and a G 1/4" thread. Both threads share the same body and the same flow. Dimensions are height × width.
Flow is the maximum air flow through the component in litres per minute. The inlet pressure of all components is at most 13 bar, the working temperature −10 to +50 °C.
Spare parts and accessories
The parts are shared by both sizes, 1/8" and 1/4". The pressure gauge for the regulators is ordered separately.
| I3 spare parts and accessories | ||
|---|---|---|
| Order number | Part | For components |
| VFP20 | Filter element 20 µm | filter, filter regulator, two-piece unit |
| VFP5 | Filter element 5 µm (finer) | filter, filter regulator, two-piece unit |
| NFP | Filter bowl | filter, filter regulator, two-piece unit |
| NOP | Lubricator bowl | lubricator, two-piece unit |
| N-OZ | Lubricator sight dome | lubricator |
| UUP | Mounting bracket | regulator, filter regulator, two-piece unit |
| MZ01-14 | Pressure gauge 0–10 bar, Ø 40 mm, G 1/8" | regulator, filter regulator, two-piece unit |
#showmore#
Which component to choose

Just reduce the pressure
The DM pressure regulator reduces the line pressure to a value from 0 to 8 bar. The knob lock secures the setting so that it cannot shift by itself.

Clean air
The FWA filter with a 20 µm element uses centrifugal force to separate dirt and condensate, which you release through the semi-automatic drain.

Tool lubrication
The N lubricator adds oil mist to the air for tools and actuators. The oil dose is continuously adjustable with a screw.

Two in one
The FDM filter regulator combines a filter and a regulator in a single body. It saves space and one connection.

Complete treatment

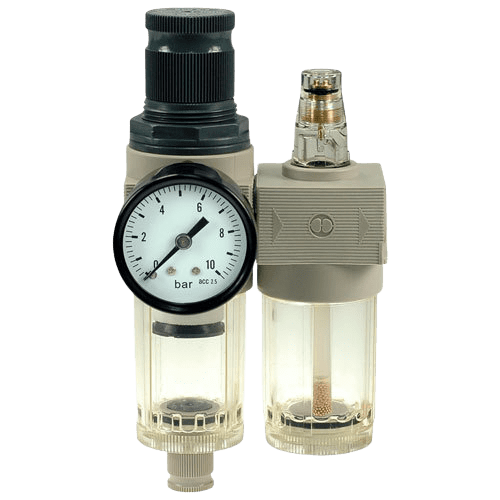

The WE two-piece unit combines a filter regulator with a lubricator. The whole air treatment is only 80 mm wide.

Wall mounting
The UUP bracket holds a regulator, filter regulator or two-piece unit firmly on a wall or machine frame.
G 1/8" or G 1/4"?
Both threads share the same body, the same flow and the same spare parts. Only the connection differs: G 1/8" suits thin tubing and small instruments, G 1/4" standard quick couplings and hoses for pneumatic tools.
If the flow of one component is not enough, add up the consumption of everything that will run at the same time. A two-piece unit passes less air than separate components, because the air flows through both the filter regulator and the lubricator.
Where I3 units fit
- Laboratory, measuring and control equipment. Small flows and a constant pressure where a larger unit will not fit.
- Next to a small compressor. A unit at the compressor removes water, sets the pressure and adds oil without taking up space.
- Inside machines and fixtures. The narrow plastic body fits inside a machine housing or on a small panel.
- For spraying. A filter and regulator without a lubricator deliver clean, oil-free air. For finer filtration there are industrial filters to ISO 8573.
Connection and mounting

Order of components
In the direction of air flow, the filter comes first, then the regulator and finally the lubricator. The filter protects the regulator from dirt, and the lubricator comes last so that the oil reaches the tool.
In the filter regulator and the two-piece unit, the order is set at the factory. Mount the filter and lubricator upright, with the bowl at the bottom.
Gauge ordered separately
The regulator, filter regulator and two-piece unit have a G 1/8" pressure gauge port. A 0–10 bar gauge with a 40 mm diameter from the spare parts table fits, and others are among the 40 mm pressure gauges.
Connection
The inlet and outlet have a G 1/8" or G 1/4" female pipe thread. For a quick coupling, screw in a male-threaded nipple of the same size.
Maintenance
The condensate drain at the bottom of the filter bowl has three positions. In the middle position it works semi-automatically: it releases the condensate when the bowl is not under pressure. Press it to release the condensate even under pressure, or turn it to close the drain completely.
Clean or replace the filter element when the filter starts to slow the air flow. The spare is a 20 µm element; for cleaner air there is a finer 5 µm element.
Fill the lubricator with oil for pneumatic tools, for example OLN-1, before pressurising it. Set the dose with the screw to roughly one drop per 300 to 600 litres of air.
Other air treatment unit ranges
The miniature P2 units up to 12 bar are similarly small. For higher flows there are the basic A2 units up to 10 bar and the metal ranges B2 up to 18 bar and I8 up to 18 bar, and for potentially explosive atmospheres the FUTURA units with ATEX up to 16 bar. Precise pressure setting is provided by precision pressure regulators, and all ranges are shown in the overview of air treatment units.
Ventilek’s tip
Small body, complete treatment. Even in a tight space at a machine or a small compressor, you can remove water, set the pressure and add oil. Just order a pressure gauge as well, so that you can see the pressure.
- What pressure can I3 units take?
- An inlet pressure of at most 13 bar at a working temperature of −10 to +50 °C.
- What is the pressure setting range?
- The regulator, filter regulator and two-piece unit set the outlet pressure from 0 to 8 bar.
- Is a pressure gauge included?
- No. The regulators have a G 1/8" gauge port; the MZ01-14 gauge with a 0–10 bar range and a 40 mm diameter fits.
- What is the difference between G 1/8" and G 1/4"?
- Only the connection thread. The body, flow and spare parts are the same.
- How fine is the filtration?
- The element has a filter rating of 20 µm. For cleaner air there is a spare 5 µm element.
- How is condensate drained?
- Through the semi-automatic drain at the bottom of the bowl. Press it to release the condensate even under pressure.
- How much oil does the lubricator dose?
- The dose is continuously adjustable with a screw. Roughly one drop per 300 to 600 litres of air is recommended.
- How do I mount the unit?
- Fix the regulator, filter regulator or two-piece unit to a wall or machine frame with the UUP bracket.
- What are the units made of?
- The bodies are plastic and the bowls transparent, so you can see the level of condensate and oil.
Inlet pressure up to 13 bar, working temperature −10 to +50 °C, medium compressed air. Plastic bodies 40 mm wide, transparent bowls, G 1/8" and G 1/4" female threads.
