Miniature compressed air treatment units P2 up to 12 bar

Miniature P2 compressed air treatment units with a G 1/4" thread for working pressure up to 12 bar. Each component is only 40 mm wide, so it fits inside a machine housing, under a workbench or next to a small compressor.
The range comprises a pressure regulator, a 20 µm filter, a lubricator, a filter regulator and a two-piece unit. The bodies are made of technopolymer and the working temperature is +5 to +50 °C. The picture shows them to true relative scale, from the 77 mm high regulator to the 159 mm high unit.
Five components of the P2 range
The components differ in function, flow and height. All of them are 40 mm wide with a G 1/4" thread; the two-piece unit is twice as wide.
| P2 air treatment units — G 1/4", up to 12 bar | ||||||
|---|---|---|---|---|---|---|
| Order number | Component | Flow | Dimensions L × W × H | Weight | Filtration | Gauge port |
| P2R-14 | Pressure regulator | 600 l/min | 40 × 40 × 77 mm | 112 g | – | G 1/8" |
| P2F-14 | Filter | 1200 l/min | 40 × 40 × 106 mm | 78 g | 20 µm | – |
| P2L-14 | Lubricator | 710 l/min | 40 × 40 × 120 mm | 88 g | – | – |
| P2S-14 | Filter regulator | 600 l/min | 40 × 40 × 159 mm | 150 g | 20 µm | G 1/8" |
| P2U-14 | Two-piece unit: filter regulator and lubricator | 260 l/min | 80 × 40 × 159 mm | 246 g | 20 µm | G 1/8" |
| B2UR-1 | Mounting bracket | – | – | 40 g | – | – |
Flow is the maximum air flow through the component in litres per minute; dimensions are length × width × height. The pressure gauge shown in the photos is not included and is ordered separately.
#showmore#
Which component to choose

Just reduce the pressure

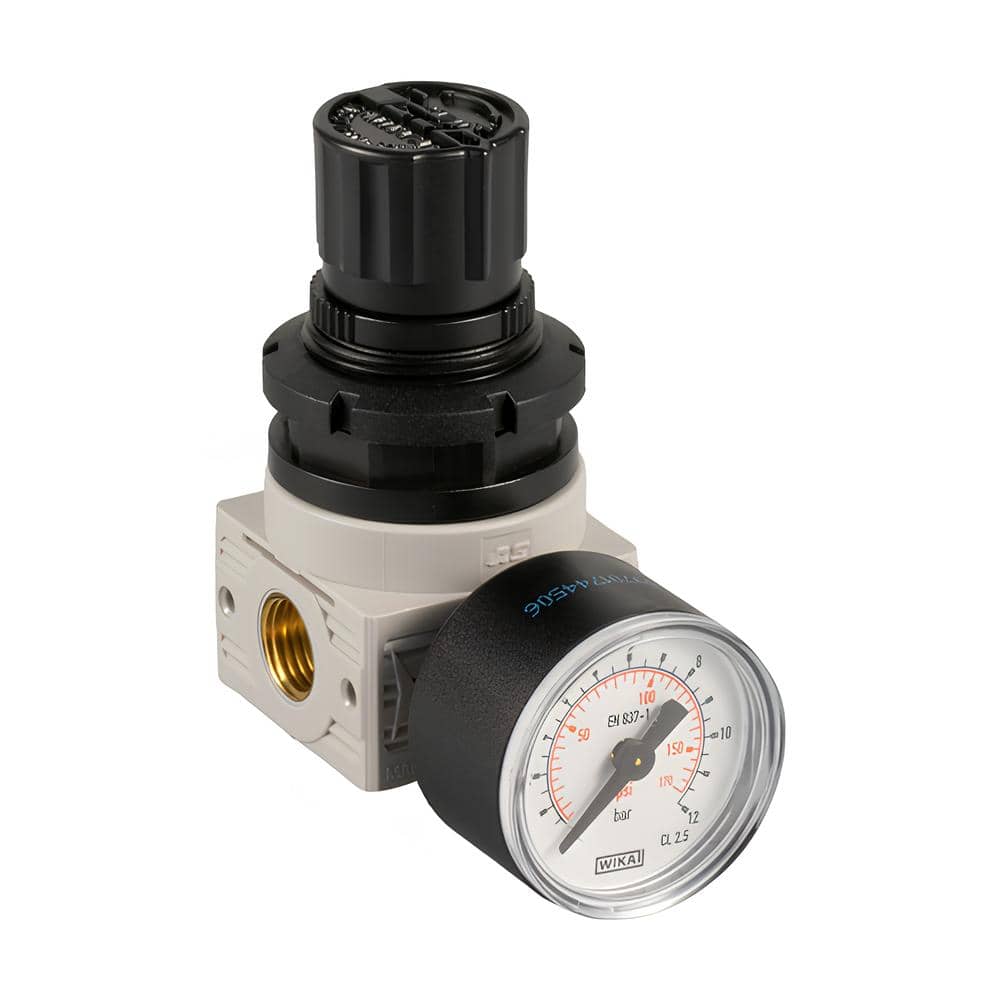

The P2R-14 pressure regulator reduces the pressure from the air line or compressor to the value your tool needs. It is set with the knob on top, anywhere from 0 to 12 bar.

Remove water and dirt

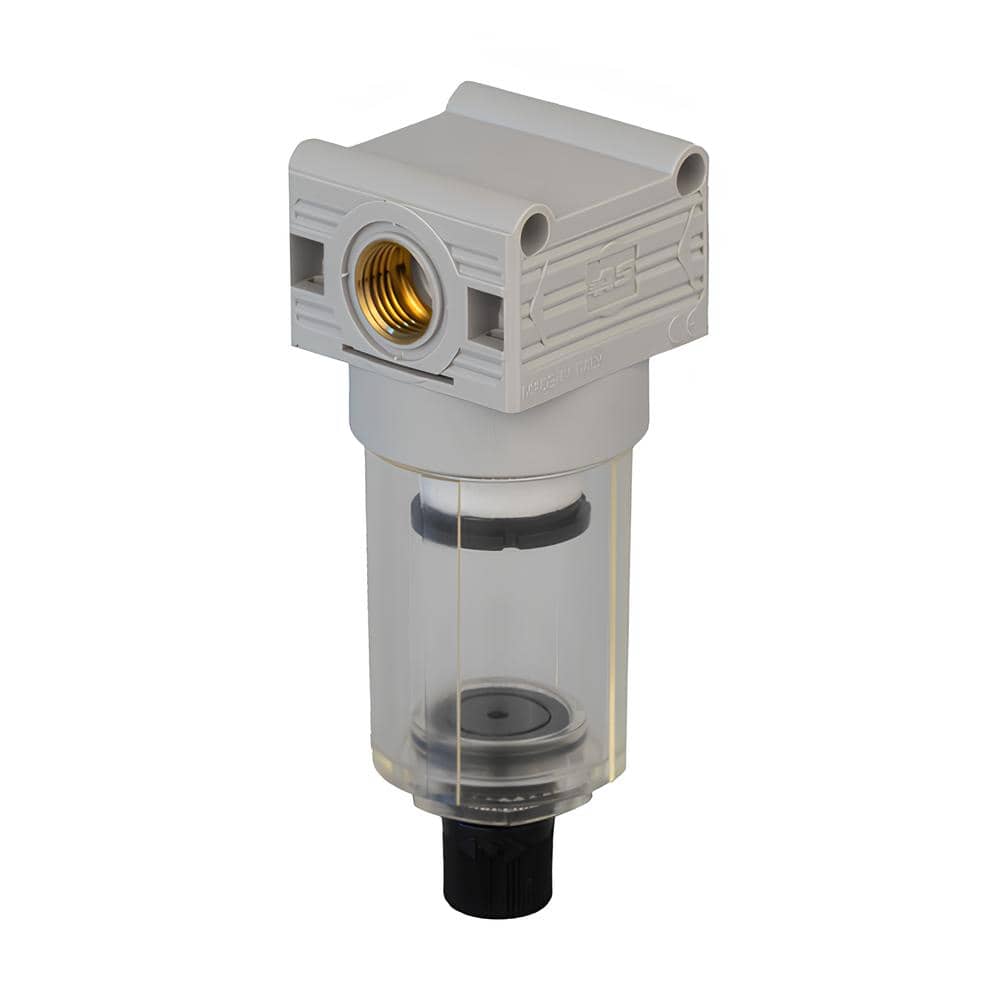

The P2F-14 filter with a 20 µm rating removes coarse particles, water and oil. Condensate is released from the bowl through the manual drain.

Lubricate tools

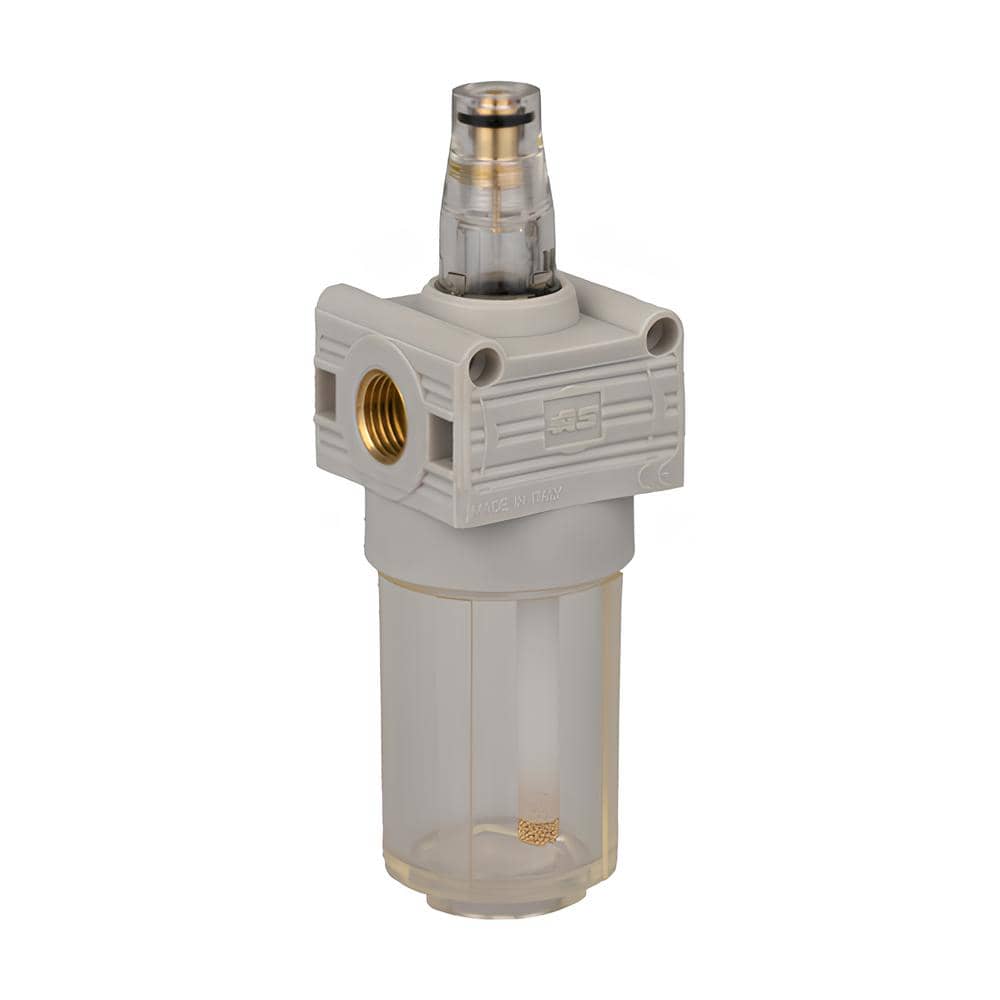

The P2L-14 lubricator adds oil mist to the air for pneumatic tools and actuators. The oil dose is set with the screw on top.

Filter and regulator in one

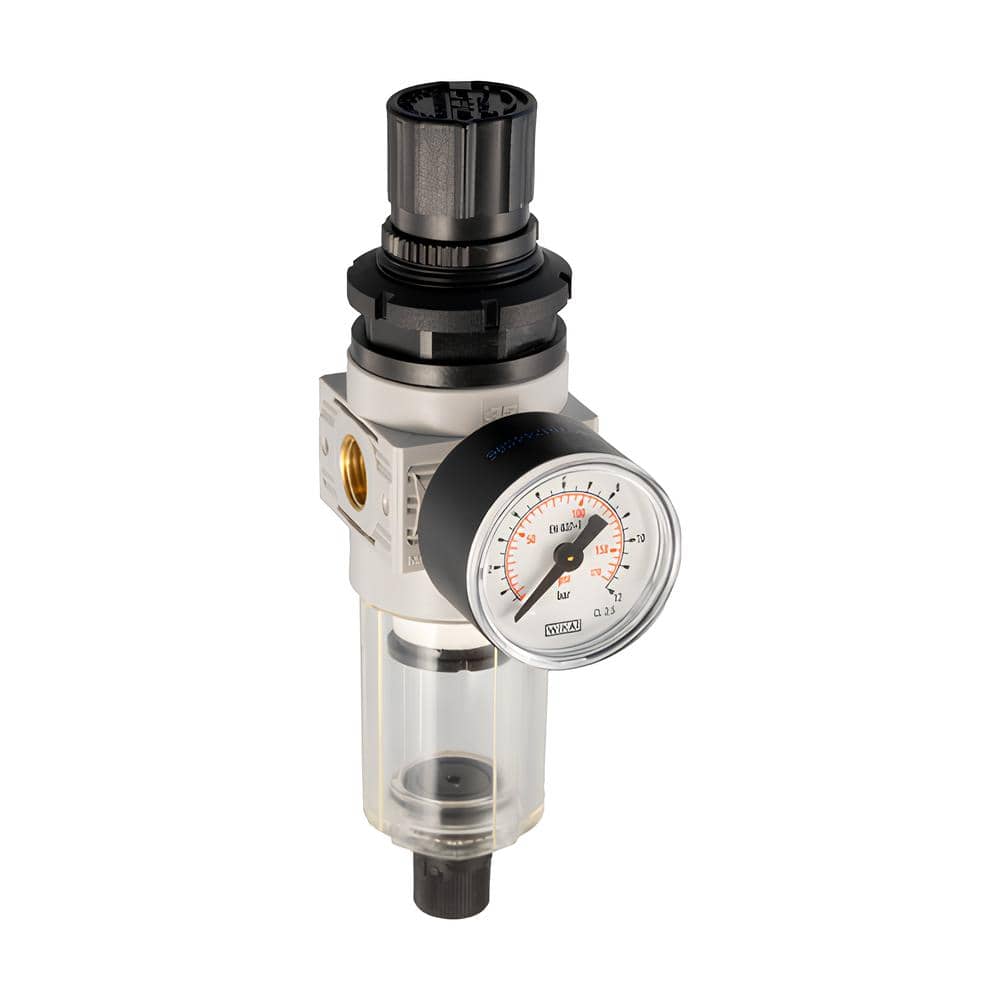

The P2S-14 filter regulator combines two devices in a single body. It saves space and one connection.

Complete treatment for one tool

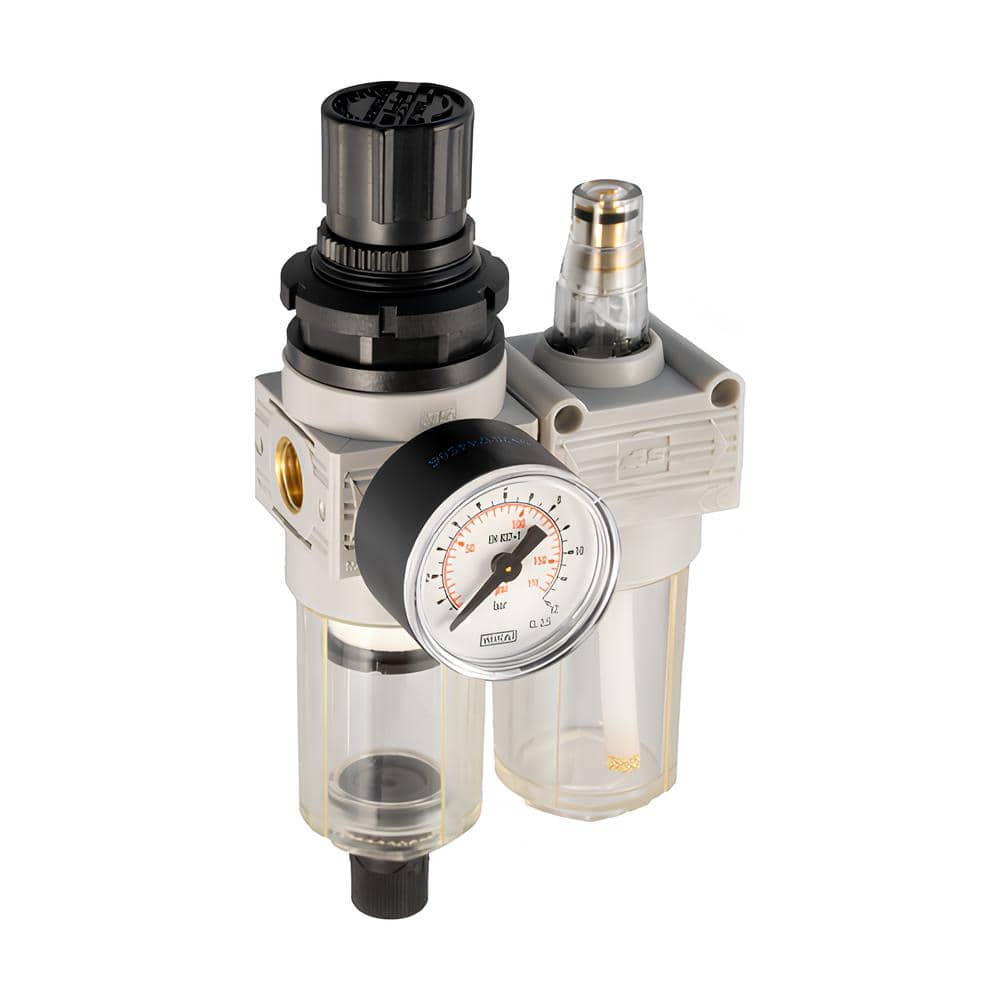

The P2U-14 two-piece unit combines a filter regulator with a lubricator. It is 80 mm wide and weighs 246 g.

Wall mounting

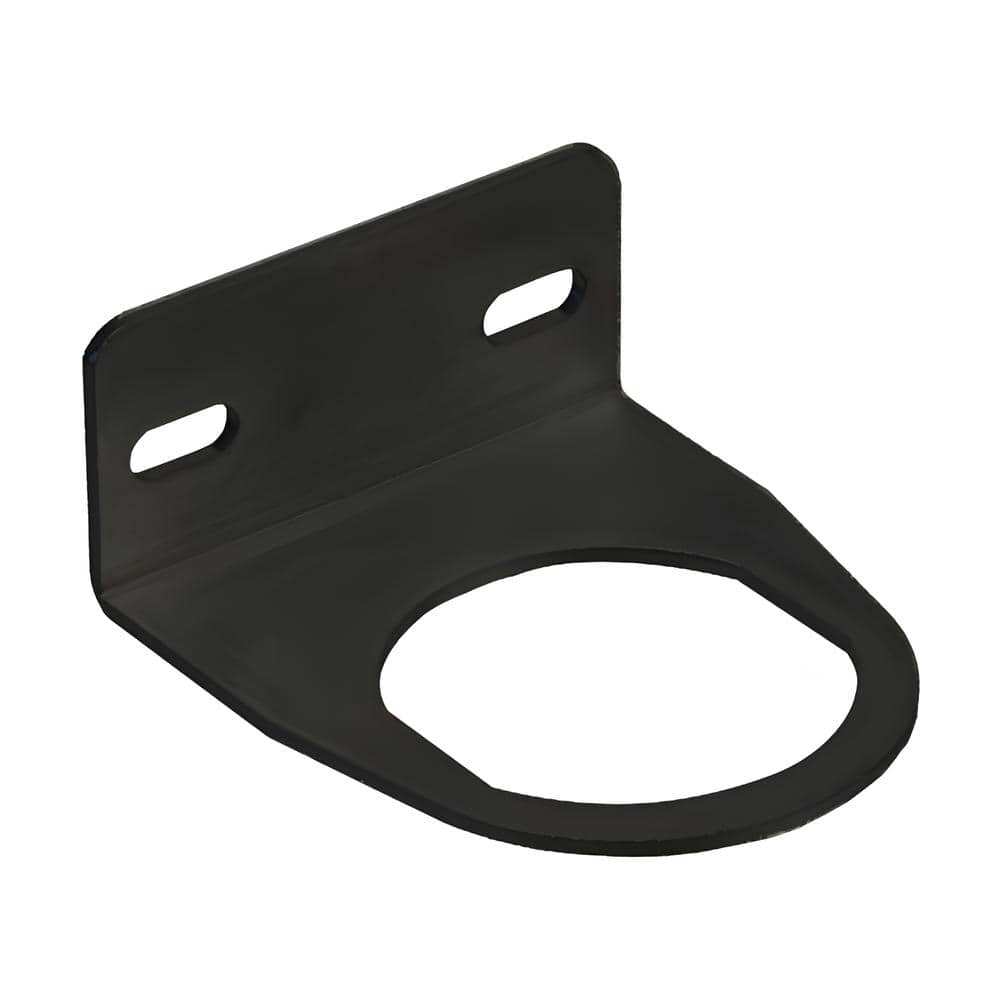

The B2UR-1 bracket made of black painted steel holds a regulator, filter or unit on the wall.
Where P2 units fit
- Inside machines and equipment. The regulator is fixed in a machine housing with a threaded lock nut. The filter and filter regulator have holes in the body for screwing to a wall or sheet metal; the lubricator has holes for wall mounting.
- Next to a small compressor. Small compressors, such as dental ones, often leave little room for air treatment. P2 components fit right next to them.
- At the workstation. A unit under the workbench treats the air right where the tool is used: it removes water, sets the pressure and adds oil.
- For spray equipment. The filter is also suitable where oil-free air is needed, for example with spray guns. A lubricator does not belong in such a line.
- For pneumatic tools and actuators. The lubricator doses oil mist for tools and actuators on production lines.
Connection and mounting

Order of components
In the direction of air flow, the filter comes first, then the regulator and finally the lubricator. The filter protects the regulator from dirt, and the lubricator comes last so that the oil reaches the tool.
In the filter regulator and the two-piece unit, the order is already set at the factory.
G 1/4" thread
The inlet and outlet have a G 1/4" female pipe thread. Screw in a male-threaded nipple for a quick coupling or a push-in fitting for plastic tubing.
Gauge ordered separately
The regulator, filter regulator and two-piece unit have a port for a 40 mm pressure gauge with a G 1/8" thread. The MZ01-15 with a 0–16 bar range fits, and other ranges are among the 40 mm pressure gauges.
Maintenance
The filter and lubricator bowls are transparent, so you can see the level of condensate and oil. Drain the condensate regularly through the manual drain at the bottom of the filter bowl and never let the bowl overflow.
Fill the lubricator with oil for pneumatic tools, for example OLN-1, and set the dose with the screw on top.
When P2 is not enough
For pressure up to 18 bar and higher flow, there is the metal B2 range with the same G 1/4" thread and the same B2UR-1 bracket. The plastic I3 units up to 13 bar also come with a G 1/8" thread and have spare bowls and filter elements. Precise pressure setting is provided by precision pressure regulators, and all ranges are shown in the overview of air treatment units.
Ventilek’s tip
Small, but it can take the pressure. The plastic body may look fragile, yet P2 components withstand a working pressure of up to 12 bar. Ordinary pneumatic tools run at about 6 bar, so there is plenty of reserve. For higher pressure, choose the metal range.
- Is a pressure gauge included?
- No. The regulator, filter regulator and two-piece unit have a port for a 40 mm pressure gauge with a G 1/8" thread; the gauge is ordered separately.
- What pressure can P2 units take?
- Working pressure up to 12 bar at a working temperature of +5 to +50 °C.
- What is the pressure setting range?
- The regulator, filter regulator and two-piece unit set the outlet pressure from 0 to 12 bar.
- What flow do the units handle?
- Filter 1200 l/min, lubricator 710 l/min, regulator and filter regulator 600 l/min, two-piece unit 260 l/min.
- How fine is the filtration?
- The filter rating is 20 µm. The filter removes coarse particles, water and oil. Finer filtration requires a microfilter.
- How is condensate drained?
- Through the manual drain at the bottom of the filter bowl.
- What oil goes into the lubricator?
- Oil for pneumatic tools. Set the oil dose with the screw on top of the lubricator.
- How do I connect the unit?
- The inlet and outlet have a G 1/4" female pipe thread. Screw in a nipple, quick coupling or fitting with a G 1/4" male thread.
- How do I mount the components?
- The regulator is fixed in a machine housing with a lock nut. The filter, lubricator and filter regulator have holes for screws, and the B2UR-1 bracket is used for wall mounting.
- What are the bodies made of?
- Technopolymer, an engineering plastic. The B2UR-1 bracket is made of black painted steel.
Working pressure up to 12 bar, working temperature +5 to +50 °C, medium compressed air. Connection G 1/4" female thread, gauge port G 1/8". Bodies made of technopolymer.
