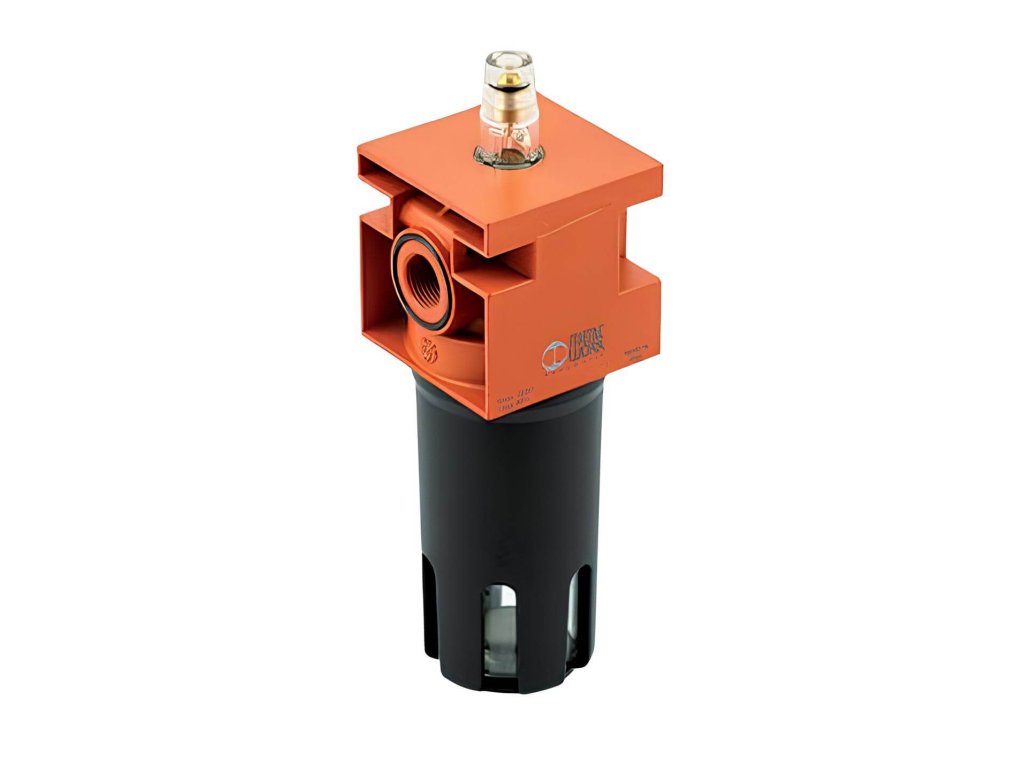

Metal lubricator N38 up to 18 bar - G 3/8" G 3/8" · up to 18 bar · 4300 l/min · 195 × 60 mm
Code: N38
Related products
Product detailed description
A metal compressed air lubricator with a G 3/8" thread adds oil to the air in proportion to the flow, so it lubricates even when little air is drawn. The oil is held in a 150 cm³ metal bowl, and you set the dose finely with a screw. Flow 4300 l/min.
Specifications
| N38 — specifications | |
|---|---|
| Type | Lubricator |
| Connection | G 3/8" female thread |
| Body size | 2 (body width 60 mm) |
| Inlet pressure | up to 18 bar |
| Flow | 4300 l/min |
| Height × width | 195 × 60 mm |
| Bowl volume | 150 cm³ |
| Material | zinc alloy, metal bowl with sight glass |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It is connected last, after the filter and regulator, for tools and actuators that need lubrication. It does not belong in a line for spraying. The G 3/8" thread is suitable for a workstation with several tools or a small workshop.
The bowl takes oil for pneumatic tools, for example OLN-1. The replacement bowl is NOK2, the sight dome N-OZ, and the complete unit with regulator and filter WE38. The same body with a G 1/2" thread is N12.
Ventilek’s tip
Branch off before the lubricator. Neither spraying nor blow-off tolerates oil. Take the air for them before the lubricator.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Lubricator |
| Pressure: | 18 bar |
| Dimensions: | 195 × 60 mm |
| Medium: | Compressed air |
| Vessel volume: | 150 cc |
| Working temperature: | -10 / 50 °C |
| Flow: | 4,300 l/min |
| Thread: | G 3/8" |
| In stock: | External warehouse |
