Metal filter FWA12 up to 18 bar - 20 µm - G 1/2" G 1/2" · up to 18 bar · 20 µm filtration · 4100 l/min · 180 × 60 mm
Code: FWA12Related products
Product detailed description

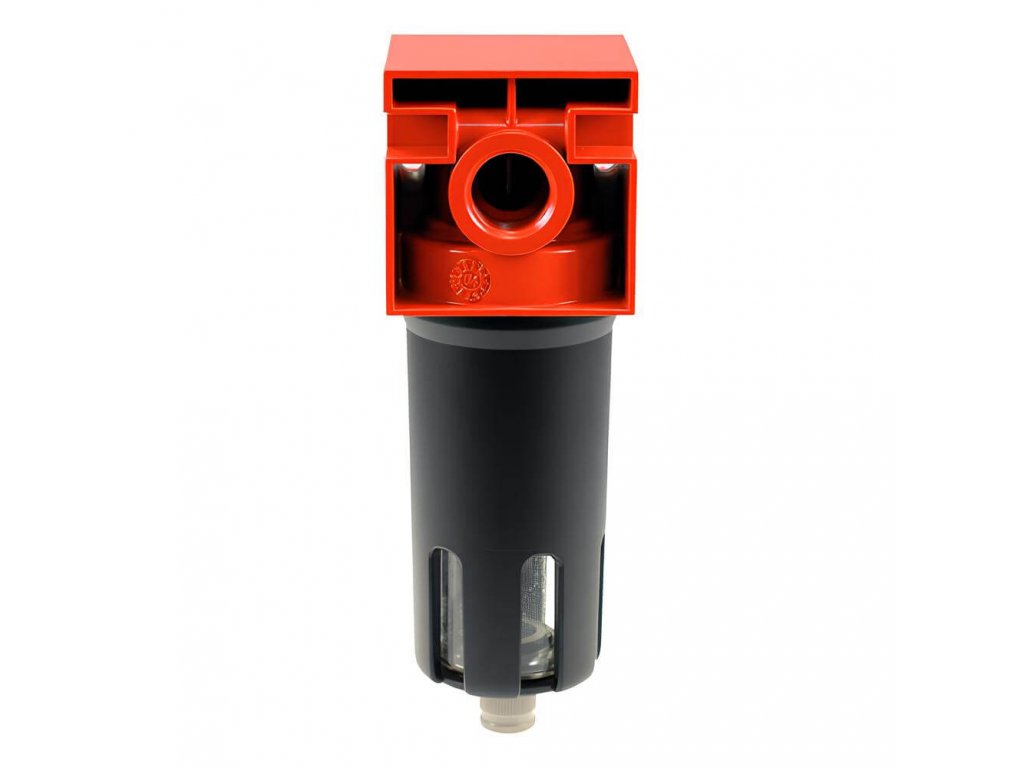

A metal compressed air filter with a G 1/2" thread and a 20 µm sintered bronze element. It uses centrifugal force to separate dirt, water and oil into a 45 cm³ metal bowl with a sight glass. Flow 4100 l/min.
Specifications
| FWA12 — specifications | |
|---|---|
| Type | Filter |
| Connection | G 1/2" female thread |
| Body size | 2 (body width 60 mm) |
| Inlet pressure | up to 18 bar |
| Flow | 4100 l/min |
| Height × width | 180 × 60 mm |
| Weight | 0.9 kg |
| Filter rating | 20 µm |
| Spare filter element | 20 µm VFK220, finer 5 µm VFK25 |
| Bowl volume | 45 cm³ |
| Condensate drain | semi-automatic |
| Material | zinc alloy, metal bowl with sight glass |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It belongs at the start of the air treatment, before the regulator and lubricator, and protects tools and machines from water, rust and dirt. The G 1/2" thread is suitable for a workshop with several workstations or a production line.
The spare filter element is VFK220, the finer one VFK25 and the bowl NFK2. The filter combined with a regulator in one body is FDM12. The same body with a G 3/8" thread is FWA38.
Ventilek’s tip
A finer element where needed. Where even fine dust is a problem, replace the 20 µm element with a 5 µm one. Bear in mind, however, that it clogs faster.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Filter |
| Pressure: | 18 bar |
| Dimensions: | 180 × 60 mm |
| Filtering ability: | 20 µm |
| Filter insert: | Replacement insert 20 µm (VFK220) |
| Medium: | Compressed air |
| Vessel volume: | 45 cc |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 4,100 l/min |
| Product type: | Complete filter |
| Thread: | G 1/2" |
| Filtration stage: | Coarse filter 15–40 µm |
| In stock: | External warehouse |
Product rating
Leave a rating
List of ratings
Metal Work is an Italian pneumatics manufacturer from Concesio near Brescia, founded in 1967. It makes actuators and handling components, valves and control systems, compressed air treatment, fittings and accessories. More than 600 people work in its Concesio plant, and the Metal Work Group comprises 61 companies worldwide.
We offer Metal Work air treatment in two series: the compact plastic I3 up to 13 bar and the robust metal I8 up to 18 bar. Both include a pressure regulator, filter, lubricator, filter regulator and two-piece unit, plus spare elements, bowls and brackets.
From Italy since 1967Two Metal Work air treatment series
I3 series — plastic up to 13 bar
Slim air treatment for tight spaces. A plastic body only 40 mm wide with G 1/8″ or G 1/4″ thread.
- pressure setting 0 to 8 bar
- 20 µm filter with semi-automatic drain
- five elements sharing the same spare parts
I8 series — metal up to 18 bar
Robust treatment for higher pressure. Metal body and metal bowl with sight glass in three sizes.
- pressure setting 0 to 12 bar
- thread G 1/4″ to 1″
- filter flow up to 11,000 l/min
Need a unit up to 10 bar, a stainless one or another size? All air treatment units, filters, regulators and lubricators are in one category.
All treatment unitsI3 and I8 series side by side
| Element, thread and flow | ||
|---|---|---|
| Element | I3 series (plastic) | I8 series (metal) |
| DM pressure regulator | G 1/8″ and 1/4″, 600 l/min | G 1/4″–1″, 650–4,500 l/min |
| FWA filter 20 µm | G 1/8″ and 1/4″, 1,200 l/min | G 1/4″–1″, 1,720–11,000 l/min |
| N lubricator | G 1/8″ and 1/4″, 710 l/min | G 1/4″–1″, 1,100–16,000 l/min |
| FDM filter regulator | G 1/8″ and 1/4″, 600 l/min | G 1/4″–1/2″, 700–2,500 l/min |
| WE two-piece unit | G 1/8″ and 1/4″, 260 l/min | G 1/4″–1/2″, 500–2,200 l/min |
| Inlet pressure and setting | up to 13 bar, 0–8 bar | up to 18 bar, 0–12 bar |
| Element width | 40 mm | 42, 60 and 80 mm |
Flow is the maximum air flow through the element in litres per minute. The working temperature of both series is −10 to +50 °C.
How to choose and connect air treatment
1. Pressure
If your air line runs above 13 bar, choose the metal I8 series rated to 18 bar. For lower pressure and little space, the plastic I3 series is enough.
2. Flow
Add up the air consumption of everything running at the same time and choose a size with a higher flow. A two-piece unit passes less air than separate elements.
3. Order
In the direction of flow, the filter comes first, then the regulator and finally the lubricator. Mount the filter and lubricator vertically, bowl down.
4. Maintenance
The drain empties condensate from the bowl. Replace a clogged filter element with a new 20 µm one or a finer 5 µm one.
Frequently asked questions
- Is a pressure gauge included with the regulator?
- No, for regulators, filter regulators and units of both series the gauge is ordered separately. A 0–10 bar gauge suits the I3 series, a 0–16 bar gauge the I8 series.
- Which spare parts are there for the units?
- 20 and 5 µm filter elements, filter and lubricator bowls, an oil sight cap and mounting brackets. For the I3 series the parts are the same for both threads, for I8 they are chosen by body size.
- Should I take a G 1/8″ or G 1/4″ thread?
- In the I3 series both threads have the same body, flow and spare parts. G 1/8″ suits thin tubing and small devices, G 1/4″ common quick couplings and tool hoses.
- Is the unit suitable for spray painting?
- Yes, but without the lubricator: the filter and regulator deliver clean, oil-free air. For finer filtration there are industrial filters to ISO 8573.
- Which certificates does Metal Work hold?
- Metal Work has held ISO 9001 quality certification since 1992 (DEKRA), ISO 14001 environmental certification since 2000 and ISO 45001 since 2019.
Dimensions, flow rates and spare parts of both series are listed in the tables in their categories. Metal Work is a brand of the Italian company Metal Work S.p.A.
