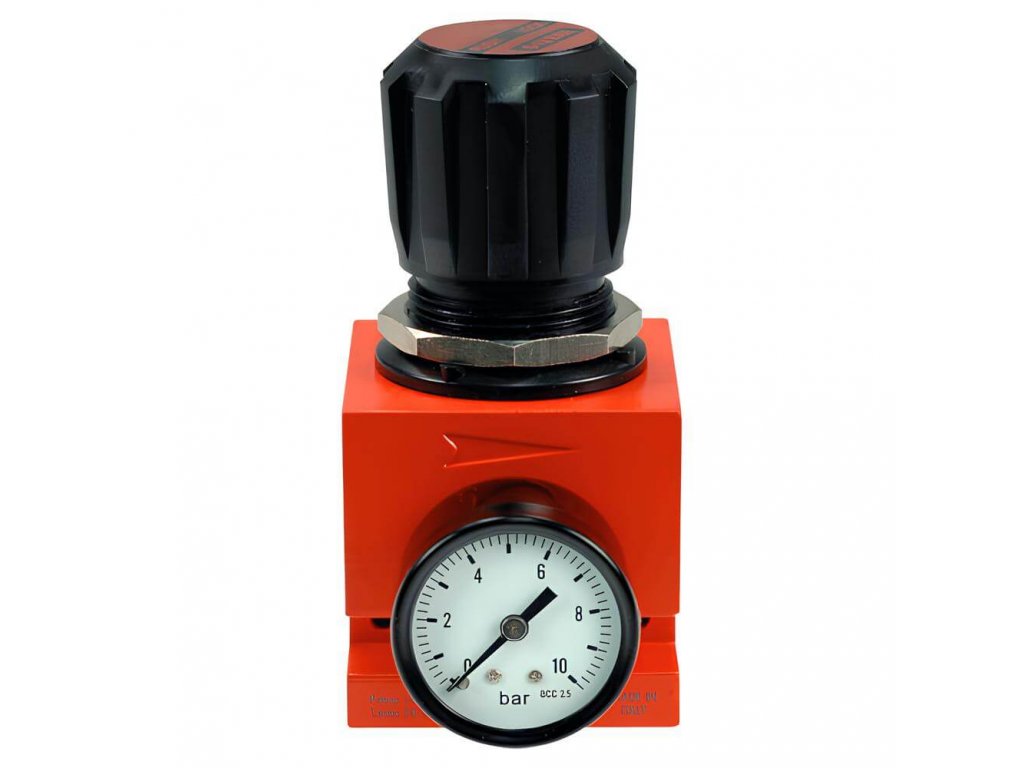

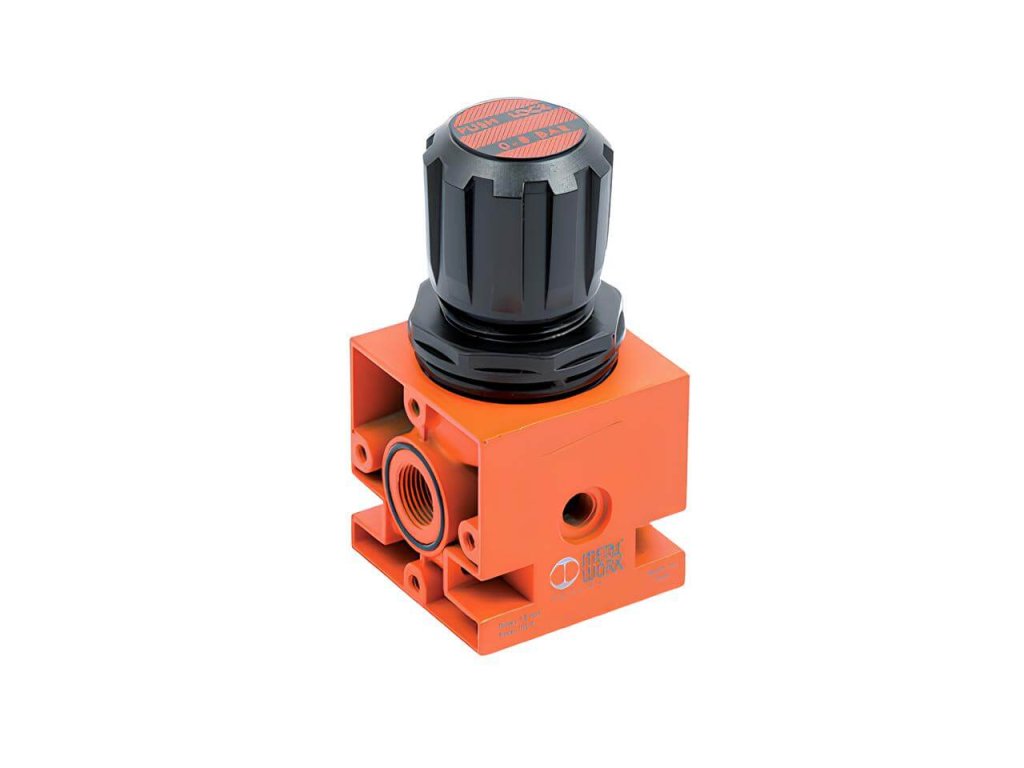

Metal pressure regulator DM14 up to 18 bar - G 1/4" G 1/4" · up to 18 bar · 650 l/min · 94 × 42 mm
Code: DM14
Related products
Product detailed description
A metal pressure regulator with a G 1/4" thread and a flow of 650 l/min. It reduces an inlet pressure of up to 18 bar to a value from 0 to 12 bar set with the knob and holds it even when the line pressure fluctuates.
Specifications
| DM14 — specifications | |
|---|---|
| Type | Pressure regulator |
| Connection | G 1/4" female thread |
| Body size | 1 (body width 42 mm) |
| Inlet pressure | up to 18 bar |
| Pressure setting range | 0 to 12 bar |
| Setting lock | knob lock |
| Flow | 650 l/min |
| Height × width | 94 × 42 mm |
| Pressure gauge | not included, G 1/8" port |
| Material | zinc alloy |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It suits places where the air line pressure is higher than a tool or machine can take and where standard units rated for 10 bar are not enough. The G 1/4" thread is suitable for a single tool or a smaller machine.
The pressure gauge is not included; MZ01-15 fits. You can fix the regulator to a wall with the bracket UUK1. The filter regulator in one body is FDM14.
Ventilek’s tip
Set the pressure from below. First back the knob off below the value you need, then turn it up slowly until the gauge shows what you need. Finally, secure the setting with the knob lock.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Pressure regulator |
| Pressure: | 18 bar |
| Dimensions: | 94 × 42 mm |
| Medium: | Compressed air |
| Working temperature: | -10 / 50 °C |
| Flow: | 650 l/min |
| Regulatory range: | 0 - 12 bar |
| Thread: | G 1/4" |
| Thread for manometer: | 1/8" |
| In stock: | External warehouse |
