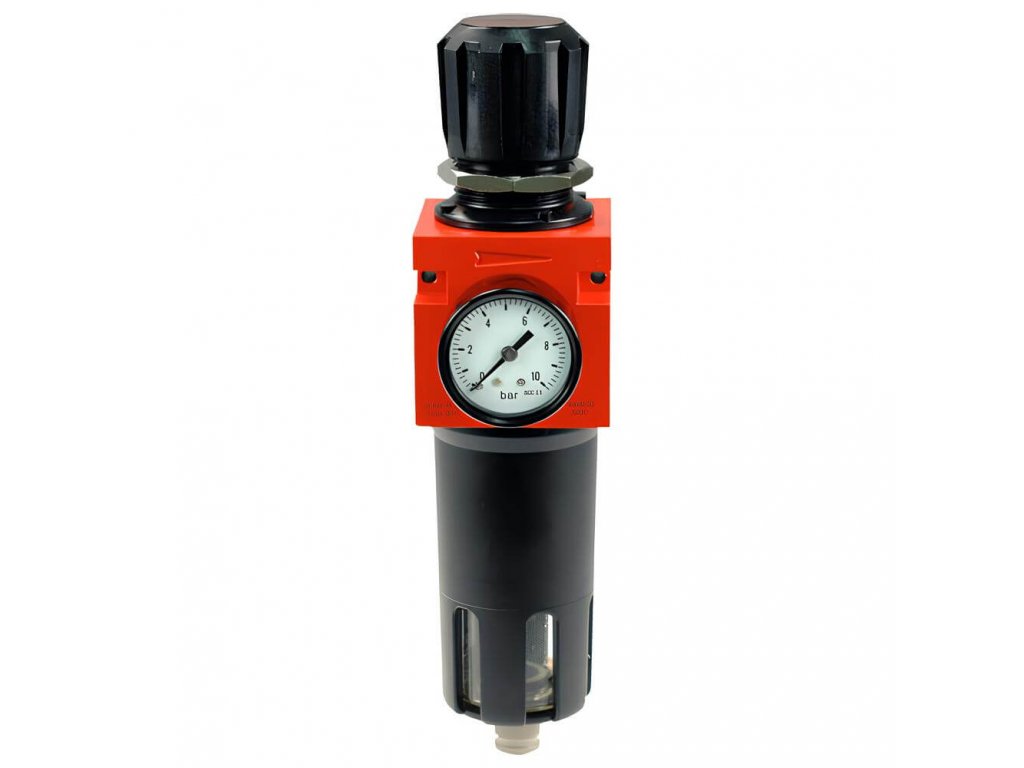

Metal filter regulator FDM14 up to 18 bar - G 1/4" G 1/4" · up to 18 bar · 20 µm filtration · 700 l/min · 190 × 42 mm
Code: FDM14
Related products
Product detailed description
A 20 µm filter and a pressure regulator in one metal body with a G 1/4" thread. It first separates dirt, water and oil into a 10 cm³ metal bowl, then reduces the pressure from as high as 18 bar to a value from 0 to 12 bar. Flow 700 l/min.
Specifications
| FDM14 — specifications | |
|---|---|
| Type | Filter regulator |
| Connection | G 1/4" female thread |
| Body size | 1 (body width 42 mm) |
| Inlet pressure | up to 18 bar |
| Pressure setting range | 0 to 12 bar |
| Setting lock | knob lock |
| Flow | 700 l/min |
| Height × width | 190 × 42 mm |
| Weight | 0.5 kg |
| Filter rating | 20 µm |
| Spare filter element | 20 µm VFK120, finer 5 µm VFK15 |
| Bowl volume | 10 cm³ |
| Condensate drain | semi-automatic |
| Pressure gauge | not included, G 1/8" port |
| Material | zinc alloy, metal bowl with sight glass |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It saves space and one connection where you need clean air at a constant pressure without lubrication, for example for spraying. The G 1/4" thread is suitable for a single tool or a smaller machine.
With the lubricator N14 it forms complete air treatment; the ready-made unit is WE14. The spare filter element is VFK120, the bowl NFK1 and the pressure gauge MZ01-15.
Ventilek’s tip
For a spray gun, skip the lubricator. A filter regulator delivers clean air at a constant pressure without added oil that would spoil the paint finish.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Pressure regulator with filter |
| Pressure: | 18 bar |
| Dimensions: | 190 × 42 mm |
| Filtering ability: | 20 µm |
| Filter insert: | Replacement insert 20 µm (VFK120) |
| Medium: | Compressed air |
| Vessel volume: | 10 cc |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 700 l/min |
| Regulatory range: | 0 - 12 bar |
| Thread: | G 1/4" |
| Thread for manometer: | 1/8" |
| In stock: | External warehouse |
