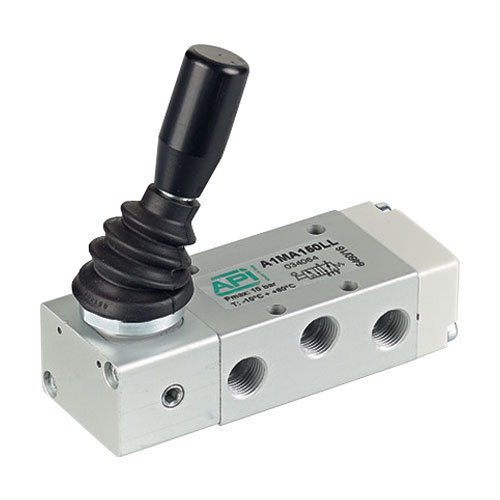

    Manually operated pneumatic valves 1/8"

    Ručně ovládaný pneumatický ventil 3/2, 5/2, 5/3 se závitem 1/8"
    • series of lever and pushbutton valves
    • working pressure 0 -10 bar, working temperature: -10 to +80 °C
    • materials used: body - aluminium/acetal resin, gasket - NBR

    Manually operated pneumatic valves - version 3/2 - 1/8"
    Valve diagram Ordering
    number    		 Valve designation Valve function Thread
    "    		 Luminosity
    DN    		 Air flow
    l/min
    3/2 pneumatický ventil, páčka 90°, 2 polohy s aretací 034070 A1MA132LL 3/2, 90° lever, 2 positions with locking 1/8" 6.5mm 650 l/min
    3/2 pneumatický ventil, páčka 180°, 2 polohy s pružinou 034071 A1MA130LL 3/2, 180° lever, 2 positions with spring 1/8" 6.5mm 650 l/min
    3/2 pneumatický ventil, páčka 180°, 2 polohy s aretací 034082 A1MA132LT 3/2, 180° lever, 2 positions with locking 1/8" 6.5mm 650 l/min
    3/2 NC pneumatický ventil, tlačítko, 2 polohy s aretací 034084 A1MA132TT 3/2 NC, push button, 2 positions with locking 1/8" 6.5mm 650 l/min
    3/2 NC pneumatický ventil, tlačítko, 2 polohy s pružinou 034083 A1MA130TT 3/2 NC, push button, 2 positions with spring 1/8" 6.5mm 650 l/min
    3/2 NC pneumatický ventil, hříbek, červený bez aretace 034085 A1MA130FR 3/2 NC, mushroom, red without locking 1/8" 6.5mm 650 l/min
    3/2 NC pneumatický ventil, hříbek, zelený bez aretace 034086 A1MA130FV 3/2 NC, mushroom, green without locking 1/8" 6.5mm 650 l/min
    3/2 NC pneumatický ventil, hříbek, černý bez aretace 034087 A1MA130FN 3/2 NC, mushroom, black without locking 1/8" 6.5mm 650 l/min
    3/2 pneumatický ventil, zapuštěné tlačítko červené, bez aretace 034088 A1MA130BR 3/2, recessed button red, without locking 1/8" 6.5mm 650 l/min
    3/2 pneumatický ventil, zapuštěné tlačítko zelené, bez aretace 034089 A1MA130BV 3/2, recessed button green, without locking 1/8" 6.5mm 650 l/min
    3/2 pneumatický ventil, zapuštěné tlačítko černé, bez aretace 034090 A1MA130BN 3/2, recessed button black, without locking 1/8" 6.5mm 650 l/min

    Manually operated pneumatic valves - versions 5/2 and 5/3 - 1/8"
    Valve diagram Ordering
    number    		 Valve designation Valve function Thread
    "    		 Luminosity
    DN    		 Air flow
    l/min
    5/2 pneumatický ventil, páčka 90° s aretací 034063 A1MA151LL 5/2, 90° lever with lock 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, páčka 90° bez aretace 034064 A1MA150LL 5/2, 90° lever without locking 1/8" 6.5mm 650 l/min
    5/3 pneumatický ventil, páčka 90° s aretací, stř. poloha uzavřená 034068 A1MA173LL 5/3, 90° lever with locking, centre position closed 1/8" 6.5mm 650 l/min
    5/3 pneumatický ventil, páčka 90° s aretací, stř. poloha odvětraná 034067 A1MA174LL 5/3, 90° lever with locking, centre position ventilated 1/8" 6.5mm 650 l/min
    5/3 pneumatický ventil, páčka 90° s aretací, stř. poloha pod tlakem 034069 A1MA175LL 5/3, 90° lever with locking, centre position under pressure 1/8" 6.5mm 650 l/min
    5/3 pneumatický ventil, páčka 90° bez aretace, stř. poloha uzavřená 034062 A1MA170LL 5/3, 90° lever without locking, centre position closed 1/8" 6.5mm 650 l/min
    5/3 pneumatický ventil, páčka 90° bez aretace, stř. poloha odvětraná 034066 A1MA171LL 5/3, 90° lever without locking, centre position ventilated 1/8" 6.5mm 650 l/min
    5/3 pneumatický ventil, páčka 90° bez aretace, stř. poloha pod tlakem 034065 A1MA172LL 5/3, 90° lever without lock, centre position under pressure 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, páčka 180° s aretací 034091 A1MA151LT 5/2, 180° lever with lock 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, tlačítko s aretací 034093 A1MA151TT 5/2, push button with lock 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, tlačítko bez aretace 034092 A1MA150TT 5/2, button without lock 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, hříbek, červený bez aretace 034094 A1MA150FR 5/2, mushroom, red without locking 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, hříbek, zelený bez aretace 034095 A1MA150FV 5/2, mushroom, green without locking 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, hříbek, černý bez aretace 034096 A1MA150FN 5/2, mushroom, black without locking 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, zapuštěné tlačítko, červené , bez aretace 034097 A1MA150BR 5/2, recessed button, red, without locking 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, zapuštěné tlačítko, zelené, bez aretace 034098 A1MA150BV 5/2, recessed button, green, without locking 1/8" 6.5mm 650 l/min
    5/2 pneumatický ventil, zapuštěné tlačítko, černé, bez aretace 034099 A1MA150BN 5/2, recessed button, black, without locking 1/8" 6.5mm 650 l/min

    Bestsellers

    Manually operated valve A1MA151LT
    Stock (5 pcs)
    Code: 034091
    Was: €74,91  (–4 %)
    €71,17
    (€58,82 excl. VAT)
    Manually operated valve A1MA151TT
    up to 14 days
    Code: 034093
    Was: €74,25  (–5 %)
    €70,54
    (€58,30 excl. VAT)
    Manually operated valve A1MA174LL
    Stock (3 pcs)
    Code: 034067
    Was: €88,80  (–5 %)
    €84,36
    (€69,72 excl. VAT)

    Product sorting

    28 items total

    List of products

    a1ma151lt rucni ventil vzduch automatizace
    €74,91 –4 %
    Manually operated valve A1MA151LT
    Stock (5 pcs)
    €58,82 excl. VAT
    €71,17 / pcs

    Manually operated valve - version 5/2, 180° lever with locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal resin,...

    Code: 034091
    a1ma13ll rucni ventil vzduch automatizace
    €79,14 –5 %
    Manually operated valve A1MA132LL
    Stock (3 pcs)
    €62,13 excl. VAT
    €75,18 / pcs

    Manually operated valve - version 3/2 NC, mushroom, black without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034070
    rucni ventil vzduch automatizace (2)
    €67,12 –5 %
    Manually operated valve A1MA132LT
    Stock (6 pcs)
    €52,69 excl. VAT
    €63,76 / pcs

    Manually operated valve - version 3/2, lever 180°, 2 positions with locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034082
    a1ma151ll rucni ventil vzduch automatizace
    €87,26 –5 %
    Manually operated valve A1MA151LL
    Stock (2 pcs)
    €68,51 excl. VAT
    €82,90 / pcs

    Manually operated valve - version 5/2, 90° lever with locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal resin,...

    Code: 034063
    a1ma150br rucni ventil vzduch automatizace
    €123,32 –5 %
    Manually operated valve A1MA150BN
    Stock (2 pcs)
    €96,82 excl. VAT
    €117,15 / pcs

    Manually operated valve - version 5/2, recessed button, black, without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034099
    a1ma150fr rucni ventil vzduch automatizace
    €136,88 –5 %
    Manually operated valve A1MA150FV
    Stock (1 pcs)
    €107,46 excl. VAT
    €130,03 / pcs

    Manually operated valve - version 5/2, mushroom, green without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal...

    Code: 034095
    a1ma173ll rucni ventil vzduch automatizace
    €88,80 –5 %
    Manually operated valve A1MA173LL
    Stock (2 pcs)
    €69,72 excl. VAT
    €84,36 / pcs

    Manually operated valve - version 5/3, 90° lever with locking, centre position closed. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034068
    a1ma174ll rucni ventil vzduch automatizace
    €88,80 –5 %
    Manually operated valve A1MA174LL
    Stock (3 pcs)
    €69,72 excl. VAT
    €84,36 / pcs

    Manually operated valve - version 5/3, 90° lever with locking, centre position vented. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034067
    a1ma151tt rucni ventil vzduch automatizace
    €74,25 –5 %
    Manually operated valve A1MA151TT
    up to 14 days
    €58,30 excl. VAT
    €70,54 / pcs

    Manually operated valve - version 5/2, push button with locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal resin,...

    Code: 034093
    rucni ventil vzduch automatizace
    €114,21 –5 %
    Manually operated valve A1MA130BN
    up to 14 days
    €89,67 excl. VAT
    €108,50 / pcs

    Manually operated valves - version 3/2, recessed button black, without locking. Working pressure 0 -10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034090
    a1ma130br rucni ventil vzduch automatizace
    €114,21 –5 %
    Manually operated valve A1MA130BR
    up to 14 days
    €89,67 excl. VAT
    €108,50 / pcs

    Manually operated valves - version 3/2, recessed button red, without locking. Working pressure 0 -10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034088
    rucni ventil vzduch automatizace
    €114,21 –5 %
    Manually operated valve A1MA130BV
    up to 14 days
    €89,67 excl. VAT
    €108,50 / pcs

    Manually operated valve - version 3/2, green recessed button, without locking. Working pressure 0 -10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034089
    a1ma130fn
    €127,87 –5 %
    Manually operated valve A1MA130FN
    up to 14 days
    €100,40 excl. VAT
    €121,48 / pcs

    Manually operated valve - version 3/2 NC, mushroom, black without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034087
    a1ma130fr rucni ventil vzduch automatizace
    €127,87 –5 %
    Manually operated valve A1MA130FR
    up to 14 days
    €100,40 excl. VAT
    €121,48 / pcs

    Manually operated valve - version 3/2 NC, mushroom, red without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal...

    Code: 034085
    a1ma130fv rucni ventil vzduch automatizace
    €127,87 –5 %
    Manually operated valve A1MA130FV
    up to 14 days
    €100,40 excl. VAT
    €121,48 / pcs

    Manually operated valve - version 3/2 NC, mushroom, green without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034086
    a1ma13ll rucni ventil vzduch automatizace
    €77,55 –5 %
    Manually operated valve A1MA130LL
    up to 14 days
    €60,88 excl. VAT
    €73,67 / pcs

    Manually operated valve - version 3/2, lever 180°, 2 positions with spring. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034071
    a1ma130tt rucni ventil vzduch automatizace
    €64,87 –4 %
    Manually operated valve A1MA130TT
    up to 14 days
    €50,93 excl. VAT
    €61,63 / pcs

    Manually operated valve - design 3/2 NC, push button, 2 positions with spring. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034083
    a1ma13tt rucni ventil vzduch automatizace
    €63,33 –4 %
    Manually operated valve A1MA132TT
    up to 14 days
    €49,73 excl. VAT
    €60,17 / pcs

    Manually operated valve - design 3/2 NC, push button, 2 positions with locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034084
    a1ma150br rucni ventil vzduch automatizace
    €123,32 –5 %
    Manually operated valve A1MA150BR
    up to 14 days
    €96,82 excl. VAT
    €117,15 / pcs

    Manually operated valve - design 5/2, recessed button, red, without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034097
    a1ma150br rucni ventil vzduch automatizace
    €123,32 –5 %
    Manually operated valve A1MA150BV
    up to 14 days
    €96,82 excl. VAT
    €117,15 / pcs

    Manually operated valve - version 5/2, recessed button, green, without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034098
    a1ma150fr rucni ventil vzduch automatizace
    €136,88 –5 %
    Manually operated valve A1MA150FN
    up to 14 days
    €107,46 excl. VAT
    €130,03 / pcs

    Manually operated valve - version 5/2, mushroom, black without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal...

    Code: 034096
    a1ma150fr rucni ventil vzduch automatizace
    €136,88 –5 %
    Manually operated valve A1MA150FR
    up to 14 days
    €107,46 excl. VAT
    €130,03 / pcs

    Manually operated valve - version 5/2, mushroom, red without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal...

    Code: 034094
    a1ma150ll rucni ventil vzduch automatizace
    €85,62 –5 %
    Manually operated valve A1MA150LL
    up to 14 days
    €67,21 excl. VAT
    €81,33 / pcs

    Manually operated valve - version 5/2, 90° lever without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal resin,...

    Code: 034064
    a1ma150tt rucni ventil vzduch automatizace
    €75,74 –5 %
    Manually operated valve A1MA150TT
    up to 14 days
    €59,46 excl. VAT
    €71,95 / pcs

    Manually operated valve - version 5/2, push button without locking. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal...

    Code: 034092
    a1ma170ll rucni ventil vzduch automatizace
    €113,28 –5 %
    Manually operated valve A1MA170LL
    up to 14 days
    €88,93 excl. VAT
    €107,61 / pcs

    Manually operated valve - version 5/3, 90° lever without lock, centre position closed. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034062
    a1ma171ll rucni ventil vzduch automatizace
    €113,28 –5 %
    Manually operated valve A1MA171LL
    up to 14 days
    €88,93 excl. VAT
    €107,61 / pcs

    Manually operated valve - version 5/3, 90° lever without locking, centre position vented. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used: body -...

    Code: 034066
    a1ma172ll rucni ventil vzduch automatizace
    €113,28 –5 %
    Manually operated valve A1MA172LL
    up to 14 days
    €88,93 excl. VAT
    €107,61 / pcs

    Manually operated valve - version 5/3, 90° lever without lock, centre position under pressure. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used:...

    Code: 034065
    a1ma175ll rucni ventil vzduch automatizace
    €88,80 –5 %
    Manually operated valve A1MA175LL
    up to 14 days
    €69,72 excl. VAT
    €84,36 / pcs

    Manually operated valve - version 5/3, 90° lever with locking, centre position under pressure. Working pressure 0 - 10 bar, working temperature: -10 to +80 °C, materials used:...

    Code: 034069
