Air-operated 3/2 valve FUTURA PCL382-F - G 3/8" 4,300 l/min · size 2 · ATEX
Code: PCL382-F
Related products
Product detailed description

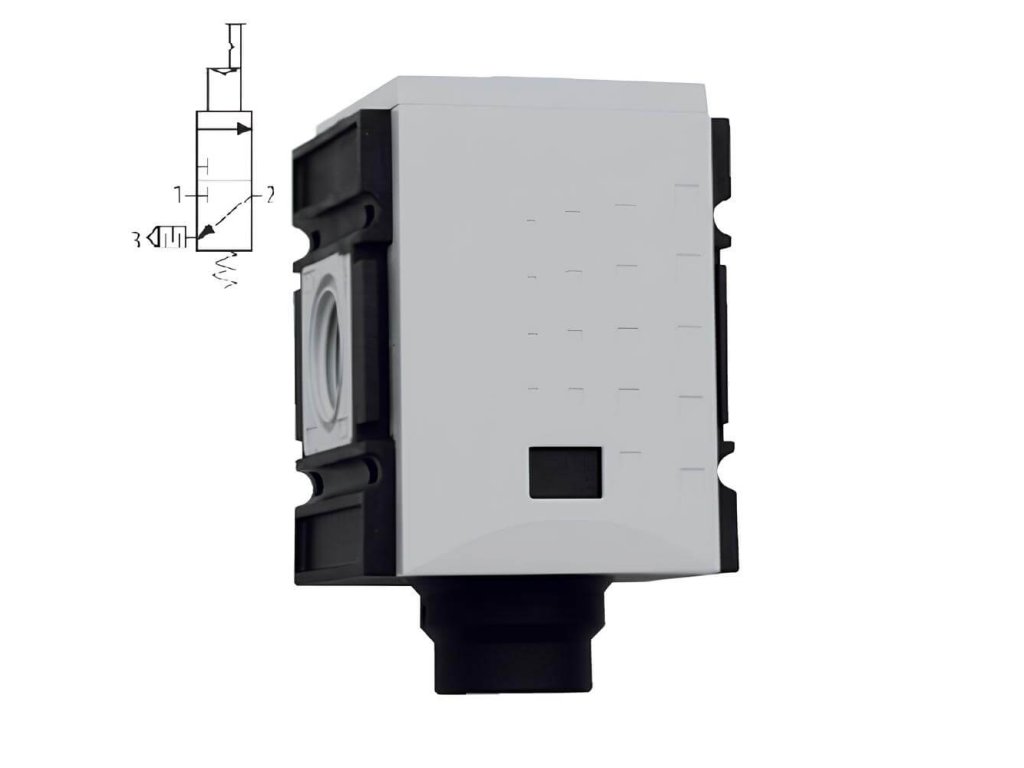

The air-operated valve is a 3/2 valve without a coil. At rest it shuts off the supply and exhausts the outlet. When compressed air is applied to the G 1/8" pilot port, it connects the supply to the outlet.
Specifications
| PCL382-F — specifications | |
|---|---|
| Type | Air-operated 3/2 valve |
| Connection | G 3/8" female thread |
| Size | 2 (module width 63 mm) |
| Inlet pressure | 2–16 bar |

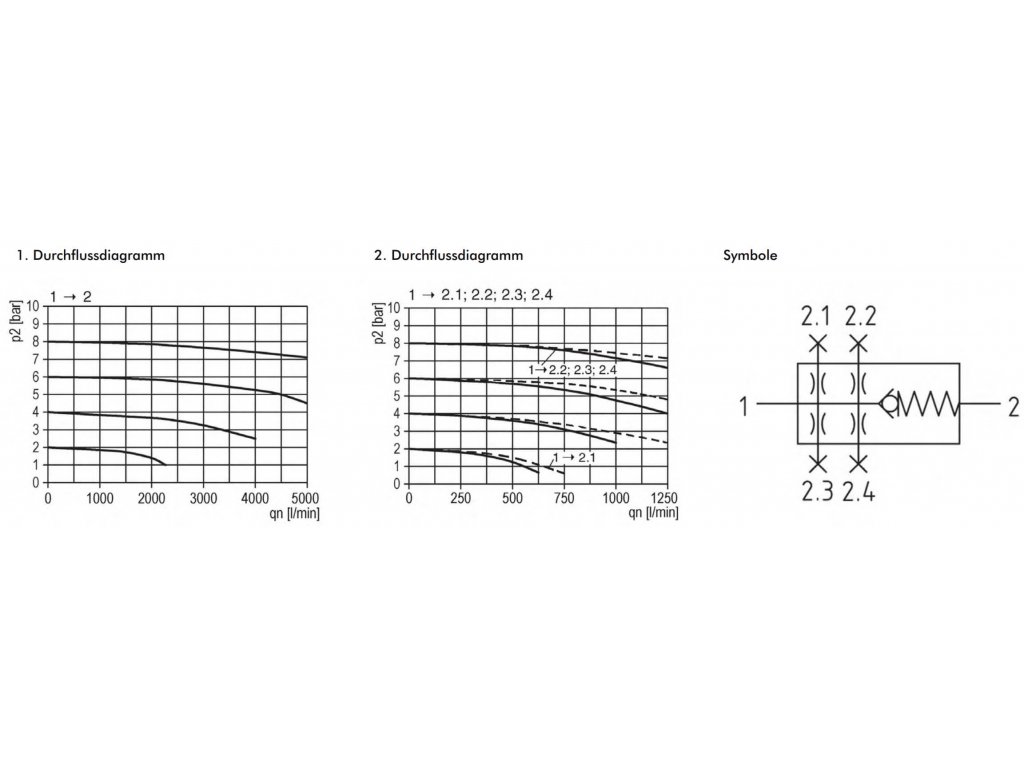

| Flow | 4,300 l/min |
| Function | 3/2 valve, normally closed, outlet exhausted |
| Actuation | by compressed air |
| Pilot port | G 1/8" |
| Outlet exhaust port | G 1/2" |

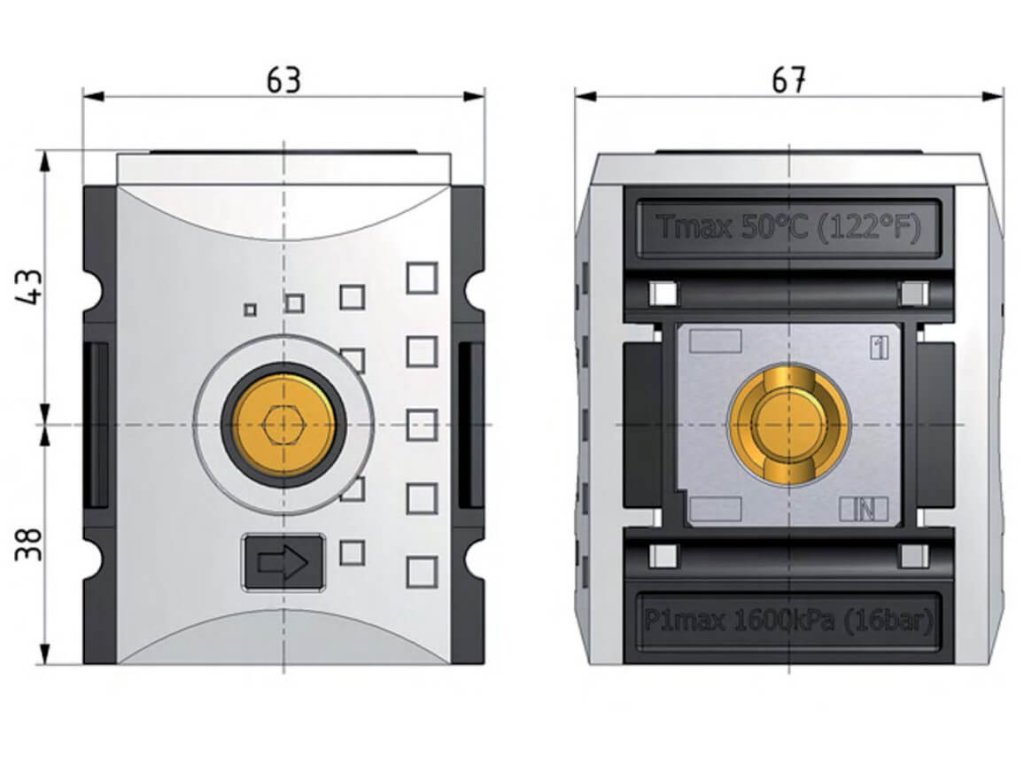

| Width × height | 63 × 118 mm |
| Material | glass-fibre reinforced polyamide body, NBR seals |
| Working temperature | −10 to +50 °C |
| Medium | lubricated or non-lubricated compressed air and neutral gases |
| Potentially explosive atmospheres | yes, zones 1, 2, 21 and 22, T4 |
What it is for
It suits pneumatic control and places where there should be no electricity. Size 2 is suitable for machines and larger air lines.
Parts for this size: mounting bracket W2F · connection kit KP2F · connection kit with wall bracket KPW2F · threaded wall brackets WK2-38F.
Potentially explosive atmospheres
A mechanical device with no ignition source of its own. According to the declaration regarding Directive 2014/34/EU, you can use it in zones 1 and 2 (gases IIA, IIB, IIC) and 21 and 22 (dust IIIA, IIIB), temperature class T4, under the conditions described for the FUTURA range. We will send you the declaration on request.
Ventilek’s tip
A silencer on the exhaust. A silencer is included; without it, the exhaust is loud.
Additional parameters
| Category: | FUTURA shut-off and switching valves for ATEX environments up to 16 bar |
|---|---|
| Version: | Switch valve |
| Pressure: | 16 bar |
| Dimensions: | 118 × 63 mm |
| Certification: | ATEX |
| Medium: | Compressed air |
| Working temperature: | -10 / 50 °C |
| Flow: | 4,300 l/min |
| Thread: | G 3/8" |
| In stock: | External warehouse |
