Ball valve with exhaust FUTURA K14-F - G 1/4" 1,900 l/min · size 1 · ATEX
Code: K14-F
Related products
Product detailed description
The ball valve is a 3/2 shut-off valve. Turning the knob 90° shuts off the supply and exhausts the outlet downstream through a silencer. In the closed position you can lock it with up to three padlocks.
Specifications
| K14-F — specifications | |
|---|---|
| Type | Ball valve with exhaust |
| Connection | G 1/4" female thread |
| Size | 1 (module width 52 mm) |
| Inlet pressure | 0–16 bar |
| Flow | 1,900 l/min |
| Function | 3/2 shut-off valve with outlet exhaust |
| Actuation | manual, by turning 90° |
| Outlet exhaust port | G 1/4" |
| Setting lock | VHS 20 |

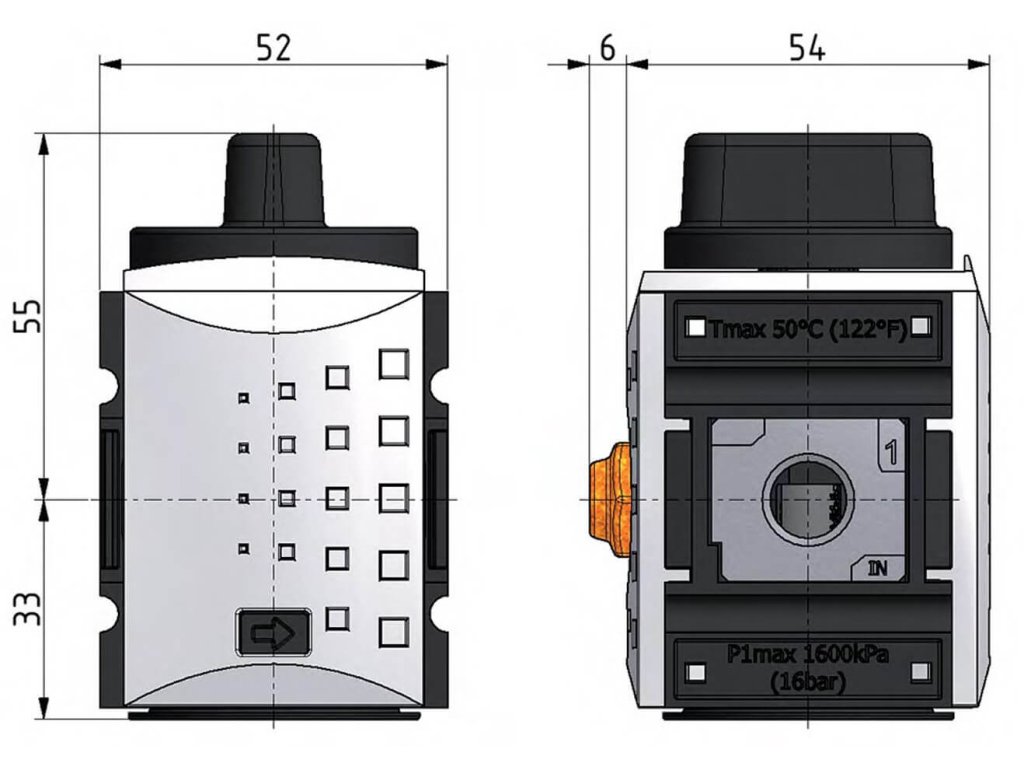

| Width × height | 52 × 88 mm |
| Material | glass-fibre reinforced polyamide body, NBR seals |
| Working temperature | −10 to +50 °C |
| Medium | lubricated or non-lubricated compressed air and neutral gases |
| Potentially explosive atmospheres | yes, zones 1, 2, 21 and 22, T4 |
What it is for
It goes at the start of the unit, before the soft-start valve and filter. It isolates a machine or a branch of the air line for maintenance without switching off the compressor. Size 1 is suitable for tools and smaller machines.
Parts for this size: padlock for the knob VHS20 · mounting bracket W1F · connection kit KP1F · connection kit with wall bracket KPW1F · threaded wall brackets WK1-14F.
Potentially explosive atmospheres
A mechanical device with no ignition source of its own. According to the declaration regarding Directive 2014/34/EU, you can use it in zones 1 and 2 (gases IIA, IIB, IIC) and 21 and 22 (dust IIIA, IIIB), temperature class T4, under the conditions described for the FUTURA range. We will send you the declaration on request.
Ventilek’s tip
Everyone their own lock. Up to three padlocks can be hung on the valve. Whoever works on the machine locks it with their own.
Additional parameters
| Category: | FUTURA shut-off and switching valves for ATEX environments up to 16 bar |
|---|---|
| Version: | Shut-off valve |
| Pressure: | 16 bar |
| Dimensions: | 88 × 52 mm |
| Certification: | ATEX |
| Medium: | Compressed air |
| Working temperature: | -10 / 50 °C |
| Flow: | 1,900 l/min |
| Thread: | G 1/4" |
| In stock: | External warehouse |
