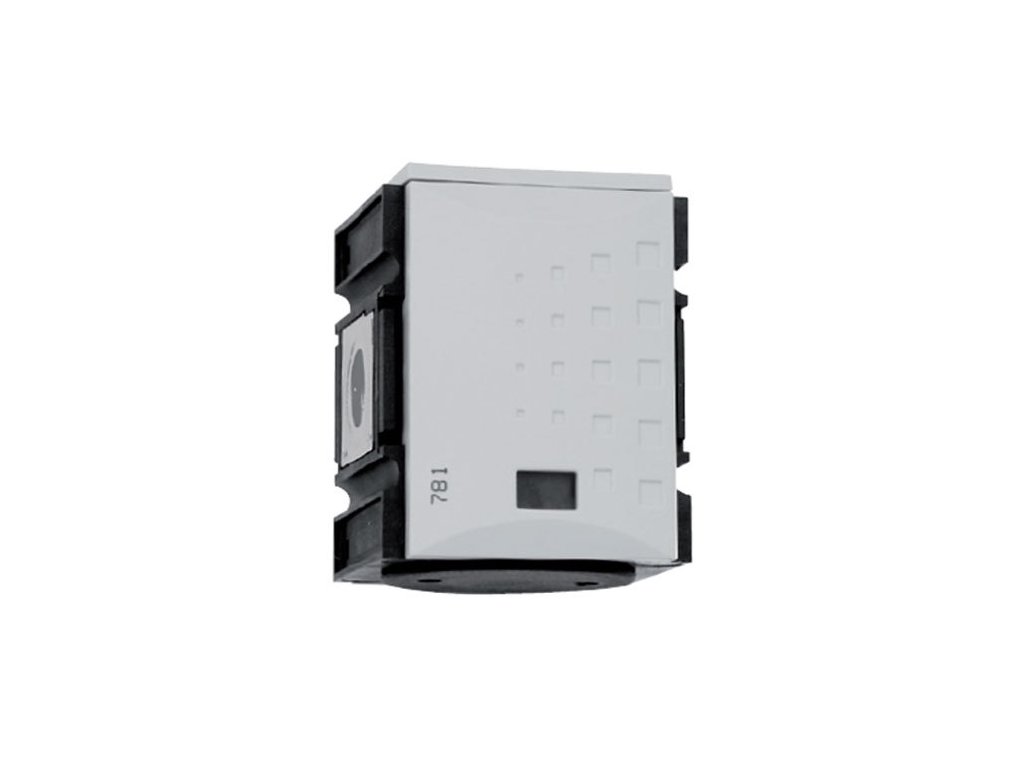

Check valve FUTURA RCL14-F - G 1/4" 1,250 l/min · size 1 · ATEX
Code: RCL14-F
Related products
Product detailed description
The check valve lets air through only in the direction of the arrow, from supply P to outlet A. When the supply pressure drops, it closes. The side ports branch off before the valve, on the supply side.
Specifications
| RCL14-F — specifications | |
|---|---|
| Type | Check valve |
| Connection | G 1/4" female thread |
| Size | 1 (module width 52 mm) |
| Inlet pressure | 0–16 bar |
| Flow | 1,250 l/min |
| Side ports | at the rear, G 1/4" |
| Width × height | 52 × 67 mm |
| Material | glass-fibre reinforced polyamide body, NBR seals |
| Working temperature | −10 to +50 °C |
| Medium | lubricated or non-lubricated compressed air and neutral gases |
| Potentially explosive atmospheres | yes, zones 1, 2, 21 and 22, T4 |
What it is for
It keeps the pressure downstream when the supply pressure drops and prevents backflow. Size 1 is suitable for tools and smaller machines.
Parts for this size: mounting bracket W1F · connection kit KP1F · connection kit with wall bracket KPW1F · threaded wall brackets WK1-14F.
Potentially explosive atmospheres
A mechanical device with no ignition source of its own. According to the declaration regarding Directive 2014/34/EU, you can use it in zones 1 and 2 (gases IIA, IIB, IIC) and 21 and 22 (dust IIIA, IIIB), temperature class T4, under the conditions described for the FUTURA range. We will send you the declaration on request.
Ventilek’s tip
Branch before the valve. The side ports take air from the supply, not from the protected side.
Additional parameters
| Category: | FUTURA soft-start valves, check valves and manifold modules for ATEX up to 16 bar |
|---|---|
| Version: | Check valve |
| Pressure: | 16 bar |
| Dimensions: | 67 × 52 mm |
| Certification: | ATEX |
| Medium: | Compressed air |
| Working temperature: | -10 / 50 °C |
| Exhaust flow: | 700 l/min |
| Filling flow: | 1,250 l/min |
| Thread: | G 1/4" |
| In stock: | External warehouse |
