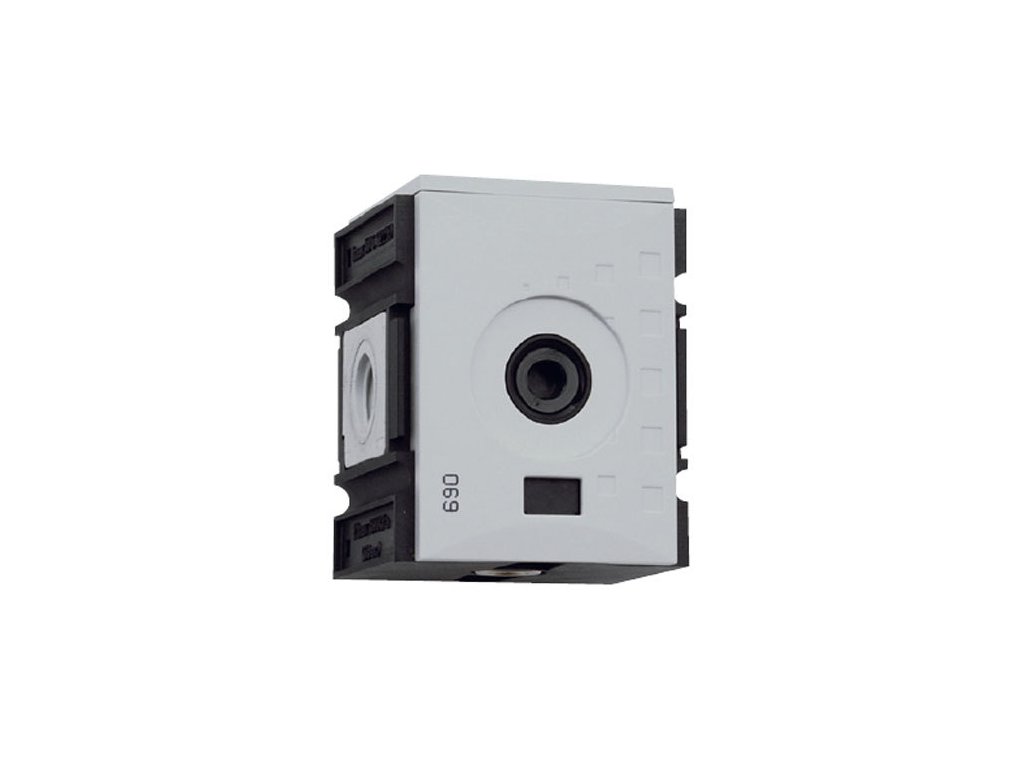

Manifold module FUTURA VBCL14-F - G 1/4" 2,700 l/min · size 1 · ATEX
Code: VBCL14-F
Related products
Product detailed description
The manifold module is a through-flow module without a valve. All side ports have the supply pressure, so you can take air from the unit at several points.
Specifications
| VBCL14-F — specifications | |
|---|---|
| Type | Manifold module |
| Connection | G 1/4" female thread |
| Size | 1 (module width 52 mm) |
| Inlet pressure | 0–16 bar |
| Flow | 2,700 l/min |
| Side ports | top, bottom and front, G 1/4" |
| Width × height | 52 × 66 mm |
| Material | glass-fibre reinforced polyamide body, NBR seals |
| Working temperature | −10 to +50 °C |
| Medium | lubricated or non-lubricated compressed air and neutral gases |
| Potentially explosive atmospheres | yes, zones 1, 2, 21 and 22, T4 |
What it is for
An oil-free branch is made with a manifold module before the lubricator, for example for a spray gun or blow-off. Size 1 is suitable for tools and smaller machines.
Parts for this size: mounting bracket W1F · connection kit KP1F · connection kit with wall bracket KPW1F · threaded wall brackets WK1-14F.
Potentially explosive atmospheres
A mechanical device with no ignition source of its own. According to the declaration regarding Directive 2014/34/EU, you can use it in zones 1 and 2 (gases IIA, IIB, IIC) and 21 and 22 (dust IIIA, IIIB), temperature class T4, under the conditions described for the FUTURA range. We will send you the declaration on request.
Ventilek’s tip
Plug unused ports. An open port would release air.
Additional parameters
| Category: | FUTURA soft-start valves, check valves and manifold modules for ATEX up to 16 bar |
|---|---|
| Version: | Manifold module |
| Pressure: | 16 bar |
| Dimensions: | 66 × 52 mm |
| Certification: | ATEX |
| Top exit: | 2 × 1/4" |
| Medium: | Compressed air |
| Working temperature: | -10 / 50 °C |
| Flow: | 2,700 l/min |
| Bottom exit: | 1/4" |
| Thread: | G 1/4" |
| In stock: | External warehouse |
