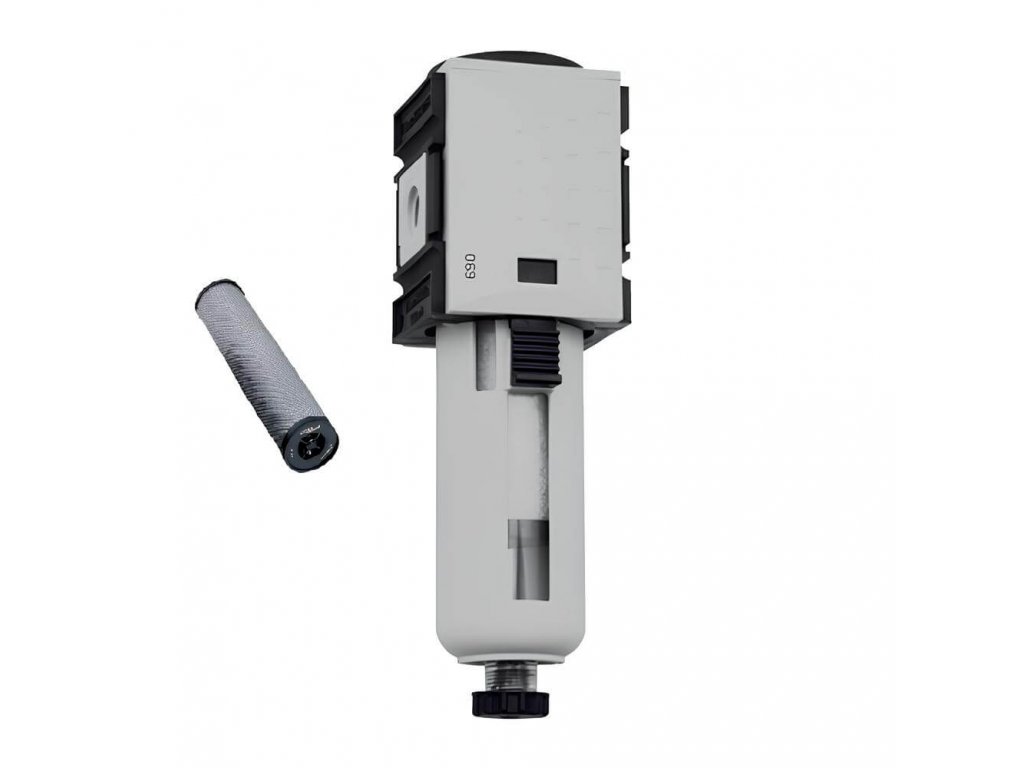

Activated carbon filter FUTURA FA38-F - G 3/8" 470 l/min · size 1 · ATEX
Code: FA38-F FA38-F-M Choose variant
Related products
Product detailed description
The activated carbon filter removes odours and oil vapours from compressed air. The residual oil content is 0.005 mg/m³, class 0 according to ISO 8573-1. It does not drain condensate; its bowl has no drain.
Specifications
| FA38-F — specifications | |
|---|---|
| Type | Activated carbon filter |
| Connection | G 3/8" female thread |
| Size | 1 (module width 52 mm) |
| Inlet pressure | 0–16 bar |
| Flow | 470 l/min |
| Pressure drop | 0.2 bar |
| Residual oil | 0.005 mg/m³ |
| Bowl volume | 12 cm³ |
| Bowl | plastic, metal as a variant |
| Condensate drain | no drain |
| Spare filter element | FA38-FV |
| Width × height | 52 × 157 mm |
| Material | glass-fibre reinforced polyamide body, NBR seals |
| Working temperature | −10 to +50 °C |
| Medium | compressed air and neutral gases |
| Potentially explosive atmospheres | yes, zones 1, 2, 21 and 22, T4 |
Versions
Choose the version at the top of the page. Each version has its own order number.
What it is for
It goes at the end of the filtration, after the 5 µm filter, pre-filter and microfilter, for example in painting, the food industry or laboratories. Size 1 is suitable for tools and smaller machines.
Parts for this size: spare filter element FA38-FV · replacement bowl BFA1F, BFMA1F · bowl sealing ring OR1F · mounting bracket W1F · connection kit KP1F · connection kit with wall bracket KPW1F · threaded wall brackets WK1-38F.
Potentially explosive atmospheres
A mechanical device with no ignition source of its own. According to the declaration regarding Directive 2014/34/EU, you can use it in zones 1 and 2 (gases IIA, IIB, IIC) and 21 and 22 (dust IIIA, IIIB), temperature class T4, under the conditions described for the FUTURA range. We will send you the declaration on request.
Ventilek’s tip
The carbon becomes saturated. When an odour appears in the air again, it is time to replace the element.
Additional parameters
| Category: | FUTURA filters, pre-filters and microfilters for ATEX environments up to 16 bar |
|---|---|
| Version: | Filter |
| Pressure: | 16 bar |
| Dimensions: | 157 × 52 mm |
| Certification: | ATEX |
| Filter insert: | Replacement insert (FA38-FV) |
| Medium: | Compressed air |
| Vessel volume: | 12 cm3 |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 470 l/min |
| Thread: | G 3/8" |
| In stock: | In store, External warehouse |
