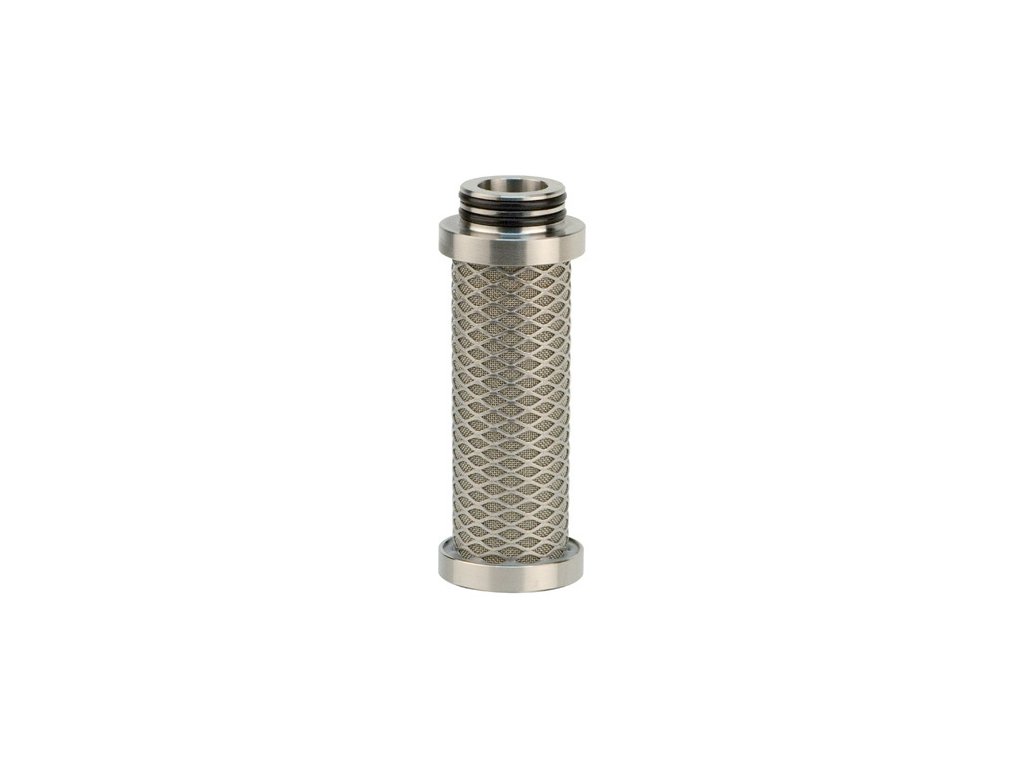

Spare element PFN5-070V – 5 micron stainless steel mesh for PF, HPF, WFIT, WFIF, WFIW, WHFIT and SPF filters of size 070
Code: PFN5-070V
Related products
Product detailed description
Spare element PFN5-070V for the PFN5-070, HPFN5-070, WFITN5-070, WFIFN5-070, WFIWN5-070, WHFITN5-070 and SPFN5-070 basic filters.
The element traps solid contaminants larger than 5 µm.
Specifications
| Parameter | Value |
|---|---|
| Filtration rating | 5 µm |
| Element material | stainless steel mesh 1.4301 |
| Element design | wrapped |
| Element temperature | +1.5 to +150 °C |
| Size | 070 |
| Element replacement | at least once every 12 months |
Which filters it fits
The element fits filters of all ranges with the same size and stage:
| Filter | Range | Connection | Flow at 7 bar | Number of elements |
|---|---|---|---|---|
| PFN5-070 | PF, 14 bar | G 1 1/2" (female pipe thread) | 10,000 l/min | 1 |
| HPFN5-070 | HPF, 50 bar | G 1 1/2" (female pipe thread) | 10,000 l/min | 1 |
| WFITN5-070 | WFIT, 14 bar | G 1 1/2" (female pipe thread) | 10,000 l/min | 1 |
| WFIFN5-070 | WFIF, 14 bar | DN40 flange | 10,000 l/min | 1 |
| WFIWN5-070 | WFIW, 14 bar | welding end for a ø 48.3 mm pipe | 10,000 l/min | 1 |
| WHFITN5-070 | WHFIT, 50 bar | G 1 1/2" (female pipe thread) | 10,000 l/min | 1 |
| SPFN5-070 | SPF, 14 bar | G 1 1/2" (female pipe thread) | 10,000 l/min | 1 |
Element replacement
Replace the element at least once every 12 months. Depressurise the filter before replacing it, and once a year also check the housing for visible damage.
You will find elements for the other stages and sizes among the spare elements for process filters.
Additional parameters
| Category: | Filtration, regulation and treatment of compressed air |
|---|---|
| Filtration: | 5 µm |
| Filter insert: | PFN5-070V |
| Working temperature: | +1.5 / +150 °C |
| Flow: | 10,000 l/min |
| Product type: | Filter element |
| Filtration stage: | Basic filter 3–5 µm |
