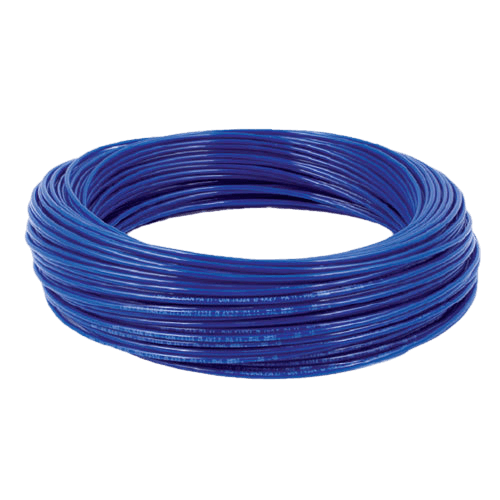

PUJ polyurethane tubing for compressed air

PUJ polyurethane tubes are flexible plastic tubes for compressed air in automation, instrumentation and control engineering, and wherever the tube has to move with a moving part of a machine.
They withstand a working pressure of 10 bar and resist ozone, vibration and ageing well. The series comes in six diameters from 4 to 16 mm and in six colours, so every branch on a machine can be identified by its colour.
Diameters, colours and order codes
Tube size is given as outer / inner diameter in millimetres. The outer diameter must match the push-in fitting, while the inner diameter determines how much air the tube can carry. The picture shows all six diameters to the same scale.

| PUJ tubes — 6 diameters × 6 colours | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter D/d | Wall | Weight | Roll | Blue | Clear | Black | Red | Yellow | Green |
| 4/2.5 mm | 0.75 mm | 9 g/m | 200 m | PUJ425B | PUJ425N | PUJ425S | PUJ425R | PUJ425Y | PUJ425G |
| 6/4 mm | 1 mm | 19 g/m | 200 m | PUJ64B | PUJ64N | PUJ64S | PUJ64R | PUJ64Y | PUJ64G |
| 8/5.5 mm | 1.25 mm | 32 g/m | 100 m | PUJ855B | PUJ855N | PUJ855S | PUJ855R | PUJ855Y | PUJ855G |
| 10/6.5 mm | 1.75 mm | 54 g/m | 100 m | PUJ1065B | PUJ1065N | PUJ1065S | PUJ1065R | PUJ1065Y | PUJ1065G |
| 12/8 mm | 2 mm | 76 g/m | 100 m | PUJ128B | PUJ128N | PUJ128S | PUJ128R | PUJ128Y | PUJ128G |
| 16/11 mm | 2.5 mm | 131 g/m | 100 m | PUJ1611B | PUJ1611N | PUJ1611S | PUJ1611R | PUJ1611Y | PUJ1611G |
We sell the tubes by the metre, so you only enter the length you need. A full roll is 200 m for the 4 and 6 mm diameters and 100 m for the others. All diameters have a working pressure of 10 bar at 20 °C.
#showmore#
Which diameter to choose
The diameter depends on the fitting on the valve or air consumer and on how much air it needs. Here is what each diameter is typically used for.

4/2.5 mm
Control air, small valves, sensors and measuring connections. It is the thinnest in the series and fits even into tight spaces. You will find other tubes of this diameter in the overview of 4 mm tubing.

6/4 mm
The most common diameter in pneumatics: it distributes air to valves and smaller cylinders. There are fittings for it in every design. For a comparison with other materials, see the overview of 6 mm tubing.

8/5.5 mm
For larger cylinders and longer lines, where a 6 mm diameter already slows movement down. The 1.25 mm wall holds its shape even in a bend. Other series in this diameter are in the overview of 8 mm tubing.

10/6.5 mm
Supply to valve terminals and to a group of consumers on one machine. The thicker 1.75 mm wall copes well with rubbing against the frame. More options are in the overview of 10 mm tubing.

12/8 mm
The main supply branch of a machine, from the air preparation unit to the manifold. With an inner diameter of 8 mm, it carries considerably more air than 8/5.5. Other materials in the same diameter are in the overview of 12 mm tubing.

16/11 mm
The largest in the series: a short supply line from the air network to a machine or to a demanding consumer. To cut it to length, you need a tube cutter with a capacity of up to 20 mm. You will find a comparison in the overview of 16 mm tubing.
Six colours: what each one is for
Colour does not change the properties of the tube: all colours have the same pressure and temperature ratings. It does, however, show at a glance where each branch leads, which shortens the search during repairs.






Working pressure drops as temperature rises
Polyurethane softens as the temperature rises. The 10 bar rating applies at 20 °C, so in warmer surroundings allow for a lower pressure. At 60 °C, the upper limit of the working temperature, the tube withstands just under half.

| Temperature | Share of rated pressure | Working pressure |
|---|---|---|
| 20 °C | 100 % | 10 bar |
| 30 °C | 83 % | 8.3 bar |
| 40 °C | 72 % | 7.2 bar |
| 50 °C | 64 % | 6.4 bar |
| 60 °C | 47 % | 4.7 bar |
If a machine runs in the heat for long periods and needs full pressure, go for polyamide tubing. One example that works up to +100 °C is the PA12 Longlife series.
Fittings, cutters and protection
PUJ tubes are pushed into push-in fittings. Cut the tube square with a sharp tube cutter so that the cut is straight and free of burrs, then push it into the fitting as far as it will go. To release it, press the fitting’s release ring.

Plastic push-in fittings
Straight, T, L, bulkhead and threaded fittings for every diameter in the series from 4 to 16 mm.
View
Miniature fittings
Small fittings for 4 and 6 mm tubes where space is tight.
View
Brass push-in fittings
A more robust metal design for diameters from 4 to 12 mm.
View
Tube cutters
A square, burr-free cut so that the fitting seals. For the 16 mm diameter, choose a cutter with a capacity of up to 20 mm.
ViewWhen to choose a different tube

Higher pressure in small diameters
A working pressure of 7 to 22 bar depending on size and wall, up to 22 bar for 4/2 mm, and use from −40 °C are offered by Elastollan C-98 tubing.

Outdoors in the sun
For lines exposed to UV radiation, and also to frost down to −40 °C, there is the UV-resistant PU series.

Heat and high pressure
Polyamide is harder and withstands 27 bar in the 6/4 mm size. For longer straight runs, the right choice is therefore the PA11 Rilsan series.

Supply to tools
For hand tools and blow guns, a hose that retracts by itself after use is more practical: the PUBJ spiral hose.

A bundle of tubes
Several tubes running side by side can be protected and bundled together with a protective spiral.
Ventilek’s tip
Colour costs nothing, searching does. When every branch has its own colour, you find the right one in seconds during a repair and never mix up the supply with the outlet.
- What does the size 6/4 mean?
- The first number is the outer diameter and the second the inner diameter, both in millimetres. A 6/4 tube therefore has an outer diameter of 6 mm and a wall 1 mm thick. The fitting is chosen by the outer diameter.
- What pressure can a PUJ tube withstand?
- The working pressure is 10 bar at 20 °C for all diameters, and the burst pressure is 30 bar. The working pressure falls as the temperature rises, to 4.7 bar at 60 °C.
- Can I use PUJ tubing for water?
- Yes, the technical data sheet lists both air and water as media. The same pressure and temperature limits apply as for air.
- Do you also sell lengths shorter than a full roll?
- Yes, we sell the tubes by the metre. A full roll is 200 m for the 4 and 6 mm diameters and 100 m for the others.
- Do the colours differ in quality?
- No. All six colours have the same material, dimensions, pressure and temperature ratings. The colour only serves to tell circuits apart.
Data according to the technical data sheet and catalogue sheet for the PUJ series: working pressure 10 bar and burst pressure 30 bar at 20 °C, working temperature −20 to +60 °C, media air and water, material polyurethane PU. Pressure reduction with temperature according to the catalogue for polyurethane tubing.
Product sorting
List of products
Black 8/5.5 mm polyurethane tube from the PUJ series. Flexible, resistant to ozone and vibration, 10 bar.
Clear PUJ polyurethane tube 12/8 mm for heavy supply lines where you want to check the flow. 2 mm wall, 10 bar.
Clear PUJ polyurethane tube 10/6.5 mm. Transparent 1.75 mm wall, working pressure 10 bar, sold by the metre.
Clear PUJ polyurethane tube 6/4 mm. Transparent wall, working pressure 10 bar, sold by the metre or in a 200 m roll.
Blue 6/4 mm polyurethane tube, the most common size for pneumatic valves and cylinders. 10 bar, 200 m roll.
Red PUJ polyurethane tube 6/4 mm for marking important circuits. Working pressure 10 bar, −20 to +60 °C.
Blue 4/2.5 mm polyurethane tube for control air and small pneumatic components. Working pressure 10 bar, sold by the metre.
Black 6/4 mm polyurethane tube for pneumatic systems on machines. Flexible and resistant to vibration, 10 bar.
Clear PUJ polyurethane tube 8/5.5 mm. You can see what flows through it. 10 bar, −20 to +60 °C, sold by the metre.
Blue 10/6.5 mm polyurethane tube for supplying valve terminals and groups of consumers. 10 bar.
Green PUJ polyurethane tube 10/6.5 mm for another circuit on a machine. Flexible, 10 bar, sold by the metre.
Blue 12/8 mm polyurethane tube for machine supply branches. Inner diameter 8 mm, working pressure 10 bar.
Green PUJ polyurethane tube 8/5.5 mm for telling circuits apart. 1.25 mm wall, working pressure 10 bar.
Red 10/6.5 mm polyurethane tube from the PUJ series for marking the main branch of a machine. 10 bar, −20 to +60 °C.
Yellow PUJ polyurethane tube 6/4 mm, easy to see on a machine. 10 bar, sold by the metre or in a 200 m roll.
Yellow PUJ polyurethane tube 8/5.5 mm, striking and flexible. 10 bar, −20 to +60 °C, sold by the metre.
Blue PUJ polyurethane tube 16/11 mm, the largest diameter in the series, for the supply to a machine. 10 bar, 2.5 mm wall.
Red PUJ polyurethane tube 8/5.5 mm for clearly marking a supply line. Working pressure 10 bar.
Green 6/4 mm polyurethane tube from the PUJ series. Standard pneumatic diameter, 10 bar, −20 to +60 °C.
Red PUJ polyurethane tube 16/11 mm for marking the main supply of a machine. Working pressure 10 bar.
Yellow 12/8 mm polyurethane tube from the PUJ series, visible across the whole hall. 2 mm wall, 10 bar.
Clear PUJ polyurethane tube 4/2.5 mm. The transparent wall shows whether water or oil is passing through the tube.
Green PUJ polyurethane tube 4/2.5 mm for telling control circuits apart. Flexible, 10 bar, −20 to +60 °C.
Black PUJ polyurethane tube 12/8 mm for supply branches. Resistant to ozone, vibration and ageing, 10 bar.
Red PUJ polyurethane tube 4/2.5 mm for clearly marking a control or emergency branch. 10 bar, −20 to +60 °C.
Red PUJ polyurethane tube 12/8 mm for clearly marking the main supply. Working pressure 10 bar.
Black PUJ polyurethane tube 10/6.5 mm for heavier supply lines on machines. Resistant to abrasion and ageing, 10 bar.
Black 16/11 mm polyurethane tube from the PUJ series for heavy supply lines. 2.5 mm wall, 10 bar, −20 to +60 °C.
Black 4/2.5 mm polyurethane tube, flexible and resistant to ozone and ageing. For machine control circuits, 10 bar.
Clear PUJ polyurethane tube 16/11 mm, the largest in the series. Transparent 2.5 mm wall, working pressure 10 bar.
Green PUJ polyurethane tube 12/8 mm for distinguishing a heavy branch. Working pressure 10 bar, −20 to +60 °C.
Green PUJ polyurethane tube 16/11 mm for distinguishing another heavy supply line. Working pressure 10 bar.
Yellow PUJ polyurethane tube 10/6.5 mm for visible supply lines. 1.75 mm wall, working pressure 10 bar.
Yellow PUJ polyurethane tube 16/11 mm, easy to see across the hall. 2.5 mm wall, 10 bar, sold by the metre.
Yellow 4/2.5 mm polyurethane tube, easy to see even in a dark part of a machine. Working pressure 10 bar.
Blue PUJ polyurethane tube 8/5.5 mm for larger cylinders and longer lines. Working pressure 10 bar, 1.25 mm wall.
