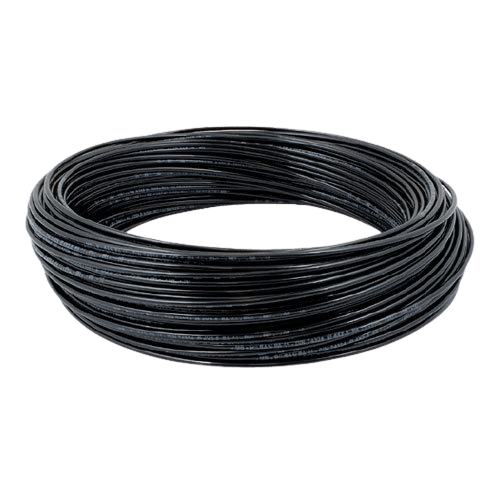

PA11 Rilsan polyamide tubing for compressed air

PA11 Rilsan polyamide tubes are rigid plastic tubes for compressed air with high pressure resistance. They are suited to longer straight runs in automation, instrumentation and control engineering, and wherever a flexible polyurethane tube is not enough.
They withstand moisture, salt water, oils, chemicals and ageing, and work from −40 to +80 °C. The series has 26 metric and 3 inch sizes from 3 to 22 mm and seven colours.
Sizes, pressures and order codes
Tube size is given as outer / inner diameter in millimetres. For the same outer diameter, you choose the wall thickness: a thicker wall withstands a higher pressure, a thinner one lets more air through. The table gives the working pressure at 20 °C, the burst pressure and the minimum bend radius.
| PA11 Rilsan tubes — sizes and colours | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter D/d | Wall | Working pressure | Burst pressure | Bend radius | Weight | Roll | Azure | Blue | Clear | Black | Red | Yellow | Green |
| 3/1.5 mm | 0.75 mm | 44 bar | 133 bar | 12 mm | 5 g/m | 100 m | – | – | PR315N | PR315S | PR315R | – | – |
| 3/2 mm | 0.5 mm | 27 bar | 80 bar | 15 mm | 4 g/m | 100 m | – | – | PR32N | – | – | – | – |
| 4/2 mm | 1 mm | 44 bar | 133 bar | 20 mm | 10 g/m | 100 m | PR42A | PR42B | PR42N | PR42S | PR42R | PR42Y | PR42G |
| 4/2.5 mm | 0.75 mm | 31 bar | 92 bar | 20 mm | 8 g/m | 100 m | PR425A | PR425B | PR425N | PR425S | PR425R | PR425Y | PR425G |
| 4/2.7 mm | 0.65 mm | 26 bar | 78 bar | 25 mm | 7 g/m | 100 m | PR427A | PR427B | PR427N | PR427S | PR427R | PR427Y | PR427G |
| 4/3 mm | 0.5 mm | 19 bar | 57 bar | 25 mm | 5 g/m | 100 m | PR43A | PR43B | PR43N | PR43S | PR43R | PR43Y | PR43G |
| 5/3 mm | 1 mm | 33 bar | 100 bar | 25 mm | 13 g/m | 100 m | PR53A | PR53B | PR53N | PR53S | PR53R | – | PR53G |
| 6/3 mm | 1.5 mm | 44 bar | 133 bar | 30 mm | 22 g/m | 100 m | – | – | PR63N | PR63S | – | – | – |
| 6/4 mm | 1 mm | 27 bar | 80 bar | 35 mm | 17 g/m | 100 m | PR64A | PR64B | PR64N | PR64S | PR64R | PR64Y | PR64G |
| 7/5 mm | 1 mm | 22 bar | 67 bar | 38 mm | 19 g/m | 100 m | – | PR75B | PR75N | PR75S | – | PR75Y | – |
| 8/4 mm | 2 mm | 44 bar | 133 bar | 40 mm | 39 g/m | 100 m | – | – | PR84N | PR84S | – | – | – |
| 8/5 mm | 1.5 mm | 31 bar | 92 bar | 40 mm | 32 g/m | 100 m | – | PR85B | PR85N | PR85S | PR85R | – | – |
| 8/6 mm | 1 mm | 19 bar | 57 bar | 40 mm | 23 g/m | 100 m | PR86A | PR86B | PR86N | PR86S | PR86R | PR86Y | PR86G |
| 10/6 mm | 2 mm | 33 bar | 100 bar | 60 mm | 52 g/m | 100 m | PR106A | PR106B | PR106N | PR106S | PR106R | PR106Y | PR106G |
| 10/6.5 mm | 1.75 mm | 28 bar | 85 bar | 60 mm | 47 g/m | 100 m | PR1065A | PR1065B | PR1065N | PR1065S | PR1065R | PR1065Y | PR1065G |
| 10/7 mm | 1.5 mm | 24 bar | 71 bar | 60 mm | 42 g/m | 100 m | – | PR107B | PR107N | PR107S | PR107R | PR107Y | PR107G |
| 10/8 mm | 1 mm | 15 bar | 44 bar | 60 mm | 30 g/m | 100 m | PR108A | PR108B | PR108N | PR108S | PR108R | PR108Y | PR108G |
| 12/8 mm | 2 mm | 27 bar | 80 bar | 60 mm | 65 g/m | 100 m | – | – | PR128N | PR128S | PR128R | PR128Y | PR128G |
| 12/9 mm | 1.5 mm | 19 bar | 57 bar | 70 mm | 51 g/m | 100 m | PR129A | PR129B | PR129N | PR129S | PR129R | PR129Y | PR129G |
| 12/10 mm | 1 mm | 12 bar | 36 bar | 85 mm | 36 g/m | 100 m | PR1210A | PR1210B | PR1210N | PR1210S | PR1210R | PR1210Y | PR1210G |
| 14/10 mm | 2 mm | 22 bar | 67 bar | 80 mm | 78 g/m | 100 m | – | PR1410B | PR1410N | PR1410S | PR1410R | PR1410Y | – |
| 14/12 mm | 1 mm | 10 bar | 31 bar | 90 mm | 42 g/m | 100 m | PR1412A | PR1412B | PR1412N | PR1412S | PR1412R | PR1412Y | PR1412G |
| 15/12 mm | 1.5 mm | 15 bar | 44 bar | 90 mm | 66 g/m | 100 m | PR1512A | PR1512B | PR1512N | PR1512S | PR1512R | – | – |
| 16/12 mm | 2 mm | 19 bar | 57 bar | 95 mm | 91 g/m | 100 m | – | PR1612B | PR1612N | PR1612S | PR1612R | PR1612Y | PR1612G |
| 18/14 mm | 2 mm | 17 bar | 50 bar | 100 mm | 104 g/m | 50 m | – | PR1814B | PR1814N | PR1814S | – | – | – |
| 22/18 mm | 2 mm | 13 bar | 40 bar | 200 mm | 130 g/m | 50 m | – | PR2218B | PR2218N | PR2218S | – | – | – |
Most versions are supplied only as a full 100 m roll, or 50 m for the 18 and 22 mm diameters. Some versions are also sold by the metre; the product page says which. The outer diameter tolerance is ±0.07 mm up to 10 mm and ±0.1 mm above 10 mm; the wall thickness tolerance is ±0.07 mm.
#showmore#
Same outer diameter, different wall
The outer diameter must match the fitting, but you choose the wall according to pressure and flow. The picture shows four tubes with an outer diameter of 4 mm to the same scale, each with its relative working pressure below it.


Thick wall
For high pressure and measuring lines where the flow is small. The thickest walls in the series withstand 44 bar.

Medium wall
The usual choice for pneumatic valves and cylinders. The 6/4 mm tube has a working pressure of 27 bar.

Thin wall
The largest inner diameter for flow, but a lower pressure. The 10/8 mm tube withstands 15 bar.
Seven colours to tell circuits apart
Colour does not change the properties of the tube. It helps to tell branches, pressures or media apart on a machine and shortens the search during repairs. Not every size comes in all colours; the table above gives an overview.
Working pressure by temperature
The pressures given apply at 20 °C. As the temperature rises, polyamide softens and the working pressure drops, to just under half at 80 °C. A 6/4 mm tube with a working pressure of 27 bar therefore withstands roughly 12.7 bar at 80 °C.

| Temperature | Share of pressure | Example 6/4 mm |
|---|---|---|
| 20 °C | 100 % | 27 bar |
| 30 °C | 83 % | 22.4 bar |
| 40 °C | 72 % | 19.4 bar |
| 50 °C | 64 % | 17.3 bar |
| 60 °C | 58 % | 15.7 bar |
| 70 °C | 52 % | 14 bar |
| 80 °C | 47 % | 12.7 bar |
For permanently higher temperatures, there is PTFE Teflon tubing.
Fittings, cutters and routing
Cut the rigid tube square with a sharp tube cutter so that the cut is straight, and push it into the fitting as far as it will go. When routing it, keep to the minimum bend radius from the table, otherwise the tube will kink and restrict the flow.

Plastic push-in fittings
Straight, T and L fittings and threaded fittings for outer diameters from 4 to 16 mm.
View
Brass push-in fittings
More robust metal fittings for outer diameters from 4 to 14 mm.
View
Compression fittings with union nut
A firm connection made for an exact tube size, such as 6/4 or 8/6 mm.
View
Tube cutters
Cutters up to 20 mm for the common diameters; for 22 mm, a cutter with a capacity of up to 30 mm.
ViewWhen to choose a different tube

Moving machine parts
Where the tube flexes constantly, a better choice is the flexible polyurethane PUJ series.

High temperature and chemicals
For hot media and aggressive chemicals, the right choice is PTFE Teflon tubing.
Ventilek’s tip
Rigid tubing belongs where nothing moves. For a long straight run along a machine, PA11 is ideal. For a moving cylinder, use softer polyurethane instead.
- What is the difference between PA11 and polyurethane tubing?
- PA11 polyamide is harder and withstands a much higher pressure: 27 bar in the 6/4 mm size compared with 10 bar for polyurethane. It is, however, less flexible, so it is mainly suited to straight runs.
- Why are there several variants with the same outer diameter?
- They differ in wall thickness. A thicker wall withstands a higher pressure, while a thinner one has a larger inner diameter and lets more air through. The fitting is chosen by the outer diameter.
- Up to what temperature can I use PA11 tubing?
- The working temperature is −40 to +80 °C. The working pressure drops as the temperature rises; at 80 °C, it is 47% of the value at 20 °C.
- How tightly can the tube be bent?
- The minimum bend radius for each size is given in the table, for example 35 mm for 6/4 mm. A tighter bend will kink the tube.
- Do you also sell lengths shorter than a full roll?
- Only for some versions. Most are supplied as a full 100 m roll, or 50 m for the 18 and 22 mm diameters, and some are also sold by the metre. The product page says which.
Data according to the catalogue and technical data sheets for PA11 tubing: working and burst pressure at 20 °C, bend radius, weight and roll length for each size, working temperature −40 to +80 °C, hardness 63 Shore D. Pressure reduction with temperature according to the same catalogue.
