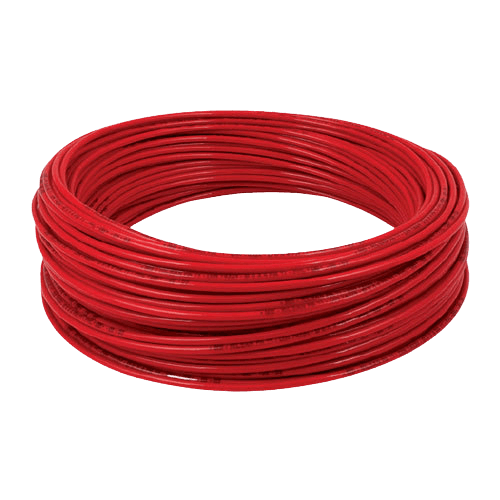

PUV UV-resistant polyurethane tubing

PUV polyurethane tubes are intended for compressed air systems outdoors and wherever the tube is exposed to UV radiation. They are made of Elastollan 1198 series granulate, which is intended for use in direct sunlight.
The range has five sizes from 4/2.5 to 12/8 mm in three colours: blue, clear and red. All of them are coloured and yet translucent. The working pressure is 10 to 12 bar depending on the diameter, the working temperature −40 to +60 °C.
Diameters, pressures and order codes
The tube size is given as outer / inner diameter in millimetres. The outer diameter must match the fitting, the inner one determines how much air the tube passes. The picture shows all five sizes to the same scale.

| PUV tubing — 5 sizes × 3 colours | ||||||||
|---|---|---|---|---|---|---|---|---|
| Diameter D/d | Wall | Working pressure | Burst pressure | Bend radius | Weight | Blue | Clear | Red |
| 4/2.5 mm | 0.75 mm | 12 bar | 37 bar | 20 mm | 9 g/m | PUV425B | PUV425N | PUV425R |
| 6/4 mm | 1 mm | 11 bar | 32 bar | 30 mm | 21 g/m | PUV64B | PUV64N | PUV64R |
| 8/5.5 mm | 1.25 mm | 10 bar | 30 bar | 40 mm | 30 g/m | PUV855B | PUV855N | PUV855R |
| 10/6.5 mm | 1.75 mm | 11 bar | 34 bar | 30 mm | 54 g/m | PUV1065B | PUV1065N | PUV1065R |
| 12/8 mm | 2 mm | 11 bar | 32 bar | 30 mm | 74 g/m | PUV128B | PUV128N | PUV128R |
The working pressure applies at 20 °C, the burst pressure is roughly three times higher. A full roll is 100 m for all sizes. Some versions are also sold by the metre, the others are supplied only as a full roll; this is stated on the product page. The manufacturing tolerance is ±0.07 mm on the outer and inner diameter and on the wall thickness.
#showmore#
Working pressure falls with temperature

Polyurethane softens as the temperature rises. The pressures in the table above apply at 20 °C. At 40 °C, the tube withstands 72 % of this value, at 60 °C, the upper limit of the working temperature, just under half.
If the tube works in warm conditions for long periods, set the system pressure according to the table below the chart. The lower limit of the working temperature is −40 °C.
| Working pressure of PUV tubes by temperature (bar) | ||||||
|---|---|---|---|---|---|---|
| Temperature | Share of pressure | 4/2.5 mm | 6/4 mm | 8/5.5 mm | 10/6.5 mm | 12/8 mm |
| 20 °C | 100 % | 12 | 11 | 10 | 11 | 11 |
| 30 °C | 83 % | 10 | 9.1 | 8.3 | 9.1 | 9.1 |
| 40 °C | 72 % | 8.6 | 7.9 | 7.2 | 7.9 | 7.9 |
| 50 °C | 64 % | 7.7 | 7 | 6.4 | 7 | 7 |
| 60 °C | 47 % | 5.6 | 5.2 | 4.7 | 5.2 | 5.2 |
Where it is permanently warmer than 60 °C, polyurethane is no longer sufficient. Up to +80 °C, use the range PA12 Longlife.
Which diameter to choose
The diameter is chosen according to the fitting on the valve or device and the required flow. Here is what the individual sizes are usually suitable for.

4/2.5 mm
Control air, sensors and measuring connections on outdoor equipment. The 12 bar working pressure is the highest in the range. Other tubes of the same diameter are in the overview of 4 mm tubes.

6/4 mm
The most common pneumatic size for valves and smaller cylinders. Working pressure 11 bar, bend radius 30 mm. A comparison with other materials is in the overview of 6 mm tubes.

8/5.5 mm
Higher flow for cylinders and longer lines. It has the lowest pressure in the range, 10 bar, and needs at least 40 mm to bend. Other ranges in this diameter are in the overview of 8 mm tubes.

10/6.5 mm
The thick 1.75 mm wall holds 11 bar and allows bending from as little as 30 mm. More options are in the overview of 10 mm tubes.

12/8 mm
The highest flow in the range for main outdoor supply lines. A 2 mm wall, 11 bar pressure and a 30 mm bend radius like the 10 mm tube. Other materials of the same diameter are in the overview of 12 mm tubes.
Three translucent colours
PUV tubes are coloured and yet translucent. The colour does not change the pressure, temperature or bend radius, but it helps you see at a glance where each branch leads.



Fittings, cutters and protection
PUV tubes are pushed into push-in fittings for diameters 4 to 12 mm. Cut the tube square with a sharp cutter so that the cut is straight and free of burrs, and push it into the fitting all the way to the stop.

Plastic push-in fittings
Straight, T, L, Y and threaded for all diameters of the range from 4 to 12 mm.
View
Brass push-in fittings
Metal version for diameters 4 to 12 mm.
View
Compression fittings with union nut
A secure joint for the exact tube size, from the PUV range for 4/2.5 and 6/4 mm.
View
Tube cutters
A square, burr-free cut so that the fitting seals all the way round.
ViewWhen to choose a different tube

Indoor systems
Where the sun does not shine on the tube, the basic range is enough: PUJ polyurethane.

Chemicals and high temperature
For aggressive environments and temperatures up to +260 °C, use PTFE Teflon tubes.

Higher pressure
Harder polyamide withstands more. A working pressure of 27 bar is offered by the 6/4 mm tube from the range PA11 Rilsan.

Two supply lines to a cylinder
Two supply lines to a cylinder or valve in one line are offered by twin polyurethane tubes.
Ventilek’s tip
Outdoors, choose the tube according to both the sun and the temperature. PUV withstands UV radiation and frost down to −40 °C; only in heat should you allow for a lower pressure.
- Why is the PUV tube suitable for outdoor use?
- It is made of Elastollan 1198 series granulate, which is intended for use outdoors in direct sunlight. The working temperature starts at −40 °C, so the tube also serves in winter.
- What pressure can the PUV tube withstand?
- At 20 °C, the working pressure is 10 to 12 bar depending on the size, the burst pressure is roughly three times higher. The pressure falls as the temperature rises, to 47 % at 60 °C.
- Are the coloured tubes transparent?
- Yes. All three colours are coloured and yet translucent. The clear tube has no colour tint.
- How does PUV differ from the PUJ tube?
- PUV is made of granulate intended for direct sunlight and works from −40 °C, PUJ from −20 °C. The working pressure is similar, 10 to 12 bar for PUV and 10 bar for PUJ. PUJ has six colours and diameters up to 16 mm.
- Do the colours differ in quality?
- No. All three colours have the same material, sizes, pressure and temperature. The colour only serves to tell circuits apart.
Data according to the catalogue and type sheet of the PUV range: dimensions, wall thickness, working pressure at 20 °C, burst pressure, bend radius and weight, pressure drop with temperature, working temperature −40 to +60 °C, hardness 49 to 55 °Sh, material polyurethane from Elastollan 1198 series granulate for use in direct sunlight.
