Indication of clogging of the filter element

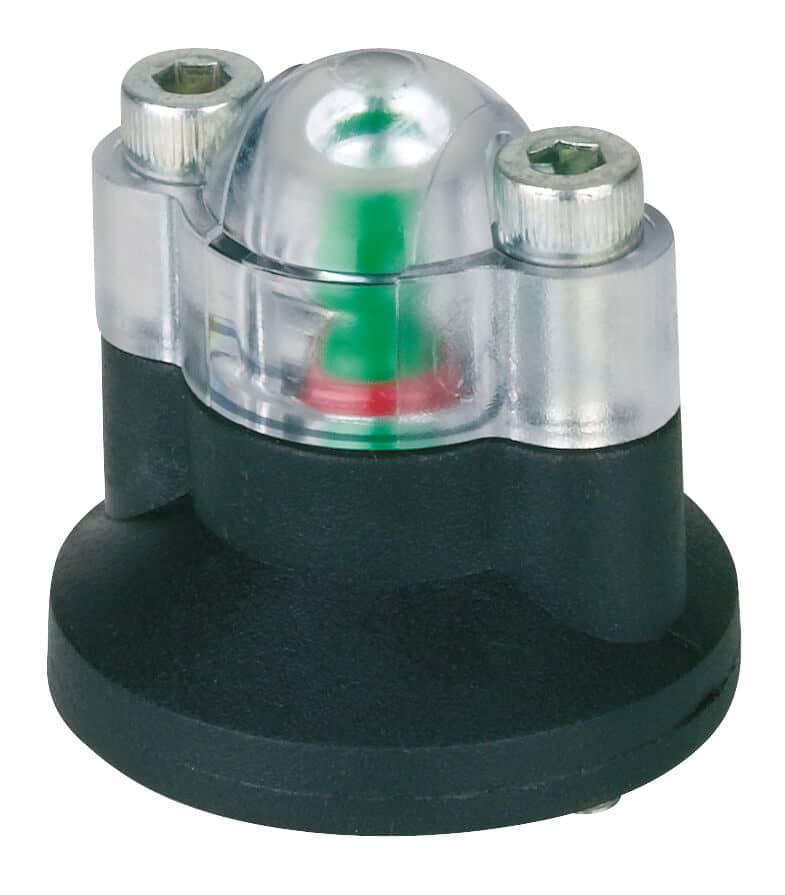

Air filter cartridge contamination indicator |
||
 |
|
|
| Order number | Green area bar |
Red area bar |
| PDI | 0 - 0,6 | 0,6 - 0,9 |

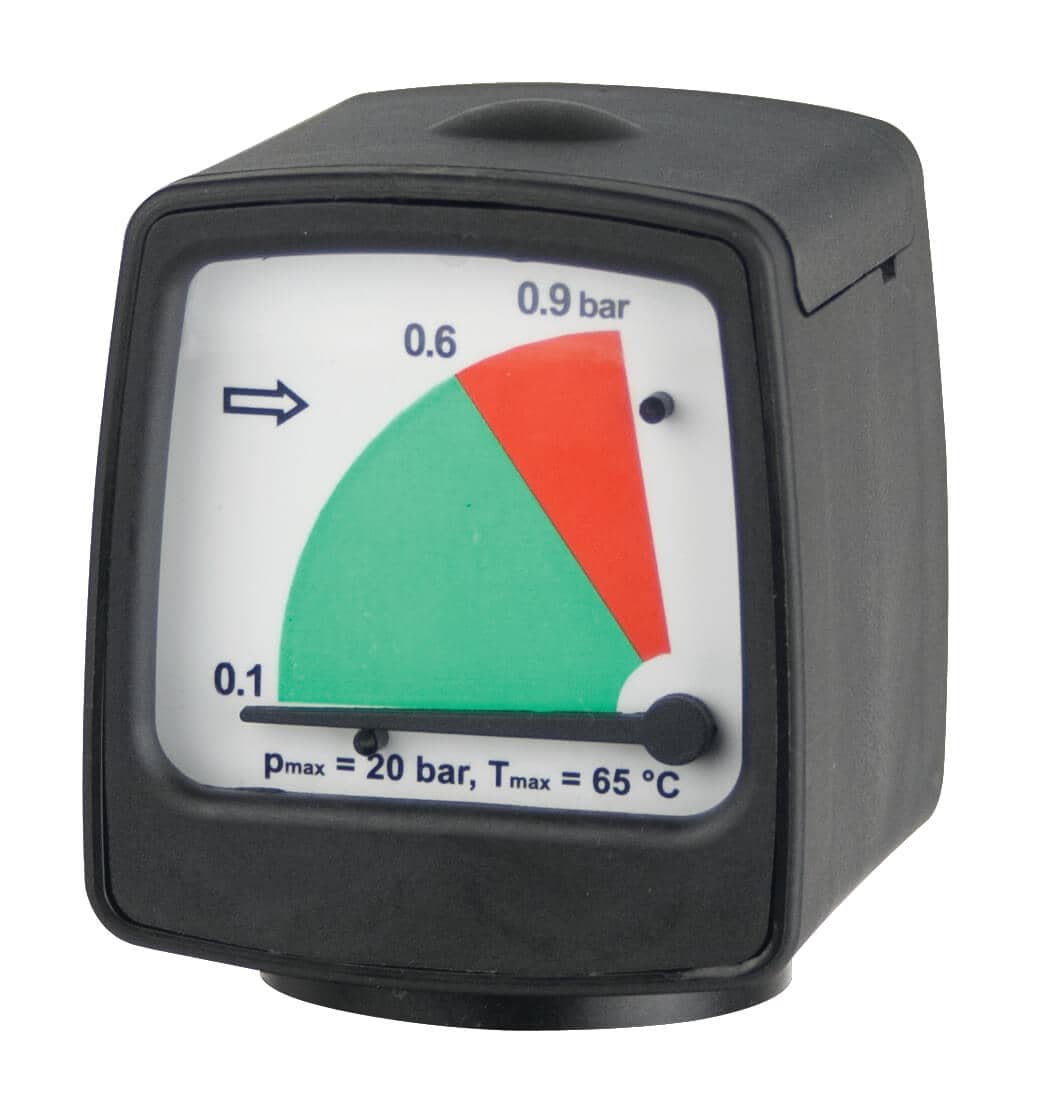

Differential pressure gauges MDM40 |
|||||
 |
|
||||
| Order number |
Pressure drop bar |
Maximum pressure bar |
Version | Diameter mm |
Dimensions mm |
| MDM40 | 0 to 0.9 | 16 | basic version | 40 mm | 54 × 54 |
| MDM40C | 0 to 0.9 | 16 | electrical contact | 40 mm | 54 × 54 |

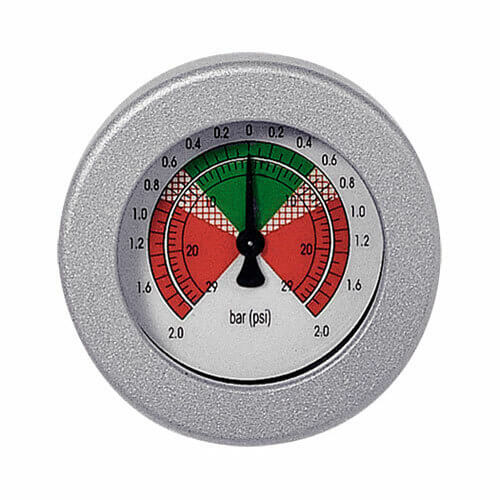

Differential pressure gauges MDA60 |
|||||
 |
|
||||
| Order number |
Pressure drop bar |
Maximum pressure bar |
Version | Diameter mm |
Dimensions mm |
| MDA60 | 0 to 2 | 20 | precise display | 63 mm | 80 x 80 |
Electronic pressure gauges EPG60 |
|||||
 |
|
||||
| Order number |
Pressure drop bar |
Maximum pressure bar |
Version | Diameter mm |
Dimensions mm |
| EPG60 | 0.07 to 1 | 16 | basic | - | 62 x 62 |
| EPG60-AO | 0.07 to 1 | 16 | with 4-20 mA analog output | - | 62 x 62 |
| EPG60-SN | 0.07 to 1 | 16 | with service connection | - | 62 x 62 |
Product sorting
List of products
MDM40 - basic version. Magnetic differential pressure gauges for displaying the approximate degree of clogging of the filter cartridge. Fitted with a dial with indicative scale...
Simple mechanical device for checking the condition of the filter cartridge. Contributes to reducing power consumption by alerting to a high pressure drop. If the filter...
Designed for precise display of the pressure differential value of the filter element. Dial with colored fields - red for indicating both clogging and rupture of the element....
Electronic pressure gauge designed to check and monitor the condition of the filter cartridge. The condition of the filter cartridge is determined by the pressure gradient, the...
Electronic pressure gauge designed to check and monitor the condition of the filter cartridge. The condition of the filter cartridge is determined by the pressure gradient, the...
The MDHI 50 differential pressure gauge shows the pressure drop of the filter element on HF filters with pressures up to 50 bar. Range 0 to 1 bar, 2 × G 1/8" connection,...
MDM40C - version with voltage-free electrical contact for remote alarm signalling. Magnetic differential pressure gauges for displaying the approximate state of filter cartridge...
The MDHI 50-K differential pressure gauge shows the pressure drop of the filter element on HF filters with pressures up to 50 bar. Range 0 to 1 bar, 2 × G 1/8" connection,...
Electronic pressure gauge designed to check and monitor the condition of the filter cartridge. The condition of the filter cartridge is determined by the pressure gradient, the...
