Stainless steel air treatment unit A1X AFRLX14 - G 1/4", 0.5–20 bar 1,850 l/min · max. inlet pressure 30 bar
Code: AFRLX14
Related products
Product detailed description
The two-piece A1X unit with a G 1/4" thread consists of a filter regulator and a lubricator, assembled and made entirely of AISI 316 stainless steel. It cleans the air with a 5 µm element, reduces it to a pressure set within the 0.5–20 bar range and adds oil mist to it. It withstands an inlet pressure of up to 30 bar.
Specifications
| AFRLX14 — specifications | |
|---|---|
| Connection | G 1/4" |
| Max. inlet pressure | 30 bar |
| Setting range | 0.5–20 bar |
| Flow at 6 bar | 1,850 l/min (with a 40 µm element; with the 5 µm element fitted as standard, it is lower) |
| Working temperature | −10 to +70 °C |
| Filter element | 5 µm, stainless steel |
| Bowl volume | filter 105 cm³, lubricator 125 cm³ |
| Condensate drain | semi-automatic — the condensate is released when the pressure in the bowl drops |
| Regulator | piston type, with relief (M5 port) |
| Pressure gauge | stainless steel, included; 1/8" port |
| Recommended oil | ISO VG 32 (ISO 3448), can be topped up even during operation |
| Material | body, covers, bowls and element made of AISI 316 stainless steel, FKM seals |
| Weight | 2.66 kg |
| Included | stainless steel pressure gauge, stainless steel mounting bracket with screws |
| Mounting | upright, in the direction of the arrow |
What it is for
It suits places where aluminium or plastic would corrode: the food industry, chemicals, laboratories, outdoor installations and near the sea. The stainless steel bowls resist corrosion and chemicals and withstand high pressure.
Maintenance
The condensate leaves by itself after the pressure in the bowl drops; in continuous operation, drain it from time to time. Check the stainless steel element and clean it when it is clogged. The regulator needs no regular maintenance. When it does not hold the set pressure or air escapes continuously from the relief, it is time for an inspection. Check the oil level and top up the oil in good time, even during operation. Use ISO VG 32 oil.
Other components of the range in the same size
AFRX14 stainless steel filter regulator · ARX14 stainless steel pressure regulator · AFX14 stainless steel compressed air filter · ALX14 stainless steel lubricator.
Ventilek’s tip
The limit is temperature, not stainless steel. The stainless steel body withstands a lot, but the seals and the regulator are designed for −10 to +70 °C. In its standard version, the unit is not suitable for frost below −10 °C.
Additional parameters
| Category: | A1X stainless steel air treatment units (AISI 316) |
|---|---|
| Version: | Complete unit |
| Pressure: | 30 bar |

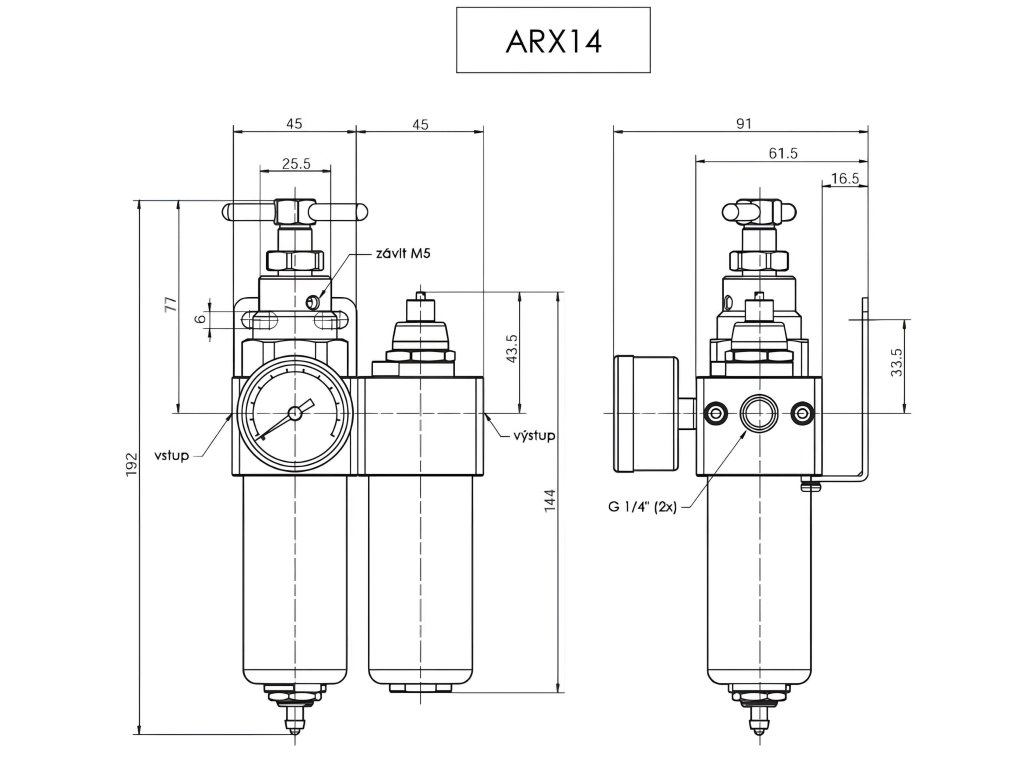

| Dimensions: | 90 × 45 × 192 mm |
| Filtering ability: | 5 µm |
| Material: | Stainless steel AISI316 |
| Medium: | Compressed air |
| Vessel volume: | filter 105 cc, oiler 125 cc |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / +70 °C |
| Flow: | 1,850 l/min |
| Regulatory range: | 0.5 - 20 bar |
| Pressure gauge range: | 0 - 40 bar |
| Included in delivery: | Manometer, mounting bracket |
| Thread: | G 1/4" |
| Thread for manometer: | 1/8" |
