A1X stainless steel air treatment units (AISI 316)

The A1X range is made entirely of AISI 316 stainless steel — body, covers, bowls and filter element. It suits places where aluminium or plastic would corrode: the food industry, chemicals, laboratories, outdoor installations and near the sea.
The filter, pressure regulator and lubricator come in sizes G 1/4", 1/2" and 1" — separately, as a filter regulator and as an assembled unit. They withstand an inlet pressure of up to 60 bar (size 1/4": 30 bar).
What to choose
All components of the range have the same connection for a given size, and a stainless steel mounting bracket is included.

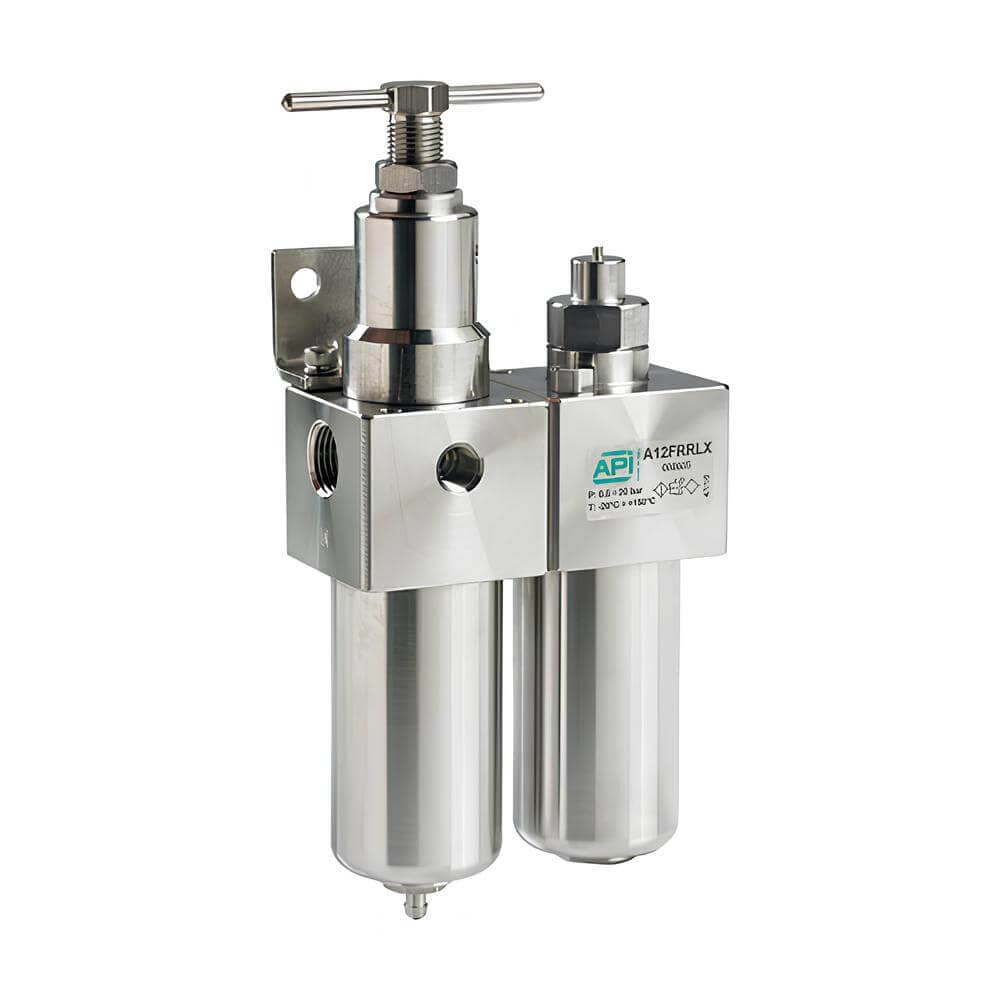

Air treatment unit (AFRLX)
Filter regulator and lubricator, assembled. Clean air at a constant pressure with oil mist.

Filter regulator (AFRX)
A 5 µm filter and a pressure regulator in one body, for consumers that do not need lubrication.

Individual devices
Filter (AFX), pressure regulator (ARX) and lubricator (ALX) separately, for example to add to an existing air line.
Overview by size
Each code is one product page.
| Flow at 6 bar (l/min) | |||
|---|---|---|---|
| Device | G 1/4" | G 1/2" | G 1" |
| Unit* | 1,850 | 2,500 | 8,000 |
| Filter regulator* | 1,850 | 3,800 | 8,900 |
| Regulator | 1,850 | 2,520 | 9,400 |
| Filter* | 1,900 | 3,030 | 9,600 |
| Lubricator | 2,500 | 4,100 | 13,200 |
* The manufacturer states the flow with a 40 µm element; with the 5 µm element fitted in the filter as standard, it is lower.
#showmore#
Pressure and temperature
Size 1/4" withstands an inlet pressure of 30 bar, and its pressure is set within a range of 0.5–20 bar. Sizes 1/2" and 1" withstand 60 bar with a range of 0.5–12 bar.
The working temperature is −10 to +70 °C. The limit is not the stainless steel but the FKM seals and the regulator — in the standard version, A1X devices are not suitable for frost below −10 °C.
Filtration and condensate drain
The filters have a 5 µm stainless steel element. Depending on the size, the filter bowl holds 105, 110 or 200 cm³, and the condensate leaves it semi-automatically — when the pressure in the bowl drops, for example after the supply is shut off. In continuous operation, therefore, drain it from time to time.
Pressure regulation
The regulators are of the piston type, with relief: when the pressure after the regulator rises above the set value, the excess escapes through the M5 port. Where air must not escape into the surroundings, connect a hose to it.
Every regulator, filter regulator and unit comes with a stainless steel pressure gauge. The gauge port is 1/8" on size 1/4" and 1/4" on sizes 1/2" and 1".
Oil
The lubricator has a 125, 130 or 220 cm³ bowl. Oil can be topped up even during operation, without shutting off the supply. The manufacturer recommends oil with an ISO VG 32 viscosity.
Mounting
Mount the devices upright, in the direction of the arrow on the body. A stainless steel mounting bracket with screws is included with every component of the range.
When to choose another range
If the environment does not require stainless steel, basic A2 air treatment units are enough. For high flow rates, there are STANDARD air treatment units.
Ventilek’s tip
Stainless steel for the environment, not for temperature. The A1X range withstands humidity, chemicals and outdoor installation, but its working temperature is −10 to +70 °C. It is not suitable for heat or frost outside this range.
- What are A1X devices made of?
- The body, covers, bowls and filter element are made of AISI 316 stainless steel; the seals are FKM.
- What pressure can they withstand?
- Size 1/4" withstands 30 bar at the inlet, sizes 1/2" and 1" 60 bar. You set the regulator within 0.5–20 bar (1/4") or 0.5–12 bar (1/2" and 1").
- What is the working temperature?
- −10 to +70 °C.
- Is a pressure gauge included?
- Yes, a stainless steel pressure gauge comes with the regulator, the filter regulator and the unit. A stainless steel mounting bracket comes with all components of the range.
- Which oil goes into the lubricator?
- The manufacturer recommends oil with an ISO VG 32 viscosity. It can be topped up even during operation.
Compressed air, inlet pressure up to 30 bar (1/4") or 60 bar (1/2" and 1"), temperature −10 to +70 °C, AISI 316 stainless steel, FKM seals, upright mounting.
Bestsellers
Product sorting
List of products
Stainless steel 5 µm filter with a 0.5–12 bar regulator and lubricator, G 1", inlet up to 60 bar, flow 8,000 l/min. Stainless steel pressure gauge and mounting bracket included.
Stainless steel 5 µm filter with a 0.5–12 bar regulator and lubricator, G 1/2", inlet up to 60 bar, flow 2,500 l/min. Stainless steel pressure gauge and mounting bracket included.
Stainless steel 5 µm filter with a 0.5–20 bar regulator and lubricator, G 1/4", inlet up to 30 bar, flow 1,850 l/min. Stainless steel pressure gauge and mounting bracket included.
Stainless steel filter with a 5 µm element and a 200 cm³ bowl, G 1", inlet up to 60 bar, semi-automatic condensate drain. Mounting bracket included.
Stainless steel filter with a 5 µm element and a 110 cm³ bowl, G 1/2", inlet up to 60 bar, semi-automatic condensate drain. Mounting bracket included.
Stainless steel filter with a 5 µm element and a 105 cm³ bowl, G 1/4", inlet up to 30 bar, semi-automatic condensate drain. Mounting bracket included.
Stainless steel 5 µm filter and 0.5–12 bar regulator in one body, G 1", inlet up to 60 bar, flow 8,900 l/min. Stainless steel pressure gauge and mounting bracket included.
Stainless steel 5 µm filter and 0.5–12 bar regulator in one body, G 1/2", inlet up to 60 bar, flow 3,800 l/min. Stainless steel pressure gauge and mounting bracket included.
Stainless steel 5 µm filter and 0.5–20 bar regulator in one body, G 1/4", inlet up to 30 bar, flow 1,850 l/min. Stainless steel pressure gauge and mounting bracket included.
Stainless steel lubricator with a 220 cm³ bowl, G 1", inlet up to 60 bar, flow 13,200 l/min, oil can be topped up during operation. Mounting bracket included.
Stainless steel lubricator with a 130 cm³ bowl, G 1/2", inlet up to 60 bar, flow 4,100 l/min, oil can be topped up during operation. Mounting bracket included.
Stainless steel lubricator with a 125 cm³ bowl, G 1/4", inlet up to 30 bar, flow 2,500 l/min, oil can be topped up during operation. Mounting bracket included.
Stainless steel 0.5–12 bar piston regulator with relief, G 1", inlet up to 60 bar, flow 9,400 l/min. Stainless steel pressure gauge and mounting bracket included.
Stainless steel 0.5–12 bar piston regulator with relief, G 1/2", inlet up to 60 bar, flow 2,520 l/min. Stainless steel pressure gauge and mounting bracket included.
Stainless steel 0.5–20 bar piston regulator with relief, G 1/4", inlet up to 30 bar, flow 1,850 l/min. Stainless steel pressure gauge and mounting bracket included.
