Stainless steel filter regulator A1X AFRX10 - G 1", 0.5–12 bar 8,900 l/min · max. inlet pressure 60 bar
Code: AFRX10
Related products
Product detailed description

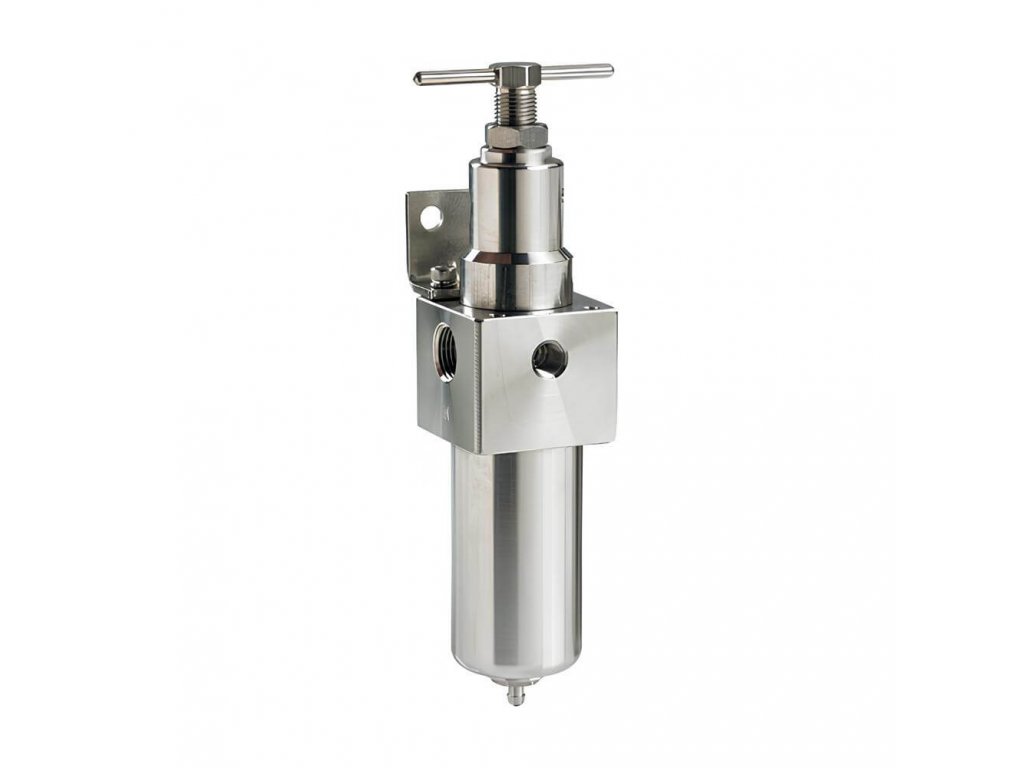

The A1X filter regulator with a G 1" thread is made entirely of AISI 316 stainless steel. It cleans the air with a 5 µm element and reduces it to a pressure set within the 0.5–12 bar range. It withstands an inlet pressure of up to 60 bar.
Specifications
| AFRX10 — specifications | |
|---|---|
| Connection | G 1" |
| Max. inlet pressure | 60 bar |
| Setting range | 0.5–12 bar |
| Flow at 6 bar | 8,900 l/min (with a 40 µm element; with the 5 µm element fitted as standard, it is lower) |
| Working temperature | −10 to +70 °C |
| Filter element | 5 µm, stainless steel |
| Bowl volume | 200 cm³ |
| Condensate drain | semi-automatic — the condensate is released when the pressure in the bowl drops |
| Regulator | piston type, with relief (M5 port) |
| Pressure gauge | stainless steel, included; 1/4" port |
| Material | body, covers, bowls and element made of AISI 316 stainless steel, FKM seals |
| Weight | 4.58 kg |
| Included | stainless steel pressure gauge, stainless steel mounting bracket with screws |
| Mounting | upright, in the direction of the arrow |
What it is for
It goes before consumers that need clean air at a constant pressure without oil, in environments where aluminium or plastic would corrode: the food industry, chemicals, laboratories, outdoor installations.
Maintenance
The condensate leaves by itself after the pressure in the bowl drops; in continuous operation, drain it from time to time. Check the stainless steel element and clean it when it is clogged. The regulator needs no regular maintenance. When it does not hold the set pressure or air escapes continuously from the relief, it is time for an inspection.
Other components of the range in the same size
AFRLX10 stainless steel air treatment unit · ARX10 stainless steel pressure regulator · AFX10 stainless steel compressed air filter · ALX10 stainless steel lubricator.
Ventilek’s tip
The condensate drains by itself after shut-off. The semi-automatic drain opens when the pressure in the bowl drops. In continuous operation, therefore, drain it manually from time to time by disconnecting the supply.
Additional parameters
| Category: | A1X stainless steel air treatment units (AISI 316) |
|---|---|
| Version: | Pressure regulator with filter |
| Pressure: | 60 bar |

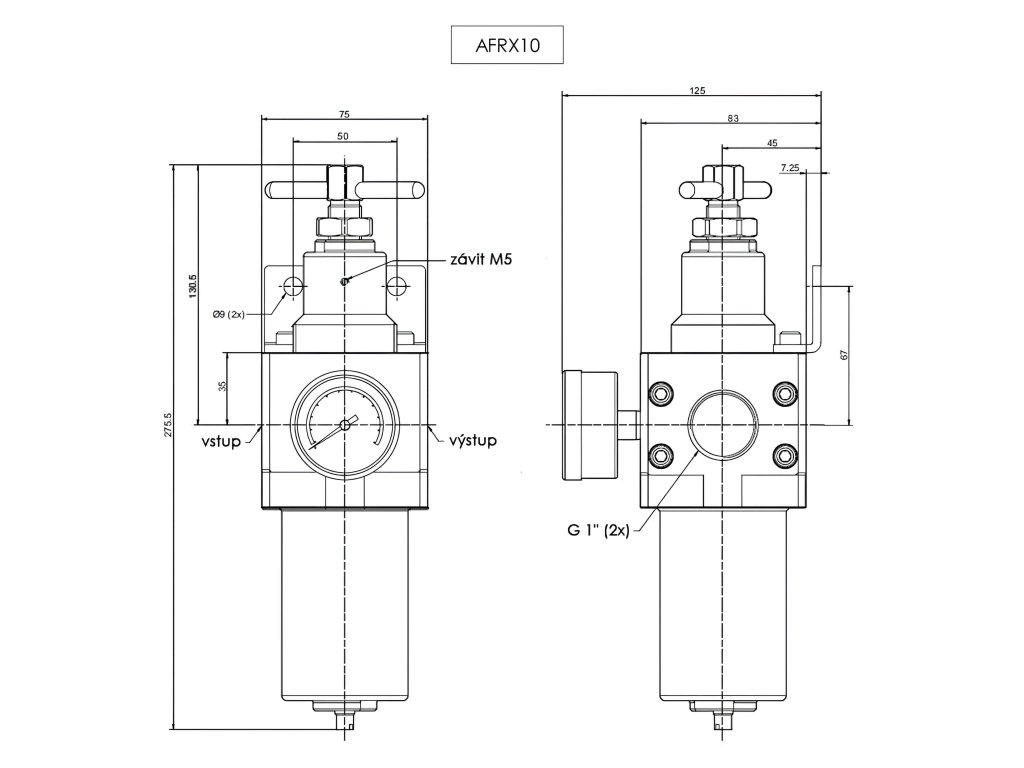

| Dimensions: | 75 × 75 × 276 mm |
| Filtering ability: | 5 µm |
| Material: | Stainless steel AISI316 |
| Medium: | Compressed air |
| Vessel volume: | 200 cc |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / +70 °C |
| Flow: | 8,900 l/min |
| Regulatory range: | 0.5 - 12 bar |
| Pressure gauge range: | 0 - 60 bar |
| Included in delivery: | Manometer, mounting bracket |
| Thread: | G 1" |
| Thread for manometer: | 1/4" |
