STANDARD air treatment units for high flow rates

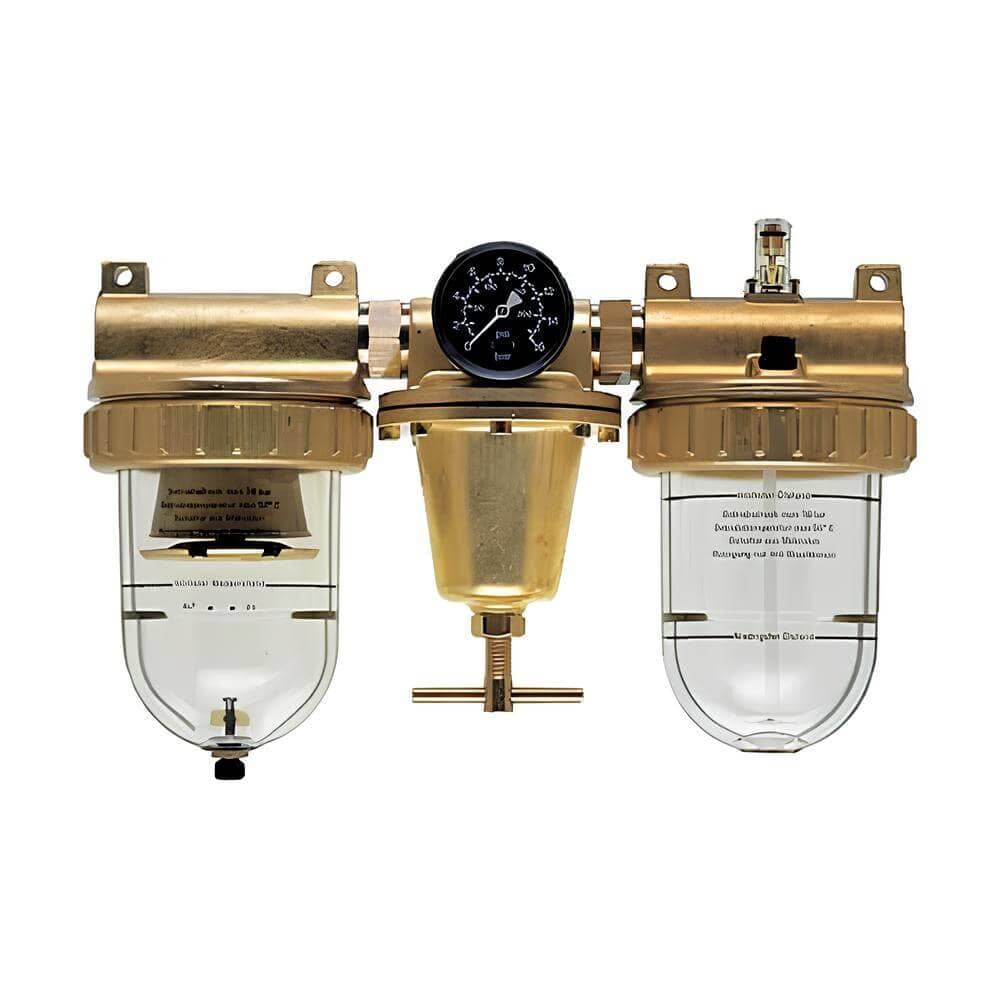

The STANDARD unit consists of a filter regulator and a lubricator, joined by a double nipple. It cleans the air with a 40 µm element, reduces it to the set pressure and adds oil mist to it — for branches of the air line and machines with high air consumption.
It comes in three sizes with G 3/4" to 2" threads and a nominal flow of 6,524, 7,252 or 12,678 l/min. You set the pressure within a range of 0.5–10 bar, and the pressure gauge is included.
Which version to choose
The size and thread determine the product page. You then choose the bowls directly on that page.

Sizes BG 60 and BG 80
G 3/4" and 1" threads (BG 60, 6,524 l/min) or G 1 1/4" and 1 1/2" (BG 80, 7,252 l/min). Filter bowls 260 cm³, lubricator bowls 360 cm³.

Size BG 90
G 1 1/2" and 2" threads, 12,678 l/min. Filter bowls 500 cm³, lubricator bowls 600 cm³, pressure gauge at both the inlet and the outlet.

Metal bowls (-M)
Inlet pressure up to 25 bar and temperature up to 90 °C. With plastic bowls, 16 bar and 50 °C; the same applies to plastic bowls in a protective guard (-S).
Units by size and thread
Codes on one row lead to the same product page. You choose a version with different bowls at the top of that page.
| STANDARD air treatment units · range 0.5–10 bar | |||||
|---|---|---|---|---|---|
| Size | Thread | Flow (l/min) | Plastic bowls | Metal bowls (-M) | With protective guard (-S) |
| BG 60 | G 3/4" | 6,524 | 334.48 | 334.48M | 334.48S |
| BG 60 | G 1" | 6,524 | 334.49 | 334.49M | – |
| BG 80 | G 1 1/4" | 7,252 | 334.410 | 334.410M | 334.410S |
| BG 80 | G 1 1/2" | 7,252 | 334.411 | 334.411M | 334.411S |
| BG 90 | G 1 1/2" | 12,678 | 458.211 | 458.211M | 458.211S |
| BG 90 | G 2" | 12,678 | 458.212 | 458.212M | 458.212S |
The flow applies to an inlet of 8 bar and an outlet of 6 bar at a pressure drop of 1 bar. “–” = this version is not supplied for the given thread. On BG 60 with a G 3/4" thread and BG 80 with a G 1 1/4" thread, the inlet and outlet are reduced.
#showmore#
How to choose the size
What matters is the flow that the consumers after the unit need at the same time. The nominal flow applies at an inlet of 8 bar and an outlet of 6 bar, when the pressure in the unit drops by 1 bar. With lower consumption the drop is smaller; with higher consumption it increases.
Sizes BG 60 and BG 80 differ in flow and threads; the bowls and most parts are shared. BG 90 is for the highest consumption: it has larger bowls, its own filter elements, diaphragm and mounting kit, and a pressure gauge at both the inlet and the outlet.
Setting the pressure
You set the outlet pressure within a range of 0.5–10 bar — on BG 60 and BG 80 with a T-handle screw under the regulator, on BG 90 with a handwheel. The regulator has secondary relief: when the pressure after it rises above the set value, it releases the excess (hysteresis about 1 bar).
The inlet pressure must be higher than the set pressure. Pressure fluctuations in the air line show at the outlet only very slightly — on BG 60 and BG 80 by less than 1.5 %, on BG 90 by less than 1 %.
Oil and dosing
The lubricator only adds oil from a flow of 167 l/min; at 6 bar it doses 10 drops per minute. That is why it does not drip at low consumption — a smaller unit is more suitable for individual smaller tools.
You can top up the oil in the lubricator bowl even under pressure; you do not need to shut off the air supply. With the plastic bowl, you can see the oil level.
Bowls and condensate drain
The standard version has plastic bowls for an inlet pressure of 16 bar and temperatures up to 50 °C. Metal bowls (-M) withstand 25 bar and 90 °C and resist impact; plastic bowls in a protective guard (-S) are protected from impact, while the pressure and temperature remain as for plastic bowls.
The condensate is drained from the filter bowl manually through the drain at the bottom. As spare parts, there are also bowls with a semi-automatic drain (it releases the condensate after the pressure drops, for example after the supply is shut off) and with an automatic drain for continuous operation. The usable volume on BG 60 and BG 80 is 260 cm³ in the filter bowl and 360 cm³ in the lubricator, and on BG 90 it is 500 and 600 cm³.
Mounting
Mount the unit upright, in the direction of the arrow on the body. You fix it to a wall or machine frame with a mounting kit, which is ordered separately: 281-26 for BG 60 and BG 80, 458-1 for BG 90. Leave space under the bowls for unscrewing them and for draining the condensate.
For transport, the pressure gauge is supplied loose and is screwed into the regulator.
Spare parts and accessories by size
On the page of each unit, the parts for its size are offered as related products.
| STANDARD spare parts and accessories | |||
|---|---|---|---|
| Part | BG 60 | BG 80 | BG 90 |
| Mounting kit | 281-26 | 458-1 | |
| Plastic filter bowl, manual drain | 322-122 | ||
| Plastic filter bowl, semi-automatic drain | 322-123 | ||
| Plastic filter bowl with automatic drain | 322-124 | ||
| Metal filter bowl, manual drain | 322-125 | ||
| Metal filter bowl, semi-automatic drain | 322-126 | ||
| Metal filter bowl with automatic drain | 322-127 | ||
| Plastic lubricator bowl | 327-111 | ||
| Metal lubricator bowl | 327-112 | ||
| Filter element 40 µm | 281-14 | 454-3 | |
| Filter element 5 µm | – | – | 454-11 |
| Regulator diaphragm | 280-219 | 417-66 | |
| Regulator sealing cone | 280-218 | 280-235 | 417-67 |
| Bowl sealing ring 105 × 4 mm | 279-9 | ||
When to choose another range
For lower flows up to 3,400 l/min with a filter, regulator and lubricator in one body, there are COMBIBLOC air treatment units. If you need finer filtration, separate devices or a unit for potentially explosive atmospheres, take a look at FUTURA air treatment units.
Ventilek’s tip
A high flow needs a large air line too. The unit only delivers its nominal flow if the pipes, valves and couplings before and after it have a large enough bore. A bottleneck elsewhere in the air line lowers the pressure at the consumer more than the unit itself.
- What does the unit consist of?
- A filter regulator and a lubricator, joined by a double nipple. The pressure gauge is included; the mounting kit is ordered separately.
- What inlet pressure can the unit take?
- 16 bar with plastic bowls (also in a protective guard), 25 bar with metal bowls. You set the outlet pressure within a range of 0.5–10 bar.
- Why does the lubricator not drip?
- It only adds oil from a flow of 167 l/min. That is why it does not drip at low consumption.
- Can oil be topped up during operation?
- Yes, the lubricator can be filled even under pressure, without shutting off the supply.
- Can an automatic condensate drain be retrofitted?
- Yes, by replacing the filter bowl with a version with an automatic drain, plastic or metal.
- What is the difference between BG 60 and BG 80?
- BG 80 has larger threads (G 1 1/4" and 1 1/2") and a flow of 7,252 l/min instead of 6,524 l/min. The bowls and most parts are the same.
Compressed air, inlet pressure up to 16 bar (metal bowls up to 25 bar), outlet pressure 0.5–10 bar, temperature 0 to +50 °C (metal bowls 0 to +90 °C), body nominal pressure PN 25, upright mounting.
