Air treatment unit STANDARD 334.48 - G 3/4", BG 60 6,524 l/min · size BG 60
Code: 334.48 334.48M 334.48S Choose variant
Related products
Product detailed description

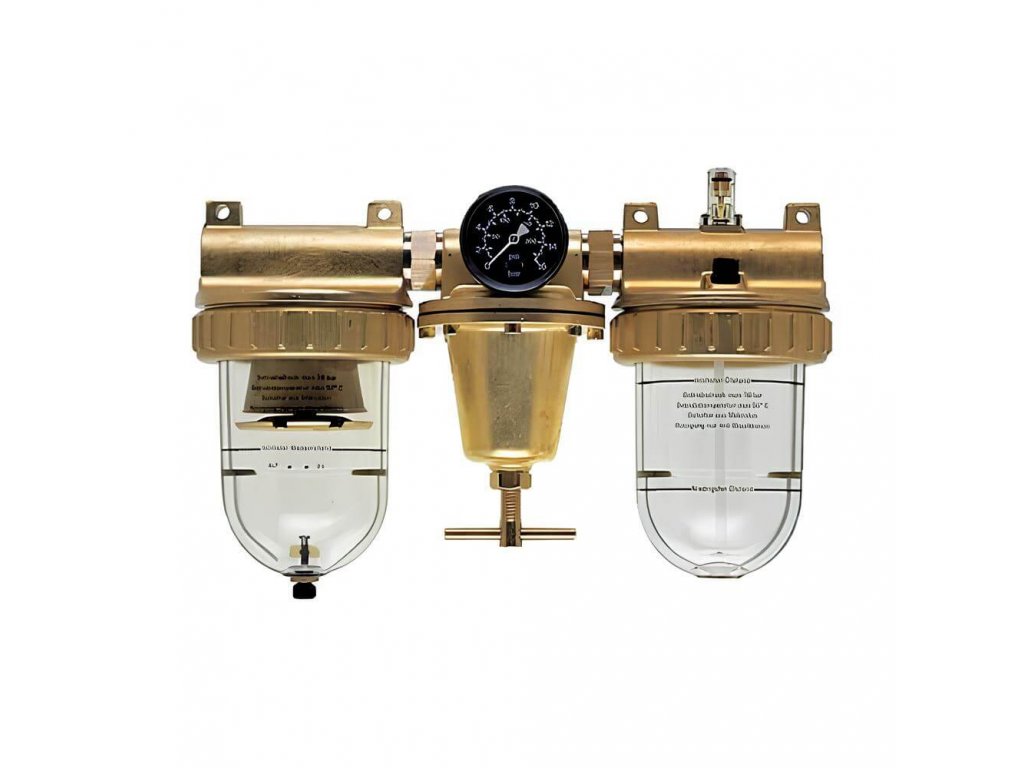

The STANDARD unit of size BG 60 with a G 3/4" thread cleans the air with a 40 µm filter element, reduces it to a pressure set within the 0.5–10 bar range and adds oil mist to it. The nominal flow is 6,524 l/min, and the pressure gauge is included.
Specifications
| 334.48 — specifications | |
|---|---|
| Size | BG 60 (DN 20), reduced inlet and outlet |
| Connection | G 3/4" |
| Setting range | 0.5–10 bar |

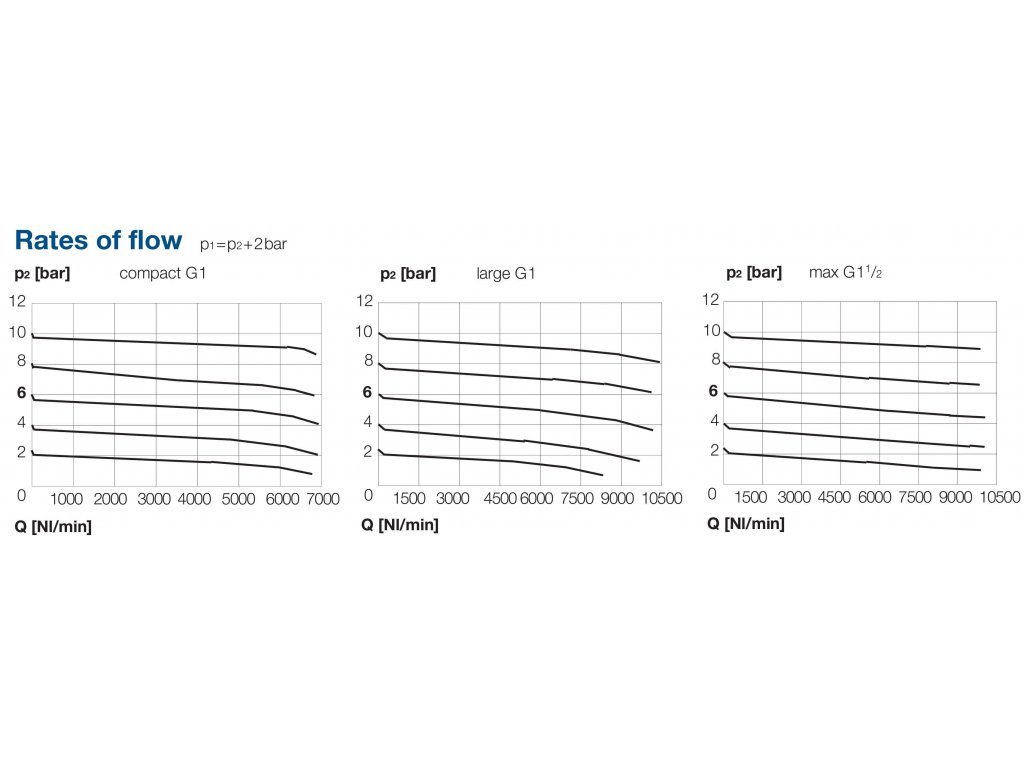

| Nominal flow | 6,524 l/min (inlet 8 bar, outlet 6 bar, pressure drop 1 bar) |
| Inlet pressure | 16 bar with plastic bowls, 25 bar with metal bowls |
| Working temperature | 0 to +50 °C with plastic bowls, 0 to +90 °C with metal bowls |
| Body nominal pressure | PN 25 |
| Filter element | 40 µm |
| Usable bowl volume | filter 260 cm³, lubricator 360 cm³ |
| Lubricator | adds oil from a flow of 167 l/min (10 drops per minute at 6 bar), can be filled even under pressure |
| Pressure gauge | Ø 63 mm, 0–16 bar, supplied loose |
| Regulation | with secondary relief (hysteresis about 1 bar), effect of inlet pressure fluctuations below 1.5 % |
| Pressure setting | with a T-handle screw |
| Configuration | filter regulator and lubricator joined by a double nipple |
| Mounting | upright, in the direction of the arrow; the mounting kit is an accessory |
Versions
Choose the version at the top of the page. All versions have the same thread, range and flow; they differ in the filter and lubricator bowls.
What it is for
It goes before a branch of the air line or a machine with high air consumption that needs clean air at a constant pressure with oil mist. The lubricator only adds oil from a flow of 167 l/min, so a smaller unit is more suitable for individual smaller tools.
Parts for this size: mounting kit 281-26 · filter bowls 322-122, 322-123, 322-124, 322-125, 322-126, 322-127 · lubricator bowls 327-111, 327-112 · filter elements 281-14 · regulator diaphragm 280-219 · sealing cone 280-218 · bowl sealing ring 279-9.
Maintenance
Drain the condensate regularly through the manual drain at the bottom of the filter bowl. Top up the oil in the lubricator bowl in good time; the lubricator can be filled even under pressure. Replace a clogged filter element; spare elements are in our range. Do not clean the plastic bowls with solvents.
Ventilek’s tip
Oil only at high consumption. The lubricator starts dripping from a flow of about 167 l/min. When the unit supplies only small tools, it does not add oil to the air.
Additional parameters
| Category: | STANDARD air treatment units for high flow rates |
|---|---|
| Version: | Complete unit |
| Pressure: | 16 bar, 25 bar |

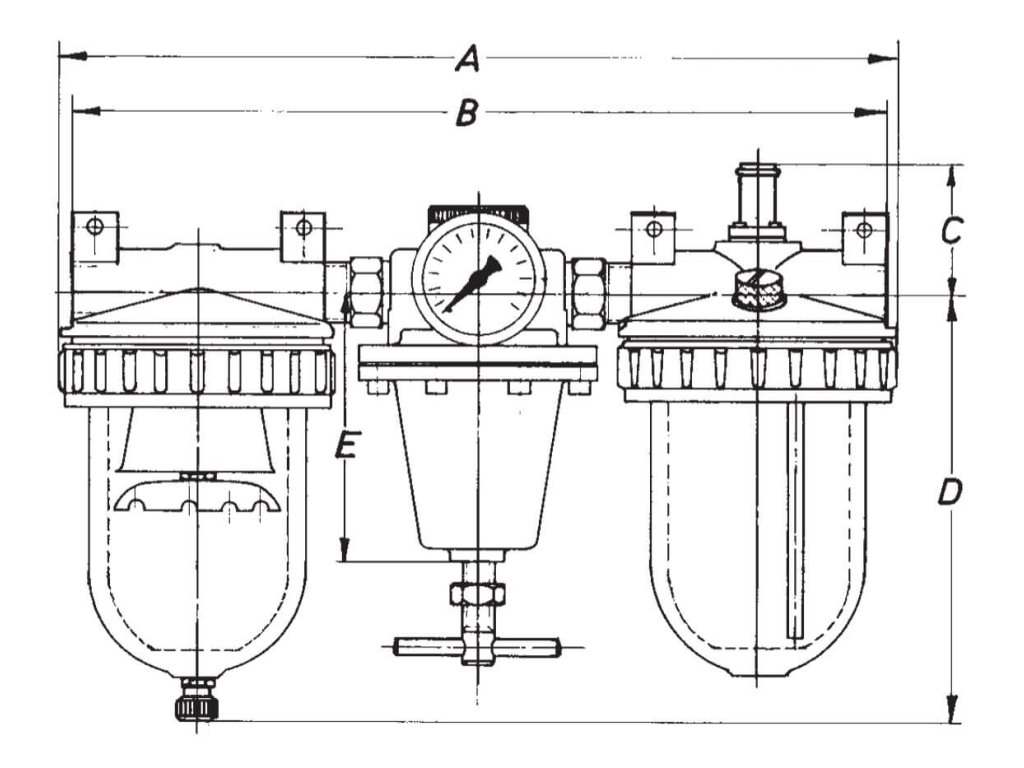

| Dimensions: | 426×133×264 mm |
| Filtering ability: | 40 µm |
| Material: | Plastic containers, Metal bowls |
| Medium: | Compressed air |
| Vessel volume: | Filter-260cc, oiler-360cc |
| Condensate discharge: | Manual |
| Working temperature: | 0 / 50 °C, 0 / 90 °C |
| Flow: | 6,524 l/min |
| Regulatory range: | 0.5 - 10 bar |
| Pressure gauge range: | 0 - 16 bar |
| Included in delivery: | Manometer |
| Product type: | Air treatment unit |
| Thread: | G 3/4" |
| Thread for manometer: | 1/4" |
| Filtration stage: | Coarse filter 15–40 µm |
Product rating
Be the first who will post an article to this item!
