Air treatment unit COMBIBLOC 423.264 - G 1/2", 0.5–16 bar 3,400 l/min · size 2
Code: 423.264 423.264-M 423.264-S 423.264-AM 423.264-AMR Choose variant
Related products
Product detailed description

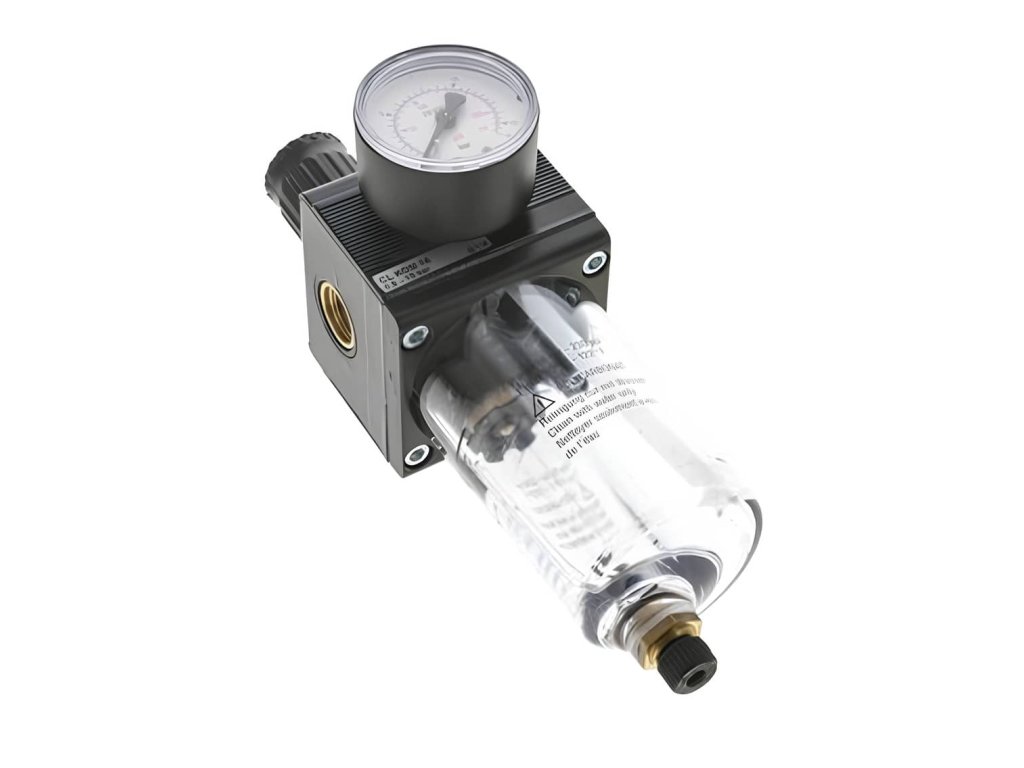

The size 2 COMBIBLOC unit with a G 1/2" thread cleans the air with a 40 µm filter, reduces it to a pressure set within the 0.5–16 bar range and adds oil mist to it. The flow is 3,400 l/min, and a 0–25 bar pressure gauge is included.
Specifications
| 423.264 — specifications | |
|---|---|
| Size | size 2 (DN 15) |
| Connection | G 1/2" |
| Setting range | 0.5–16 bar |
| Nominal flow | 3,400 l/min |
| Inlet pressure | 16 bar with a plastic bowl, 25 bar with a metal bowl |
| Working temperature | 0 to +50 °C with a plastic bowl, 0 to +90 °C with a metal bowl |
| Filter element | 40 µm, sintered bronze (5 µm also as a spare part) |
| Usable bowl volume | filter 75 cm³, lubricator 150 cm³ |
| Min. flow for oiling | 50 l/min (at 2 bar) |
| Pressure gauge | Ø 50 mm, 0–25 bar, G 1/4" port at the front or rear, included |
| Regulation | inlet at least 2 bar above the set pressure, hysteresis about 1 bar |
| Width × height × depth | 93 × 325 × 135 mm |
| Weight | 2.69 kg |
| Material | zinc alloy body, NBR seals, polycarbonate bowl, sintered bronze element |
| Mounting | upright, in the direction of the arrow, no more than 10 m before the consumer |
Versions
Choose the version at the top of the page. All versions have the same thread, range and flow; they differ in the bowl and the condensate drain.
| Order number | Bowl | Condensate drain | Inlet pressure | Temperature |
|---|---|---|---|---|
| 423.264 | plastic | manual | 16 bar | 0 to +50 °C |
| 423.264-M | metal with sight glass | manual | 25 bar | 0 to +90 °C |
| 423.264-S | plastic in a protective guard | manual | 16 bar | 0 to +50 °C |
| 423.264-AM | plastic | automatic, built-in (1.5–12 bar) | 16 bar | 0 to +50 °C |
| 423.264-AMR | plastic | automatic, add-on (4–16 bar) | 16 bar | 0 to +50 °C |
What it is for
It goes before pneumatic tools, cylinders and valves that need clean air at a constant pressure with oil mist, especially where space is tight: the lubricator bowl sits inside the filter bowl, so the unit takes up less space than a filter, regulator and lubricator in a row. Size 2 is for consumption up to 3,400 l/min.

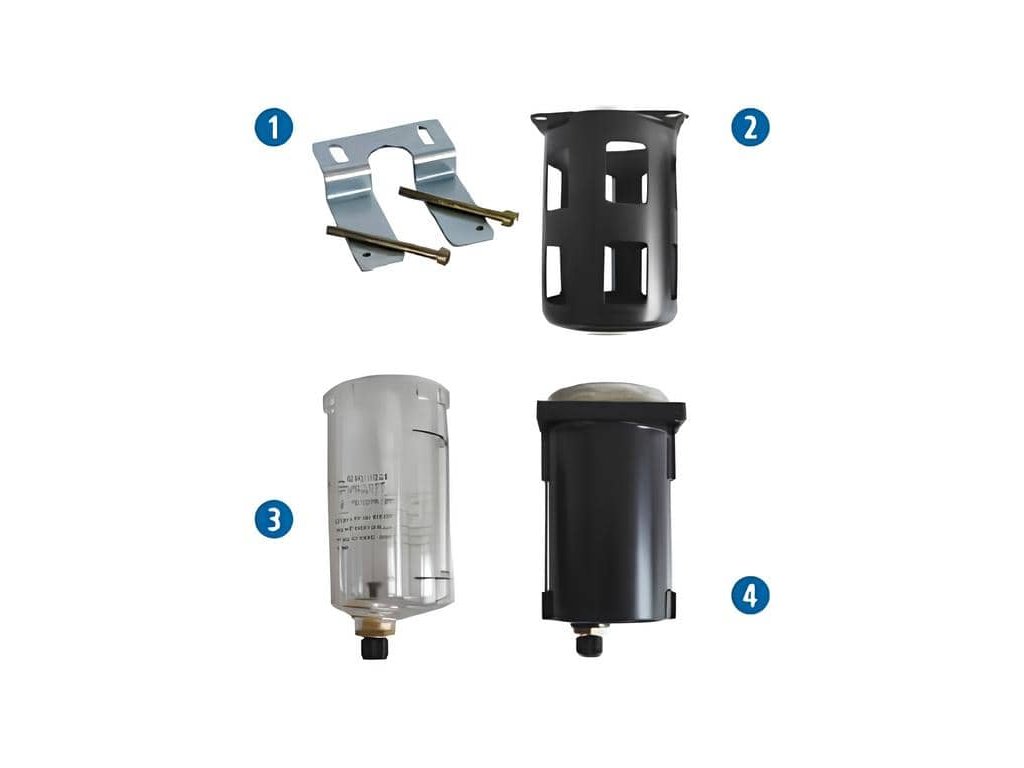

Parts for this size: mounting bracket 423-102 · protective guard 423-108 · replacement bowls 423-283, 423-289, BFKOM2-HA, BFKOM2-AMR, 423-297, BFMKOM2-AMR · filter elements 40 and 5 µm 394-16, 394-37 · regulator diaphragm 423-77 · sealing cone DKKOM2 · sight dome TROPFKOM, TROPFKOM-M · add-on drain and adapter AMR, AMR-CL · lubricator oil SOL, SOLWI, SOLLE.
Maintenance
Drain the condensate regularly with the valve at the bottom of the bowl, and top up the oil through the filling screw, even during operation (to about 2/3, up to the mark). Clean the element without pressure: unscrew the bowl, loosen the element nut, wash the element in solvent and blow it through from the inside out. Wash the plastic bowl only with water, kerosene or petroleum spirit.
Ventilek’s tip
A metal bowl for heat. The plastic bowl withstands 50 °C and must not come into contact with solvents. For warm environments, synthetic oil or more than 16 bar, choose the version with a metal bowl.
Additional parameters
| Category: | Compact COMBIBLOC air treatment units up to 16 bar |
|---|---|
| Version: | Complete unit |
| Pressure: | 16 bar, 25 bar |
| Dimensions: | 93×135×325 mm |
| Filtering ability: | 40 µm |
| Medium: | Compressed air |
| Vessel volume: | Filter-75cc, oiler-150cc |
| Condensate discharge: | Manual, Automatic |
| Working temperature: | 0 / 50 °C, 0 / 90 °C |
| Flow: | 3,400 l/min |
| Regulatory range: | 0.5 - 16 bar |
| Pressure gauge range: | 0 - 25 bar |
| Included in delivery: | Manometer |
| Thread: | G 1/2" |
| Thread for manometer: | 1/4" |
| In stock: | External warehouse |
