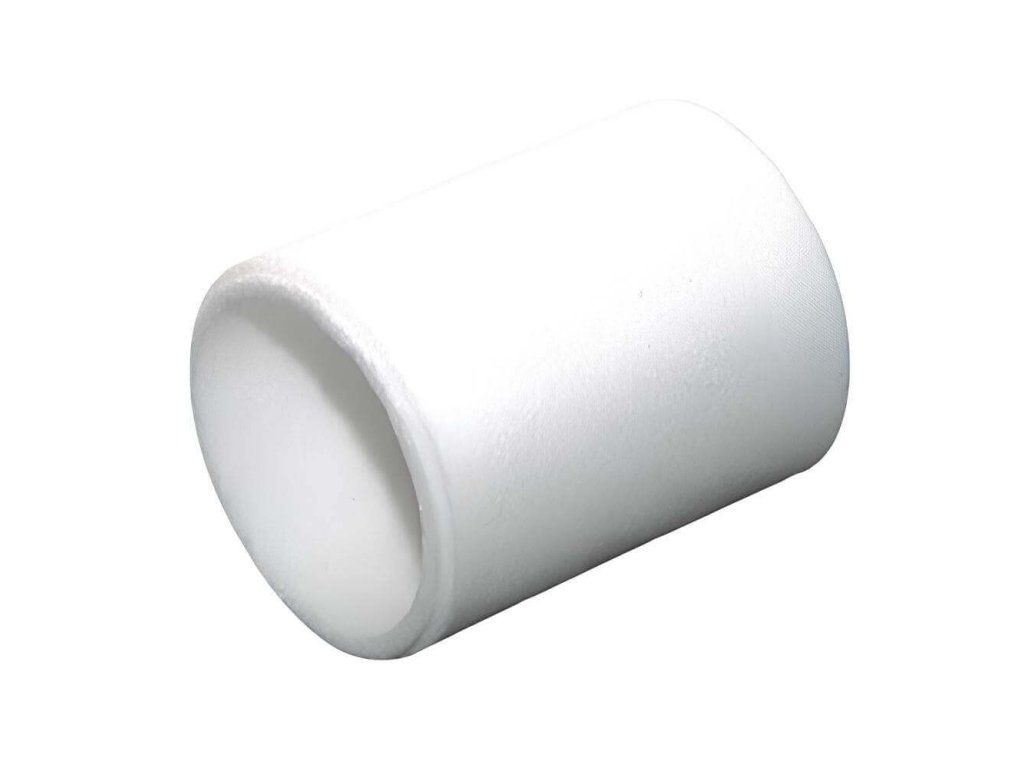

Filter element 5 micron FUTURA FV-2F - size 2 size 2 · 5 micron filtration

Code: FV-2F

Original parts

Not rated Rating details

Brand: KNOCKS FLUID Technik

€14,07 –5 %

FV 1F filtr vložka nahradni 5 um vzduch tlak kompresor

fh f filtr vložka nahradni 5 um vzduch tlak kompresor

€14,07 –5 % €13,36 / pcs €11,04 excl. VAT

()

Delivery to:

29.10.2026

Delivery options

A replacement sintered 5 µm filter element for FUTURA filters and filter regulators, and also for the filters in units. The element gradually clogs. Replace it when the pressure after the filter drops more than before while air is drawn.

Detailed information

Free shipping

For purchases over 5,000 CZK

We guarantee

Extended warranty and service

Discount voucher

For every purchase

Return of goods within 30 days

Completely at our expense

from €81,27 –5 %

Filter 5 micron FUTURA F382-F - G 3/8" 3,500 l/min · 5 micron · size 2 · ATEX

()

from €63,81 excl. VAT

from €77,21

Filter 5 µm FUTURA F382-F, size 2: G 3/8" thread, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, bowl and drain as variants, for ATEX environments.

Code: F382-F

from €198,18 –5 %

Filter 5 micron FUTURA F34-F - G 3/4" 8,000 l/min · 5 micron · size 4 · ATEX

()

from €155,60 excl. VAT

from €188,27

Filter 5 µm FUTURA F34-F, size 4: G 3/4" thread, 5 µm filtration, flow 8,000 l/min, inlet pressure up to 16 bar, bowl and drain as variants, for ATEX environments.

Code: F34-F

from €245,36 –5 %

Three-piece unit FUTURA CL3823-1F - G 3/8", 0.1–1 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL3823-1F, size 2: G 3/8" thread, setting range 0.1–1 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL3823-1F

from €245,36 –5 %

Three-piece unit FUTURA CL3823-2F - G 3/8", 0.1–2 bar 3,500 l/min · 5 micron · size 2 · ATEX

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL3823-2F, size 2: G 3/8" thread, setting range 0.1–2 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL3823-2F

from €245,36 –5 %

Three-piece unit FUTURA CL3823-4F - G 3/8", 0.2–4 bar 3,500 l/min · 5 micron · size 2 · ATEX

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL3823-4F, size 2: G 3/8" thread, setting range 0.2–4 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL3823-4F

from €245,36 –5 %

Three-piece unit FUTURA CL3823-8F - G 3/8", 0.5–8 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL3823-8F, size 2: G 3/8" thread, setting range 0.5–8 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL3823-8F

from €245,36 –5 %

Three-piece unit FUTURA CL3823-10F - G 3/8", 0.5–10 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL3823-10F, size 2: G 3/8" thread, setting range 0.5–10 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge...

Code: CL3823-10F

from €245,36 –5 %

Three-piece unit FUTURA CL3823-16F - G 3/8", 0.5–16 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL3823-16F, size 2: G 3/8" thread, setting range 0.5–16 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge...

Code: CL3823-16F

from €245,36 –5 %

Three-piece unit FUTURA CL123-1F - G 1/2", 0.1–1 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL123-1F, size 2: G 1/2" thread, setting range 0.1–1 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL123-1F

from €245,36 –5 %

Three-piece unit FUTURA CL123-2F - G 1/2", 0.1–2 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL123-2F, size 2: G 1/2" thread, setting range 0.1–2 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL123-2F

from €245,36 –5 %

Three-piece unit FUTURA CL123-4F - G 1/2", 0.2–4 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL123-4F, size 2: G 1/2" thread, setting range 0.2–4 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL123-4F

from €245,36 –5 %

Three-piece unit FUTURA CL123-8F - G 1/2", 0.5–8 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL123-8F, size 2: G 1/2" thread, setting range 0.5–8 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL123-8F

from €245,36 –5 %

Three-piece unit FUTURA CL123-10F - G 1/2", 0.5–10 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL123-10F, size 2: G 1/2" thread, setting range 0.5–10 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge...

Code: CL123-10F

from €245,36 –5 %

Three-piece unit FUTURA CL123-16F - G 1/2", 0.5–16 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €192,64 excl. VAT

from €233,09

Three-piece unit FUTURA CL123-16F, size 2: G 1/2" thread, setting range 0.5–16 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge...

Code: CL123-16F

from €252,55 –5 %

Two-piece unit FUTURA CL382-1F - G 3/8", 0.1–1 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €198,28 excl. VAT

from €239,92

Two-piece unit FUTURA CL382-1F, size 2: G 3/8" thread, setting range 0.1–1 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL382-1F

from €252,55 –5 %

Two-piece unit FUTURA CL382-2F - G 3/8", 0.1–2 bar 3,500 l/min · 5 micron · size 2 · ATEX

()

from €198,28 excl. VAT

from €239,92

Two-piece unit FUTURA CL382-2F, size 2: G 3/8" thread, setting range 0.1–2 bar, 5 µm filtration, flow 3,500 l/min, inlet pressure up to 16 bar, 50 mm pressure gauge included,...

Code: CL382-2F

Show all related products

Product detailed description

5 micron filtration Filter element 5 micron FUTURA FV-2F - size 2

A replacement sintered 5 µm filter element for FUTURA filters and filter regulators, and also for the filters in units.

What it is for

The element gradually clogs. Replace it when the pressure after the filter drops more than before while air is drawn.

Ventilek’s tip

Change the element without pressure. Remove the bowl, unscrew the element end piece and replace the element.

Additional parameters

Category:	FUTURA accessories and spare parts for air treatment units
Version:	Accessories
Pressure:	16 bar
Dimensions:	Size 2
Filtering ability:	5 µm
Medium:	Compressed air
Flow:	3,500 l/min
In stock:	External warehouse
