FUTURA accessories and spare parts for air treatment units

Parts by size FUTURA size 1 accessories: connection kit, threaded wall bracket, replacement bowl and filter element

FUTURA accessories and spare parts are chosen by the size of the component, not by the thread. Size 0 has a G 1/4" thread, size 1 G 1/4" and 3/8", size 2 G 3/8" and 1/2", and size 4 G 3/4" and 1".

Here you will find parts for mounting and for joining components into units, replacement bowls, filter elements, regulator diaphragms and knobs, pressure gauges, padlocks and lubricator oils.

4 sizesparts by component size

5 to 0.01 µmfilter elements

VHS 20padlock for the knob and ball valve

1 to 20 loil packs

Part groups

FUTURA connection kit with frames, screws and sealing ring

Mounting and joining

Mounting brackets, connection kits, kits with wall bracket, threaded wall brackets and panel mounting nuts.

Plastic FUTURA filter bowl in a protective guard

Bowls

Plastic and metal bowls for filters, filter regulators and lubricators, with semi-automatic or automatic drain.

Filter elements

Elements 5 µm, 0.3 µm, 0.01 µm and activated carbon, and clogging indicators.

FUTURA spare regulator diaphragm with piston

Regulator parts

Diaphragms, spring covers, knobs and compact pressure gauges.

FUTURA pressure regulator and a padlock pictogram

Padlocks

The VHS 20 padlock for the regulator knob and the ball valve, larger padlocks and keyed-alike padlocks.

Lubricators

Sight domes, replacement bowls and oils in packs of 1 to 20 l.

Mounting and joining

The connection kit joins two components of the same size regardless of their thread. The kit with bracket also fixes the unit to a wall. The bracket with nut and the nut on its own are used for mounting a pressure regulator or filter regulator in a panel.

Mounting and joining parts by size
Part	Size 0	Size 1	Size 2	Size 4
Mounting bracket with screws	W0F	W1F	W2F	W4F
Connection kit	KP0F	KP1F	KP2F	KP4F
Connection kit with wall bracket	KPW0F	KPW1F	KPW2F	KPW4F
Bracket with ring and nut for panel mounting	MW0F	MW1F	MW2F	MW4F
Panel mounting nut	SM1	SM1F	SM2F	SM4F

#showmore#

How to fit the parts

FUTURA size 1 mounting parts: mounting bracket with screws, bracket with nut, panel mounting nut, connection kit and connection kit with wall bracket — From left: mounting bracket, bracket with nut, panel mounting nut, connection kit, connection kit with wall bracket.

The mounting bracket is screwed to the back of the component; remove the rear cover plate first. The connection kit has two frames, screws and a sealing ring.

For an assembly of three to four components, put the connection kits with bracket on the outer joints; for five to six components, use three.

For panel mounting, drill a hole with a diameter of 37 mm for size 1, 43 mm for size 2 and 51 mm for size 4. The panel can be at most 6, 8 and 15 mm thick.

Threaded wall brackets

The brackets screw onto the start and end of the unit, and the piping connects to their thread. You can then replace the unit without removing the wall fixing or the piping. One pack contains a left and a right bracket with screws.

Threaded wall brackets (left and right)
Size	Thread	Order number
0	G 1/4"	WK0-14F
1	G 1/4"	WK1-14F
1	G 3/8"	WK1-38F
2	G 3/8"	WK2-38F
2	G 1/2"	WK2-12F
4	G 3/4"	WK4-34F
4	G 1"	WK4-10F

Bowls

The bowls come in two versions: plastic, made of polycarbonate, in sizes 1 to 4 in a protective guard, and metal, in sizes 1 to 4 with a sight glass. The bowls of filters, activated carbon filters and lubricators are not interchangeable.

Replacement bowls for filters and filter regulators
Part	Size 0	Size 1	Size 2	Size 4
Plastic bowl, semi-automatic drain	BDF00	BF1F	BF2F	BF4F
Plastic bowl, automatic drain	BF1-AM	BF1F-AM	BF2F-AM	BF4F-AM
Plastic bowl, automatic drain closed when depressurised	BF1-AMNC	BF1F-AMNC	BF2F-AMNC	BF4F-AMNC
Metal bowl, semi-automatic drain	BDF00-M	BFM1F	BFM2F	BFM4F
Metal bowl, automatic drain	BDF00-MAM	BFM1F-AM	BFM2F-AM	BFM4F-AM
Metal bowl, automatic drain closed when depressurised	BDF00-MAMNC	BFM1F-AMNC	BFM2F-AMNC	BFM4F-AMNC
Bowl sealing ring	OR1	OR1F	OR2F	OR4F

Bowls for activated carbon filters and lubricators

The activated carbon filter does not drain condensate; its bowl has no drain. In size 0, it is the same bowl as on the lubricator.

Replacement bowls without drain
Part	Size 0	Size 1	Size 2	Size 4
Plastic activated carbon filter bowl	BDO00	BFA1F	BFA2F	BFA4F
Metal activated carbon filter bowl	BDO00-M	BFMA1F	BFMA2F	BFMA4F
Plastic lubricator bowl	BDO00	BOL1F	BOL2F	BOL4F
Metal lubricator bowl	BDO00-M	BOLM1F	BOLM2F	BOLM4F

Good to know about the bowls:

The size 0 bowl screws onto a thread with a diameter of 33.5 mm; the bowls of sizes 1, 2 and 4 fit a bayonet with a diameter of 37.6, 43.8 and 60 mm. The bowl is fitted rotated by 45° and turned to the right until the catch clicks into place.
The size 0 metal bowl with automatic drain is for the filter regulator only.
With the automatic drain, the condensate hose screws into the G 1/8" thread.
Separate drains for bowls with a 14 mm hole: automatic float drain AM18-10 (1.5–16 bar), semi-automatic HANDABLASS-HA and manual HANDABLASS-M. The manual HANDABLASS-MDF has a special G 1/8" mounting.

Filter elements

The element is chosen by filter type and size. For both threads of one size, the element is the same, just under two order numbers. The 5 µm element is shared by the filter and the filter regulator.

Spare elements by type and size
Element	Size 0	Size 1	Size 2	Size 4
Filter and filter regulator 5 µm	FV-1F		FV-2F	FV-4F
Pre-filter 0.3 µm	FV014-FV	FV14-FV, FV38-FV	FV382-FV, FV12-FV	FV34-FV, FV10-FV
Pre-filter with automatic drain	as standard	V23-40	as standard	as standard
Microfilter 0.01 µm	FX014-FV	FX14-FV, FX38-FV	FX382-FV, FX12-FV	FX34-FV, FX10-FV
Microfilter with automatic drain	as standard	X23-40	as standard	as standard
Activated carbon	FA014-FV	FA14-FV, FA38-FV	FA382-FV, FA12-FV	FA34-FV, FA10-FV
5 µm element holder	filter FH-0F, filter regulator FH-0FR	–	–	–
Differential pressure indicator 0–0.35 bar	–	DDA-B
Differential pressure gauge 0–0.5 bar	–	DDA-M

The clogging indicators are mounted on the cap of the pre-filter and microfilter in sizes 1 to 4. When replacing the element, depressurise the component, remove the bowl and unscrew the element end piece.

Regulator parts

The diaphragm is supplied with the control piston and sealing ring. The standard diaphragm is for pressure regulators, filter regulators, through-feed regulators and units; the precision regulator diaphragm is for precision regulators in sizes 1 and 2.

Regulator spare parts by size
Part	Size 0	Size 1	Size 2	Size 4
Regulator diaphragm	MEMBRANER014F	MEMBRANER14F	MEMBRANER12F	MEMBRANER34F
Precision regulator diaphragm	–	MEMBRANERP14F	MEMBRANERP12F	–
Spring cover	FEDERHAUBE0F	FEDERHAUBE1F	FEDERHAUBE2F	FEDERHAUBE4F
Knob	FEDERHAUBE0F-RAD	FEDERHAUBE1F-RAD	FEDERHAUBE2F-RAD
Compact pressure gauge 0–12 bar	MANOFUTURA12	–	–	–
Compact pressure gauge 0–6 bar	MANOFUTURA6	–	–	–

Size 0 components have a compact pressure gauge: a 0–12 bar gauge for the 0.5–8 and 0.5–10 bar ranges, a 0–6 bar gauge for the 0.2–4 bar range. Repairs and modifications of components operated in potentially explosive atmospheres are not permitted.

Padlocks

Padlock with keys and dimensions S, A, B and C — Dimensions in the table: S padlock width, A and C shackle clearance.

The VHS 20 padlock fits the knob of a regulator in sizes 1 to 4 and the ball valve. Size 0 cannot be locked. Up to three padlocks can be hung on the ball valve.

The padlocks have a brass body and a hardened steel shackle and come with two keys. Padlocks with the same GSA or GSB order number open with one key.

VHS padlocks
Padlock	Width S (mm)	Shackle Ø (mm)	Clearance A × C (mm)	Standard	Long shackle	Keyed alike A	Keyed alike B
VHS 20	20	3.5	10 × 7	VHS20	VHS20H	VHS20-GSA	VHS20-GSB
VHS 30	30	5	16 × 10	VHS30	VHS30H	VHS30-GSA	VHS30-GSB
VHS 40	40	6	23 × 15	VHS40	VHS40H	VHS40-GSA	VHS40-GSB
VHS 50	50	8	29 × 18	VHS50	–	VHS50-GSA	VHS50-GSB
VHS 60	60	10	36 × 20	VHS60	–	VHS60-GSA	VHS60-GSB

With long shackle and keyed alike: VHS30H-GSA, VHS40H-GSA, VHS30H-GSB and VHS40H-GSB.

Lubricators and oils

The TROPFOLF sight dome is the same for all lubricator sizes. The pack contains the outer and inner dome and a seal.

The catalogue recommends ISO VG 32 class oil (CL32 to DIN 51517) for lubricators. Top up the oil when the level drops to the lower mark.

Lubricator oils
Oil	1 l	5 l	10 l	20 l
Standard, for temperatures above +5 °C	SOL	SOL5	SOL10	SOL20
For larger amounts of condensate, for example below +5 °C	SOLWI	SOLWI5	SOLWI10	SOLWI20
Food-grade	SOLLE	SOLLE5	SOLLE10	SOLLE20

Pilot valves

The spare pilot valve with coil MCL-F24VDC, MCL-F230VAC and MCL-F115VAC is for electrically operated 3/2 valves and soft-start units of all sizes. Power 2.5 W, or 3 VA with AC voltage, protection IP 65. It is screwed on together with its seal.

The declaration regarding Directive 2014/34/EU does not apply to pilot valves, clogging indicators or size 0 parts.

Ventilek’s tip

Choose parts by size, not by thread. A component with a G 3/8" thread can be size 1 or size 2. You will find the size on the product page and in the category tables.

How do I choose a connection kit?: By the size of the components. A connection kit joins two components of the same size regardless of their thread.
What is the difference between a connection kit and a kit with bracket?: The kit with bracket also fixes the unit to a wall. For an assembly of three to four components, two are enough, on the outer joints.
What is the threaded wall bracket for?: It screws onto the start and end of the unit and the piping connects to it. You can then replace the unit without removing the piping. It comes as a pair, left and right, with screws.
Which padlock fits the regulator and the ball valve?: VHS 20. Up to three can be hung on the ball valve.
How do I know which element I need?: By filter type and size. On the size 1 pre-filter and microfilter, the version with automatic drain has a shorter element.
Which parts are for size 0?: They have 0 in the code, for example W0F, KP0F or BDF00. Watch out for similar codes: the SM1 nut is for size 0, SM1F for size 1.

Parts are chosen by component size 0, 1, 2 or 4. Bowls of polycarbonate or metal, brass padlocks with a hardened steel shackle, diaphragms and seals of NBR.

€3,90 –4 %

Connection kit FUTURA KP1F - size 1 size 1 · Joins two components

()

Code: KP1F

Was: €3,90 (–4 %)

€3,71

(€3,07 excl. VAT)

€11,70 –4 %

Bracket with nut for panel mounting FUTURA MW4F - size 4 size 4 · Panel mounting

()

Code: MW4F

Was: €11,70 (–4 %)

€11,12

(€9,19 excl. VAT)

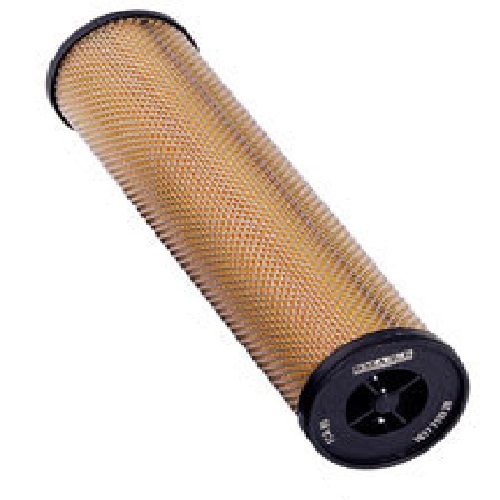

FV 1F filtr vložka nahradni 5 um vzduch tlak kompresor

€14,12 –4 %

Filter element 5 micron FUTURA FV-1F - size 1 size 1 · 5 micron filtration

()

Code: FV-1F

Was: €14,12 (–4 %)

€13,42

(€11,09 excl. VAT)

€15,79 –5 %

Replacement filter bowl FUTURA BF1F - size 1 size 1 · Replacement bowl

()

Code: BF1F

Was: €15,79 (–5 %)

€15

(€12,40 excl. VAT)

€11,68 –5 %

Bracket with nut for panel mounting FUTURA MW1F - size 1 size 1 · Panel mounting

()

Code: MW1F

Was: €11,68 (–5 %)

€11,09

(€9,17 excl. VAT)

from €48,69 up to –5 %

Padlock VHS60 - width 60 mm Brass and hardened steel

()

Code: VHS60

Was: €48,69 (–5 %)

from €46,26

(from €38,23 excl. VAT)

from €34,23 –5 %

Padlock VHS50 - width 50 mm Brass and hardened steel

()

Code: VHS50

Was: €34,23 (–5 %)

from €32,52

(from €26,88 excl. VAT)

from €20,49 up to –5 %

Padlock VHS40 - width 40 mm Brass and hardened steel

()

Code: VHS40

Was: €20,49 (–5 %)

from €19,47

(from €16,09 excl. VAT)

from €15,72 up to –5 %

Padlock VHS30 - width 30 mm Brass and hardened steel

()

Code: VHS30

Was: €15,72 (–5 %)

from €14,94

(from €12,35 excl. VAT)

from €13,01 up to –5 %

Padlock VHS20 - width 20 mm Brass and hardened steel

()

Code: VHS20

Was: €13,01 (–5 %)

from €12,36

(from €10,21 excl. VAT)

132 items total

New Original parts

€18,97 –5 %

Compact pressure gauge FUTURA MANOFUTURA12 - size 0 size 0 · Size 0

()

€14,89 excl. VAT

€18,02 / pcs

A replacement compact pressure gauge for FUTURA size 0 pressure regulators, filter regulators and units. The 0–12 bar gauge goes with the 0.5–8 and 0.5–10 bar ranges, the 0–6...

Code: MANOFUTURA12

New Original parts

€18,97 –5 %

Compact pressure gauge FUTURA MANOFUTURA6 - size 0 size 0 · Size 0

()

€14,89 excl. VAT

€18,02 / pcs

A replacement compact pressure gauge for FUTURA size 0 pressure regulators, filter regulators and units. The 0–12 bar gauge goes with the 0.5–8 and 0.5–10 bar ranges, the 0–6...

Code: MANOFUTURA6
