Pneumatic riveting pliers M7 for compressed air
 |

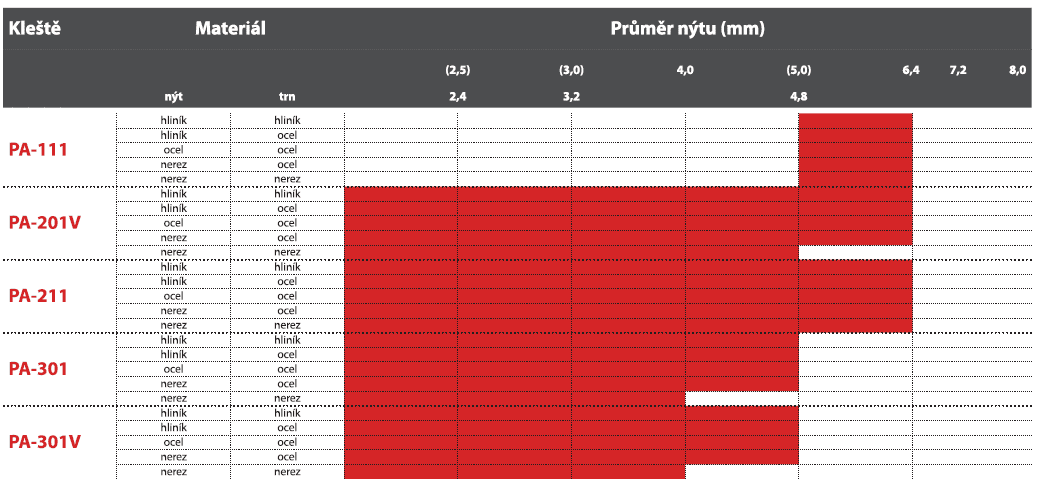

Rivet with the M7 professional riveting pliers. The pneumatic riveting pliers stand out for their top quality workmanship and are suitable for use in industry, crafts and car repair - they can hold rivets up to 6.4 mm in both aluminium and stainless steel. The models we offer are characterized by a comfortable vacuum rivet hold and the possibility of a container for catching used rivets - all of which will make your work incredibly easy! The required working pressure to drive the air tool is 6.3 bar. For a better overview of the rivet applicability of the individual riveting pliers, check the table below. |
M7 riveting pliers in pneumatic design |
|||||||||
| Ordering number |
Tearing force |
Length stroke |
Size rivet |
Working pressure |
Average consumption |
Weight | Hose | Noise level | Vibration |
| kg-f | mm | mm | bar | l/cycle | kg | mm | dB(A) | m/s² | |
| PA-211 | 1 700 | 18 | 2,4 - 6,4 | 6,3 | 2,90 | 1,75 | 10 | 79,7 | 0,8 |
| PA-301 | 1 045 | 16 | 2,4 - 4,8 | 6,3 | 1,48 | 1,50 | 10 | 79,7 | 0,3 |
| PA-201V | 1 603 | 14 | 2,4 - 6,4 | 6,3 | 2,32 | 1,79 | 10 | 79,7 | 0,5 |
| PA-301V | 1 045 | 16 | 2,4 - 4,8 | 6,3 | 1,48 | 1,50 | 10 | 79,7 | 0,3 |
| AR-316K | 720 | 14 | 2,4 - 4,8 | 6,3 | 0,7 | 1,7 | 10 | 82,0 | 0,8 |
#ShowMore#
How to work with rivet pliers
You can't do without riveting pliers to work with rivets. The procedure for working with them is as follows - insert the body of the rivet into the pre-drilled hole, grip the mandrel in the jaws of the rivet pliers and press the lever. The tyre will make your work easier and the rivet will be perfectly riveted. That's why working with the Mighty Seven pliers is extremely fast and extremely comfortable. The torn rivet shank falls off after riveting from the pliers. To avoid mess on the floor, it is also a good idea to equip yourself with a rivet catcher. At least you can easily keep your work area clean and won't have to deal with cleaning up later.
What else you can use with your air tools
- Spiral hoses for all tyre tools
- Hose couplings for connecting tyre tools
- Pressure regulators for the right application pressure
- Compressed air distributions
- Special oils for air tools
Manuals for pneumatic tools from our advice centre:
Product sorting
List of products
Replacement container for catching spikes from separated rivets for M7 brand compressed air powered professional air pliers.
Pneumatic-hydraulic riveting pliers M7 PA-202 for pulling rivets 2.4–6.4 mm. Higher pulling force for steel rivets. For industrial body shops and construction.
Pneumatic-hydraulic riveting pliers M7 PA-301L with a pulling force of 2,303 ft-lb (1,045 kgf), a stroke of 16 mm, and a rivet capacity of 2.4–4.8 mm. Set includes attachments...
Riveting pliers for demanding professional use. Designed for sheet metal riveting, suitable for aluminum and steel rivets up to 4.8 mm and stainless steel rivets up to 4.0 mm....
Riveting pliers for demanding professional use. Designed for sheet metal riveting, suitable for aluminum and steel rivets up to 4.8 mm and stainless steel rivets up to 4.0 mm....
Extremely strong riveting pliers for demanding professional and industrial use. Designed for sheet metal riveting, suitable for rivets made of aluminium, steel and stainless...
Riveting pliers in a handy case with rivet samples, mounting keys, spare o-rings and springs and a compressed air-powered connection nipple.
Attachment for blind rivets with a diameter of 2.4-3-4-4.8 mm.
Attachment for blind rivets with size M3-M4-M5-M6.
Nozzle for blind rivets with a diameter of 3.2-4-4.8-6.4 mm.
Attachment for blind rivets with size M6-M8-M10.
Professional pneumatic-hydraulic riveter M7 PA-211TS for riveting brake calipers of trucks. Towing force 1,700 kg-f, rivet capacity 2.4–6.4 mm, stroke 18 mm. For truck service...
Pneumatic-hydraulic riveter M7 PB-2402 for installing rivet nuts M3 to M12. For body shops, assembly of sheet metal structures, facade repairs. Set with attachments for various...
Strong riveting pliers for heavy-duty professional and industrial use. Designed for sheet metal riveting, suitable for aluminum and steel rivets up to 6.4 mm and stainless steel...
Pneumatic-hydraulic riveting pliers M7 PA-203N — an affordable professional model. Rivet capacity 2.4–4.8 mm, lightweight construction. For car workshops and locksmithing with...
