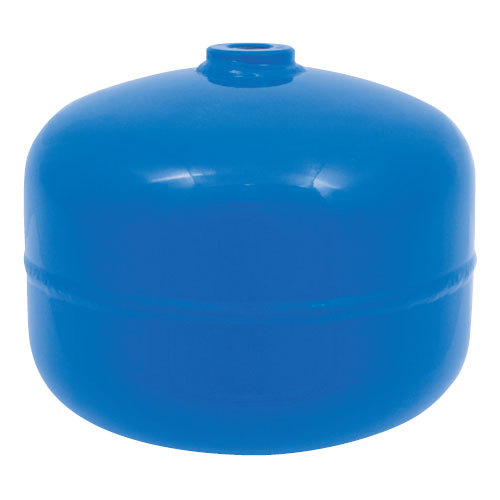

Small air ducts and air pressure vessel up to 50 l
Small air blowers for reciprocating compressors in standing or lying design, with a maximum working pressure of up to 16 atmospheres and the possibility of connection to all reciprocating compressors. There are no fittings or accessories for the vessels, but these can be purchased directly from our e-shop. They are supplied with the necessary documents and the maximum working temperature of the compressed medium is 100°C.
 |
|
Air pressure vessels VV - vertical upright design |
||||||||||
| Order number | Volume | Pressure | Dimensions | Connection threads | ||||||
| Lacquered (blue | l | bar | De | L | AND | 1 | 2 | 3-4 | 5 | 6 |
| VVP24-11 | 24 | 11 | 240 | 656 | 64 | 1/2" | - | 1/2" | - | 3/8" |
| VVP50-11 | 50 | 11 | 305 | 929 | 145 | 1/2" | 1/2" | - | 1/2" | 3/8" |
| VVP50-15 | 50 | 15 | 350 | 929 | 145 | 1/2" | 1/2" | - | 1/2" | 3/8" |
Pressure vessels for air VL - horizontal design of air vessels without bases |
||||||||
| Order number | Volume | Work pressure | Dimensions | Connection threads | ||||
| Lacquered | l | bar | De | L | x | y | j | from |
| VLP5-11 | 5 | 11 | 150 | 370 | 1/2" | - | - | 1/4" |
| VLP10-11 | 10 | 11 | 169 | 506 | 1/2" | - | 3/8" | 3/8" |
| VLP15-11 | 15 | 11 | 196 | 522 | 1/2" | - | 3/8" | 3/8" |
| VLP24-11 | 24 | 11 | 240 | 592 | 1/2" | - | 3/8" | 3/8" |
| VLP50-11 | 50 | 11 | 305 | 784 | 1/2" | 1/2" | 1/2" | 3/8" |
Pressure vessels for air VH - horizontal design of air tanks with pedestals |
|||||||||
| Order number | Volume | Work pressure | Dimensions | Connection threads | |||||
| Lacquered | l | bar | De | L | H1 | x | y | j | from |
| VHP5-11 | 5 | 11 | 150 | 370 | 45 | 1/2" | - | - | 1/4" |
| VHP10-11 | 10 | 11 | 169 | 506 | 30 | 1/2" | - | 3/8" | 3/8" |
| VHP15-11 | 15 | 11 | 196 | 522 | 37 | 1/2" | - | 3/8" | 3/8" |
| VHP24-11 | 24 | 11 | 240 | 592 | 45 | 1/2" | - | 3/8" | 3/8" |
| VHP50-11 | 50 | 11 | 305 | 784 | 50 | 1/2" | 1/2" | 1/2" | 3/8" |
| VHP24-16 | 24 | 16 | 240 | 592 | 45 | 1/2" | -- | 3/8" | 3/8" |
| VHP50-15 | 50 | 15 | 305 | 784 | 50 | 1/2" | 1/2" | 1/2" | 3/8" |
Product sorting
List of products
Pressure vessel with a capacity of 50 l in upright or vertical design. The aerator is designed for the medium compressed air and is built on a base which is part of the whole...
Pressure vessel without supports with a volume of 15 l in a horizontal design. The aerator is designed for compressed air medium and is made without feet. The maximum operating...
Pressure vessel with a volume of 50 l in a recumbent design on a base. The aerator is designed for the medium compressed air. The maximum operating pressure is 11 bar. The...
Pressure vessel without supports with a volume of 50 litres in a recumbent design. The aerator is designed for compressed air medium and is made without feet. The maximum...
Pressure vessel with a volume of 24 l in a recumbent design on a base. The aerator is designed for the medium compressed air. The maximum operating pressure is 11 bar. The...
Pressure vessel with a volume of 24 l in a recumbent design on a base. The aerator is designed for the medium compressed air. The maximum operating pressure is 11 bar. The...
Pressure vessel with a volume of 15 l in a recumbent design on a base. The aerator is designed for the medium compressed air. The maximum operating pressure is 11 bar. The...
Pressure vessel without supports with a volume of 10 litres in a recumbent design. The aerator is designed for compressed air medium and is made without feet. The maximum...
Pressure vessel with a capacity of 24 l in upright or vertical design. The aerator is designed for the medium compressed air and is built on a base which is part of the whole...
Pressure vessel with a volume of 10 l in a recumbent design on a base. The aerator is designed for the medium compressed air. The maximum operating pressure is 11 bar. The...
Pressure vessel with a volume of 5 l in a recumbent design on a base. The aerator is designed for the medium compressed air. The maximum operating pressure is 11 bar. The weight...
Pressure vessel without supports with a volume of 24 l in a horizontal design. The aerator is designed for compressed air medium and is made without feet. The maximum operating...
Pressure vessel without base with a volume of 5 litres in a recumbent design. The aerator is designed for compressed air medium and is made without feet. The maximum operating...
Pressure vessel with a volume of 24 l in a recumbent design on a base. The aerator is designed for the medium compressed air. The maximum operating pressure is 11 bar. The...
Pressure vessel with a volume of 50 l in a recumbent design on a base. The aerator is designed for the medium compressed air. The maximum operating pressure is 15 bar. The...
Pressure vessel with a capacity of 50 l in upright or vertical design. The aerator is designed for the medium compressed air and is built on a base which is part of the whole...
