    Spare element CHPB-094V for the CHP 094 coarse filter 15 microns · class 8

    Code: CHPB-094V
    Original parts
    Not rated Rating details
    €616,75 –3 %
    Omega Air CHPB-094V
    €616,75 –3 % €598,25 / pcs €494,42 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options
    Spare element CHPB-094V for the CHP1B-094, CHP2B-094 and CHP4B-094 coarse filters — sintered brass. Clean the sintered element in an ultrasonic bath or by blowing it out against the direction of flow; when cleaning is no longer enough, replace it.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Omega Air CHP1B-094
    Coarse filter CHP1B-094 – 100 bar, G 2", 11,917 l/min 15 microns · class 8 · 100 bar
    up to 14 days
    €3 375,18 excl. VAT
    €4 083,97

    With a G 2" thread and a flow of 11,917 l/min at 7 bar, the CHP1B-094 coarse filter traps coarse solid contaminants larger than 15 µm and protects the finer stages after it....

    Code: CHP1B-094
    Omega Air CHP2B-094
    Coarse filter CHP2B-094 – 250 bar, G 2", 11,917 l/min 15 microns · class 8 · 250 bar
    up to 14 days
    €4 411,16 excl. VAT
    €5 337,50

    With a G 2" thread and a flow of 11,917 l/min at 7 bar, the CHP2B-094 coarse filter traps coarse solid contaminants larger than 15 µm and protects the finer stages after it....

    Code: CHP2B-094
    Omega Air CHP4B-094
    Coarse filter CHP4B-094 – 420 bar, G 2", 11,917 l/min 15 microns · class 8 · 420 bar
    up to 14 days
    €5 076,21 excl. VAT
    €6 142,21

    With a G 2" thread and a flow of 11,917 l/min at 7 bar, the CHP4B-094 coarse filter traps coarse solid contaminants larger than 15 µm and protects the finer stages after it....

    Code: CHP4B-094
    Show all related products

    Product detailed description

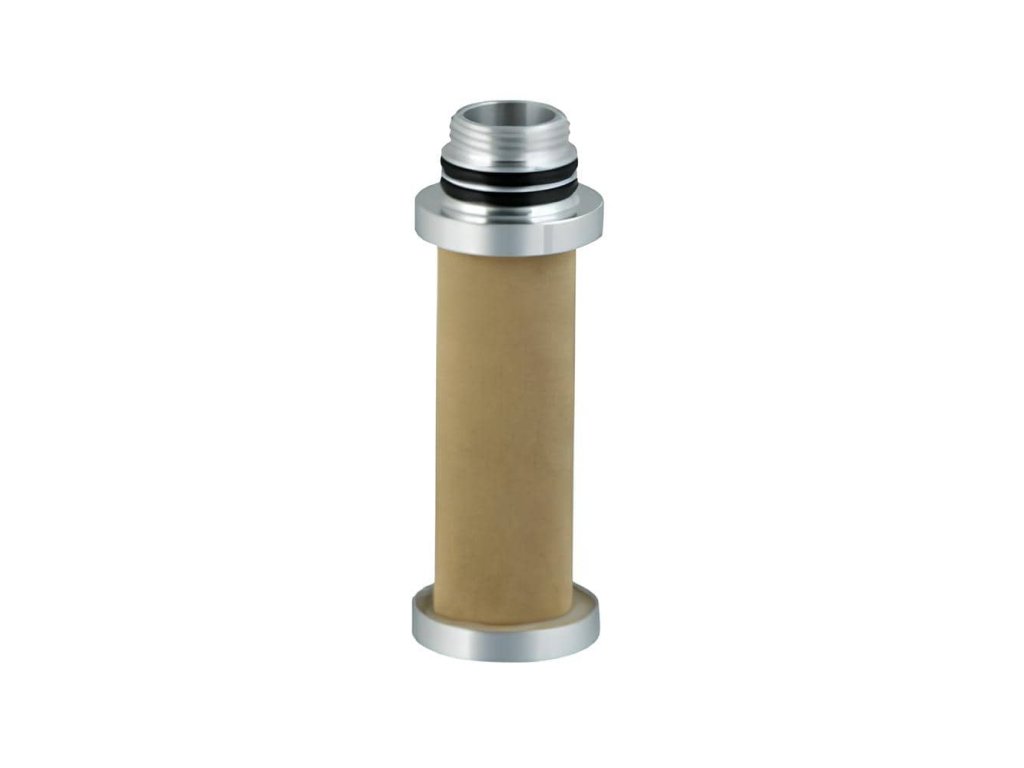

    Filter element CHPB-094V
    Element material: sintered brass.

    Spare element CHPB-094V for the CHP1B-094, CHP2B-094 and CHP4B-094 coarse filters.

    The element traps coarse solid contaminants larger than 15 µm and protects the finer stages after it.

    Specifications

    ParameterValue
    Filtration rating15 µm
    ISO 8573-1 class8-x-x
    Element materialsintered brass
    Element designsintered
    Working temperature+1.5 to +65 °C
    Working pressureaccording to the filter housing: 100, 250 or 420 bar
    Element replacementcleaned in an ultrasonic bath or by blowing out against the direction of flow, replaced as needed

    Which filters it fits

    The element fits filters with the same housing, stage and size for all three pressures:

    FilterWorking pressureConnectionFlow at 7 bar
    CHP1B-094100 barG 2"11,917 l/min
    CHP2B-094250 barG 2"11,917 l/min
    CHP4B-094420 barG 2"11,917 l/min

    Element replacement

    Clean the sintered element in an ultrasonic bath or by blowing it out against the direction of flow; when cleaning is no longer enough, replace it.

    You will find elements for the other stages and sizes among the CHP spare elements.

    Additional parameters

    Category: Filter inserts and accessories for CHP filters
    Version: Coarse filter
    Connecting: 2"
    Filtration: 15 µm
    Working temperature: +1.5 / +65°C
    Flow: 11,917 l/min
    Quality class - solid impurities: 8
