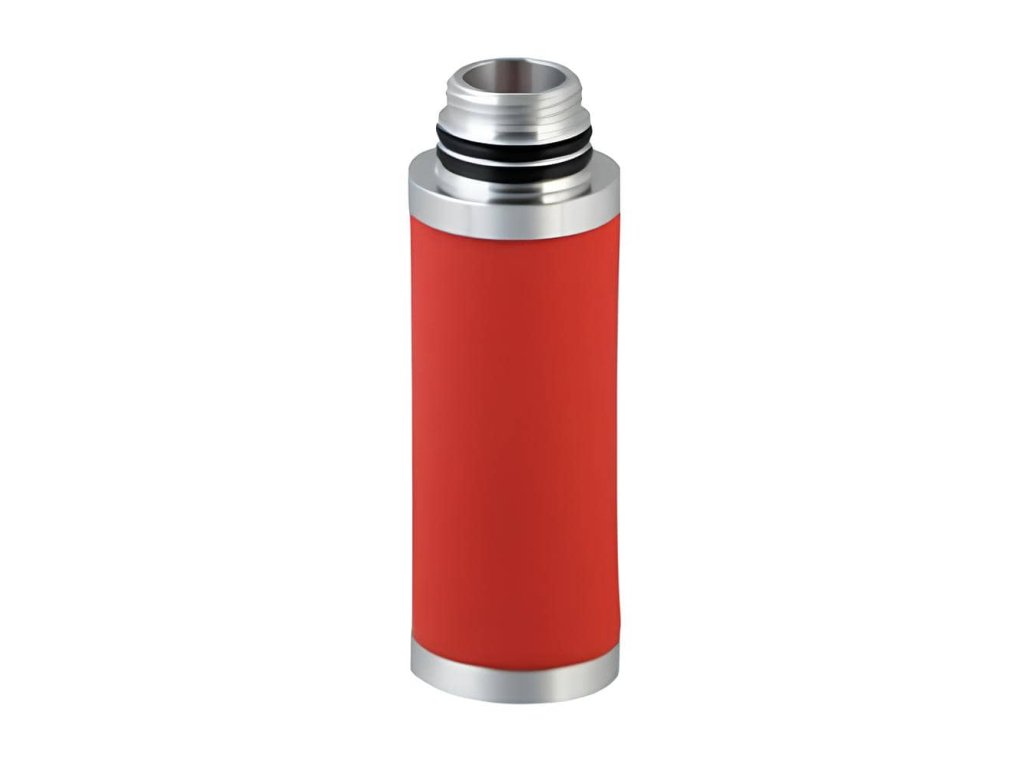

Spare element CHPS-047V for the CHP 047 microfilter 0.01 microns · class 1-x-1

Code: CHPS-047V

Original parts

Not rated Rating details

Brand: OMEGA AIR

€377,02 –3 %

€377,02 –3 % €365,71 / pcs €302,24 excl. VAT

Delivery to:

17.11.2026

Delivery options

Spare element CHPS-047V for the CHP1S-047, CHP2S-047 and CHP4S-047 microfilters — borosilicate microfibres. Replace the element at a pressure drop of 350 mbar, at least once every 12 months.

Detailed information

Free shipping

For purchases over 5,000 CZK

We guarantee

Extended warranty and service

Discount voucher

For every purchase

Return of goods within 30 days

Completely at our expense

Show all related products

Product detailed description

Filter element CHPS-047V — Element material: borosilicate microfibres.

Spare element CHPS-047V for the CHP1S-047, CHP2S-047 and CHP4S-047 microfilters.

The element traps particles larger than 0.01 µm, water and oil; residual oil is below 0.01 mg/m³.

Specifications

Parameter	Value
Filtration rating	0.01 µm
ISO 8573-1 class	1-x-1
Residual oil	< 0.01 mg/m³
Element material	borosilicate microfibres
Element design	pleated
Working temperature	+1.5 to +65 °C
Working pressure	according to the filter housing: 100, 250 or 420 bar
Element replacement	at a pressure drop of 350 mbar, at least once every 12 months

Which filters it fits

The element fits filters with the same housing, stage and size for all three pressures:

Filter	Working pressure	Connection	Flow at 7 bar
CHP1S-047	100 bar	G 1 1/2"	8,250 l/min
CHP2S-047	250 bar	G 1 1/2"	8,250 l/min
CHP4S-047	420 bar	G 1 1/2"	8,250 l/min

Element replacement

Replace the element at a pressure drop of 350 mbar, at least once every 12 months.

You will find elements for the other stages and sizes among the CHP spare elements.

Additional parameters

Category:	Filter inserts and accessories for CHP filters
Version:	Microfilter
Connecting:	1 1/2"
Filtration:	0.01 µm
Working temperature:	+1.5 / +65°C
Flow:	8,250 l/min
Residual oil:	<0,01 mg/m³
Quality class - oils:	1
Quality class - solid impurities:	1
