Microfilter PFS-010 – 14 bar, G 1/2", 2,500 l/min 0.01 microns · class 1-x-1 · 14 bar
Code: PFS-010
Related products
Product detailed description
The PFS-010 process microfilter traps particles larger than 0.01 µm, water and oil; residual oil is below 0.01 mg/m³. It has a G 1/2" connection (female pipe thread), a flow of 2,500 l/min at 7 bar and a working pressure of up to 14 bar.
It belongs to the PF process filters, among the PFS microfilters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 1/2" (female pipe thread) |
| Flow at 7 bar | 2,500 l/min (150 Nm³/h) |
| Working pressure | 14 bar |
| Element temperature | +1.5 to +120 °C |
| Filtration rating | 0.01 µm |
| ISO 8573-1 class | 1-x-1 |
| Residual oil | < 0.01 mg/m³ |
| Element replacement | at least once every 12 months |

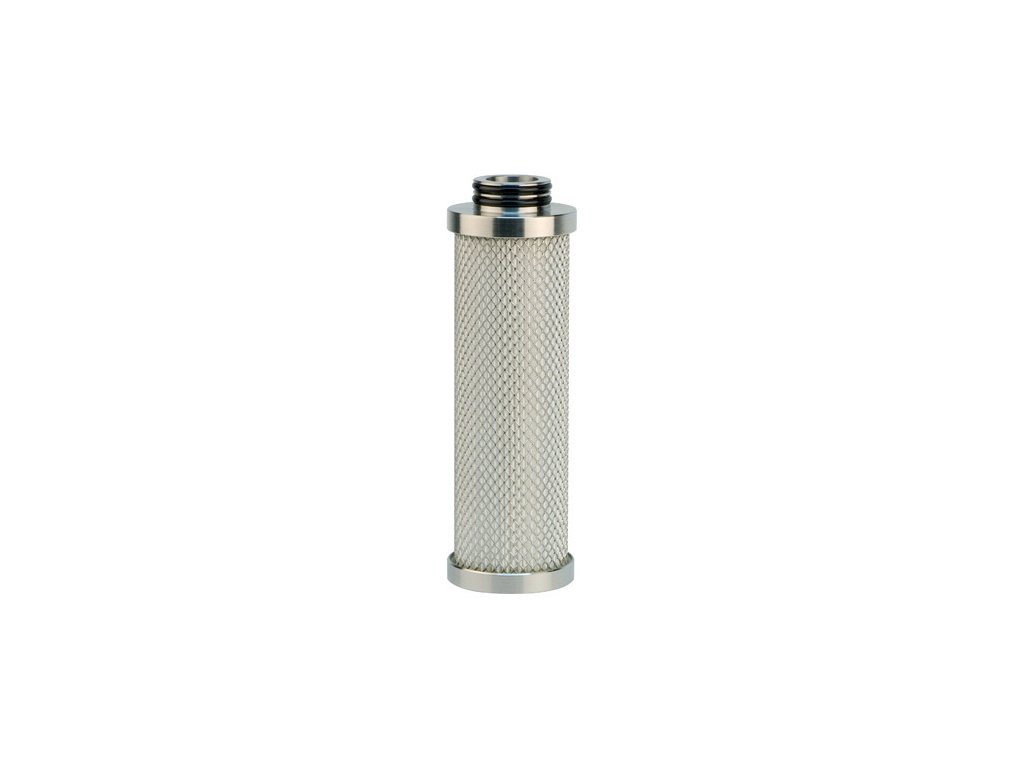

| Element | PFS-010V |
| Element material | borosilicate microfibres |
| Element design | pleated |
| Housing | stainless steel 1.4404 |
| Height A | 239 mm |
| Width across the connections B | 121 mm |
| Housing diameter C | 76.1 mm |
| Weight | 2.1 kg |
| Condensate drain outlet E | G 1/4" thread in the bottom |
| Condensate drain | ordered separately |
Housing and dimensions
The housing is made of stainless steel 1.4404, or 1.4301 on request, with the outer surface polished to Ra 1.6 and EPDM seals (FKM or silicone on request). It withstands −20 to +150 °C; the actual limit depends on the seals and the element.
For oil separation, the air flows through the coalescing element from the inside out, and the filter is mounted head up with the bowl down.
According to the manufacturer: height A 239 mm, width across the connections B 121 mm, housing diameter C 76.1 mm. Weight 2.1 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it is multiplied by the correction factor; at 14 bar it is 1.88:
| Pressure (bar) | 4 | 7 | 10 | 14 |
|---|---|---|---|---|
| Flow (l/min) | 1,575 | 2,500 | 3,450 | 4,700 |
Element and accessories
Where to place it
It goes after the PFM fine pre-filter, which protects it.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | PFS stainless steel compressed air microfilters up to 14 bar |
|---|---|
| Version: | Microfilter |
| Pressure: | 14 bar |
| Connecting: | 1/2" |
| Dimensions: | 239 × 121 × 76.1 mm |
| Filtration: | 0.01 µm |
| Filter insert: | PFS-010V |
| Material: | Stainless steel |
| Condensate discharge: | Without drain |
| Number of inserts: | 1 |
| Working temperature: | +1.5 / +120 °C |
| Flow: | 2,500 l/min |
| Residual oil: | <0,01 mg/m³ |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
