Brakes for ABS piston rods on pneumatic cylinders
 |
|

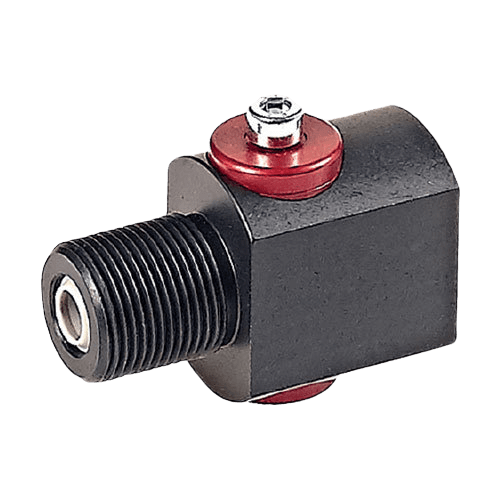

ABS air brakes for ISO 6432 cylinders |
|||||
| Ordering number |
Code | Function | For cylinders mm |
Pressure bar |
Temperature °C |
| 042022 | ABS0020CRD | NC | 20 | 4 - 8 | -10/+80 |
| 042023 | ABS0025CRD | NC | 25 | 4 - 8 | -10/+80 |
| 042032 | ABS0020ARD | NO | 20 | 4 - 8 | -10/+80 |
| 042033 | ABS0025ARD | NO | 25 | 4 - 8 | -10/+80 |
ABS air brakes for ISO 15552 cylinders |
|||||
| Ordering number |
Code | Function | For cylinders mm |
Pressure bar |
Temperature °C |
| 042001 | ABS032CRD | NC | 32 | 4 - 8 | -10/+80 |
| 042002 | ABS040CRD | NC | 40 | 4 - 8 | -10/+80 |
| 042003 | ABS050CRD | NC | 50 | 4 - 8 | -10/+80 |
| 042004 | ABS063CRD | NC | 63 | 4 - 8 | -10/+80 |
| 042005 | ABS080CRD | NC | 80 | 4 - 8 | -10/+80 |
| 042006 | ABS100CRD | NC | 100 | 4 - 8 | -10/+80 |
| 042007 | ABS125CRD | NC | 125 | 4 - 8 | -10/+80 |
| 042011 | ABS032ARD | NO | 32 | 4 - 8 | -10/+80 |
| 042012 | ABS040ARD | NO | 40 | 4 - 8 | -10/+80 |
| 042013 | ABS050ARD | NO | 50 | 4 - 8 | -10/+80 |
| 042014 | ABS063ARD | NO | 63 | 4 - 8 | -10/+80 |
| 042015 | ABS080ARD | NO | 80 | 4 - 8 | -10/+80 |
| 042016 | ABS100ARD | NO | 100 | 4 - 8 | -10/+80 |
| 042017 | ABS125ARD | NO | 125 | 4 - 8 | -10/+80 |
Product sorting
List of products
ABS piston rod brake for 100 mm diameter cylinders with NC - normally closed function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 100 mm diameter cylinders with NO - normally open function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 20mm diameter cylinders with NC - normally closed function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 6432.
ABS piston rod brake for 20mm diameter cylinders with NO - normally open function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 6432.
ABS piston rod brake for 25 mm diameter cylinders with NC - normally closed function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 6432.
ABS piston rod brake for 25 mm diameter cylinders with NO - normally open function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 6432.
ABS piston rod brake for 32 mm diameter cylinders with NC - normally closed function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 32 mm diameter cylinders with NO - normally open function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 40 mm diameter cylinders with NC - normally closed function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 40 mm diameter cylinders with NO - normally open function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 50 mm diameter cylinders with NC - normally closed function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 50 mm diameter cylinders with NO - normally open function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 63 mm diameter cylinders with NC - normally closed function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 63 mm diameter cylinders with NO - normally open function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 80 mm diameter cylinders with NC - normally closed function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 80 mm diameter cylinders with NO - normally open function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 125 mm diameter cylinders with NC - normally closed function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
ABS piston rod brake for 125 mm diameter cylinders with NO - normally open function. Working pressure 4 to 8 bar. Designed for cylinders manufactured to ISO 15 552.
