Activated carbon filter CHP1A-003 – 100 bar, G 1/4", 667 l/min oil below 0.005 mg/m³ · class 1-x-1 · 100 bar
Code: CHP1A-003
Related products
Product detailed description

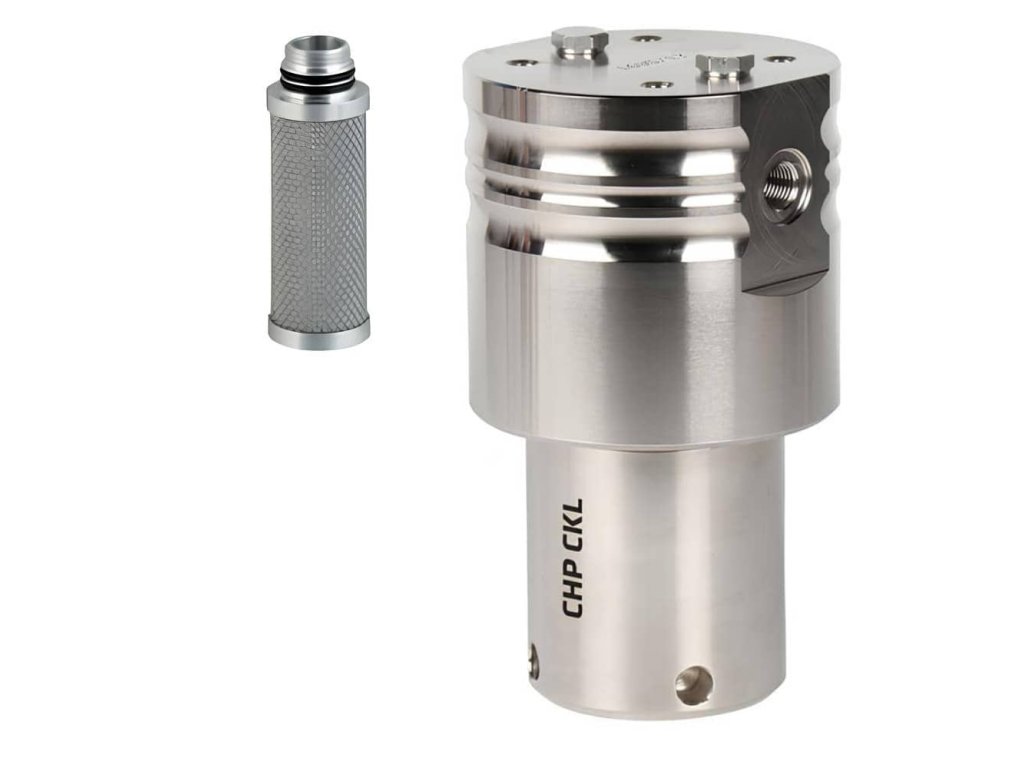

The CHP1A-003 high-pressure activated carbon filter removes residual oil, oil vapours, hydrocarbons and odours; residual oil is below 0.005 mg/m³. It has a G 1/4" thread, a flow of 667 l/min at 7 bar and a working pressure of up to 100 bar.
It belongs to the range of CHP1 high-pressure filters, among the CHP1A activated carbon filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 1/4" (female pipe thread) |
| Flow at 7 bar | 667 l/min (40 Nm³/h) |
| Working pressure | 100 bar |
| Working temperature | +1.5 to +45 °C |
| ISO 8573-1 class | 1-x-1 |
| Residual oil | < 0.005 mg/m³ |
| Element replacement | every 6 months |
| Element | CHPA-003V |
| Element material | activated carbon |
| Housing | carbon steel with chemical nickel plating |
| Height A | 182 mm |
| Head width B | 98 mm |
| Maximum width C | 104 mm |
| From the top edge D | 30 mm |
| Weight | 7.6 kg |
| Condensate drain | ordered separately |
| Condensate outlet | G 1/4" opening in the bottom |
Housing and dimensions
The housing is made of ANSI A-105 carbon steel with chemical nickel plating, the fittings and bolts are made of stainless steel 1.4404 and the seals of FKM with a PTFE back-up ring. The air is connected through female pipe threads in the filter head; the condensate leaves through a G 1/4" opening in the bottom.
According to the manufacturer: height A 182 mm, head width B 98 mm, maximum width C 104 mm and from the top edge D 30 mm. Weight 7.6 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a higher pressure, it is multiplied by the correction factor; from 100 bar it is 12:
| Pressure (bar) | 7 | 25 | 40 | 64 | 100 |
|---|---|---|---|---|---|
| Flow (l/min) | 667 | 2,001 | 3,335 | 5,336 | 8,004 |
Element and accessories
| For this filter: | |
|---|---|
| Spare element | CHPA-003V |
| Condensate drain (ordered separately) | TD420M-230VAC, TD420M-24VDC |
| Wall bracket | CHP-WS |
| Water separator before the filter | CHP cyclone separators |
Where to place it
It always goes after the CHP1S microfilter: activated carbon must not work in an oil-saturated environment, and solid particle class 1 only applies with the microfilter.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | Air filters CHP1A with activated carbon up to 100 bar |
|---|---|
| Version: | Activated carbon |
| Pressure: | 100 bar |
| Connecting: | 1/4" |
| Dimensions: | 182 × 98 × 104 mm |
| Filtration: | Activated carbon |
| Filter insert: | CHPA-003V |
| Material: | Carbon steel |
| Condensate discharge: | Without drain |
| Working temperature: | +1.5 / +45°C |
| Flow: | 667 l/min |
| Residual oil: | <0,005 mg/m³ |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
