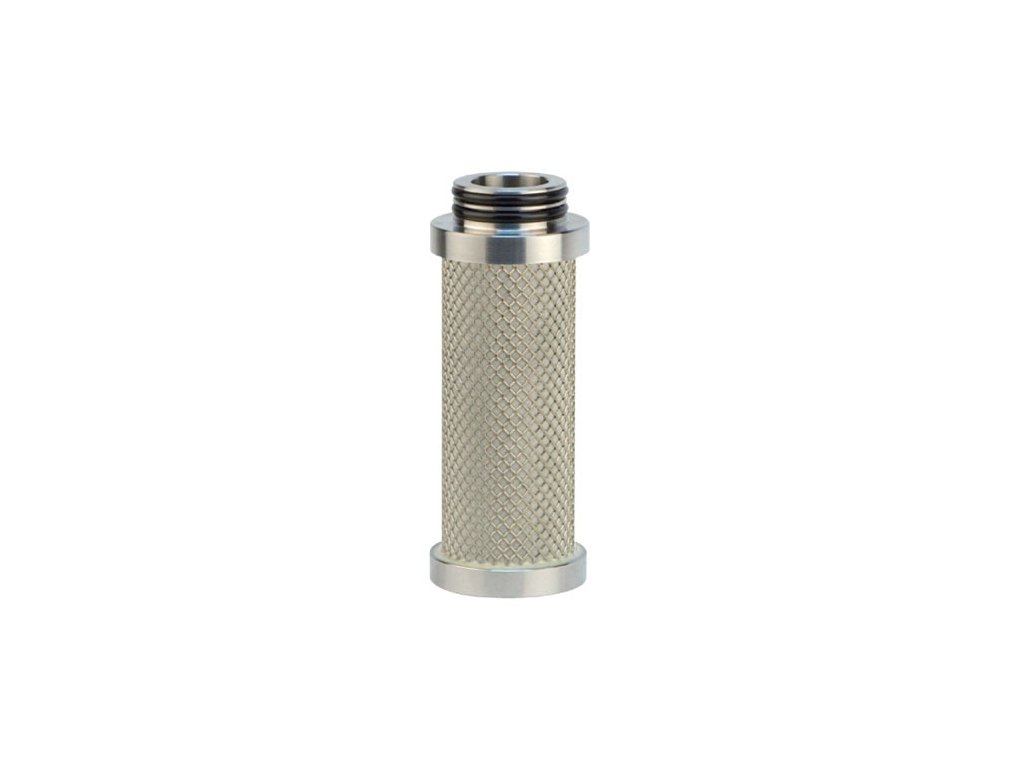

    Spare element PFA-070V – activated carbon for PF, HPF, WFIT and WFIF filters of size 070

    Code: PFA-070V
    Original parts
    Not rated Rating details
    €421,34 –3 %
    Omega Air PFA-070V
    €421,34 –3 % €408,70 / pcs €337,77 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options
    Spare element PFA-070V for PF, HPF, WFIT and WFIF activated carbon filters of size 070 — borosilicate microfibres and activated carbon. Replace it at least once every 12 months.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Omega Air HPFA-070
    Activated carbon filter HPFA-070 – 50 bar, G 1 1/2", 10,000 l/min activated carbon · class 1-x-1 · 50 bar
    up to 14 days
    €2 566,63 excl. VAT
    €3 105,62

    With a G 1 1/2" connection and a flow of 10,000 l/min at 7 bar, the HPFA-070 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 50 bar,...

    Code: HPFA-070

    Product detailed description

    Filter element PFA-070V
    Element material: borosilicate microfibres and activated carbon.

    Spare element PFA-070V for the HPFA-070 activated carbon filter.

    The element removes oil vapours, hydrocarbons and odours.

    Specifications

    ParameterValue
    ISO 8573-1 class1-x-1
    Element materialborosilicate microfibres and activated carbon
    Element designwrapped
    Element temperature+1.5 to +45 °C
    Size070
    Element replacementat least once every 12 months

    Which filters it fits

    The element fits filters of all ranges with the same size and stage:

    FilterRangeConnectionFlow at 7 barNumber of elements
    HPFA-070HPF, 50 barG 1 1/2" (female pipe thread)10,000 l/min1

    Element replacement

    Replace the element at least once every 12 months. Depressurise the filter before replacing it, and once a year also check the housing for visible damage.

    You will find elements for the other stages and sizes among the spare elements for process filters.

    Additional parameters

    Category: Spare filter elements for PF, HPF, WFIT and WFIF process filters
    Version: Activated carbon
    Dimensions: 386 × 180 × 114 mm
    Filtration: Activated carbon
    Filter insert: PFA-070V
    Working temperature: +1.5 / +45°C
    Flow: 10,000 l/min
    Quality class - oils: 1
    Quality class - solid impurities: 1
