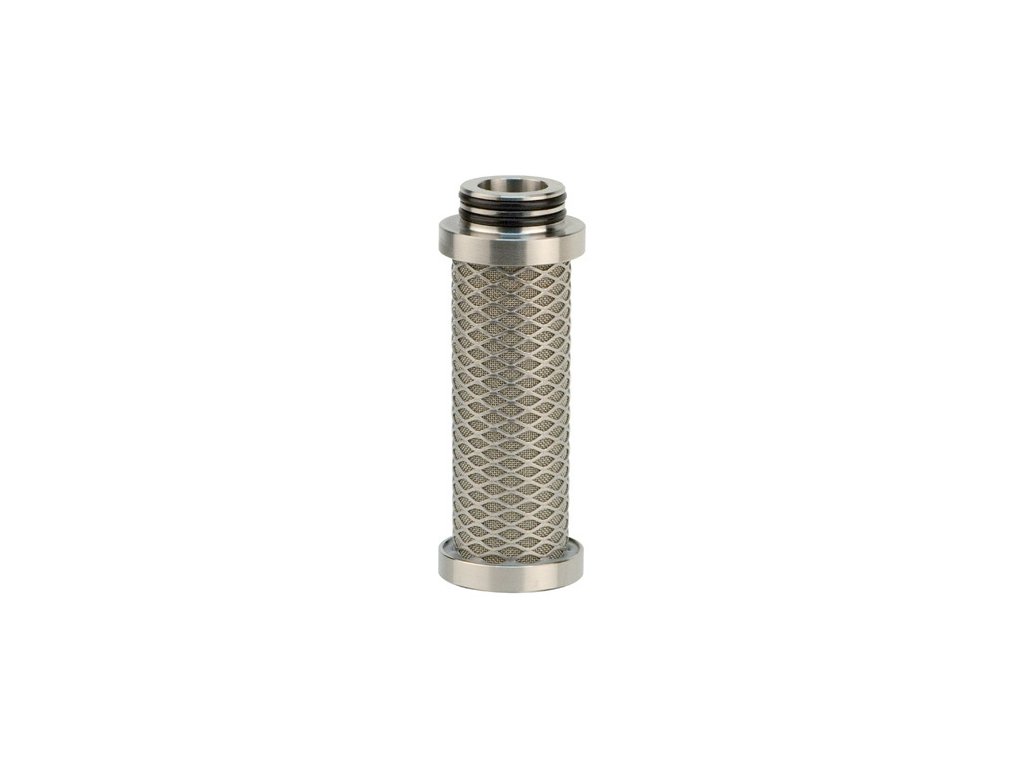

Spare element PFN25-010V – 25 micron stainless steel mesh for PF, HPF, WFIT, WFIF and SPF filters of size 010
Code: PFN25-010V
Related products
Product detailed description
Spare element PFN25-010V for the PFN25-010, WFITN25-010, WFIFN25-010 and SPFN25-010 coarse filters.
The element traps coarse solid contaminants larger than 25 µm and protects the finer stages after it.
Specifications
| Parameter | Value |
|---|---|
| Filtration rating | 25 µm |
| Element material | stainless steel mesh 1.4301 |
| Element design | wrapped |
| Element temperature | +1.5 to +150 °C |
| Size | 010 |
| Element replacement | at least once every 12 months |
Which filters it fits
The element fits filters of all ranges with the same size and stage:
| Filter | Range | Connection | Flow at 7 bar | Number of elements |
|---|---|---|---|---|
| PFN25-010 | PF, 14 bar | G 1/2" (female pipe thread) | 2,500 l/min | 1 |
| WFITN25-010 | WFIT, 14 bar | G 1/2" (female pipe thread) | 2,500 l/min | 1 |
| WFIFN25-010 | WFIF, 14 bar | DN15 flange | 2,500 l/min | 1 |
| SPFN25-010 | SPF, 14 bar | G 1/2" (female pipe thread) | 2,500 l/min | 1 |
Element replacement
Replace the element at least once every 12 months. Depressurise the filter before replacing it, and once a year also check the housing for visible damage.
You will find elements for the other stages and sizes among the spare elements for process filters.
Additional parameters
| Category: | PFN25 stainless steel coarse mesh filters up to 14 bar |
|---|---|
| Version: | Coarse filter |
| Filtration: | 25 µm |
| Filter insert: | PFN25-010V |
| Working temperature: | +1.5 / +150 °C |
| Flow: | 2,500 l/min |
