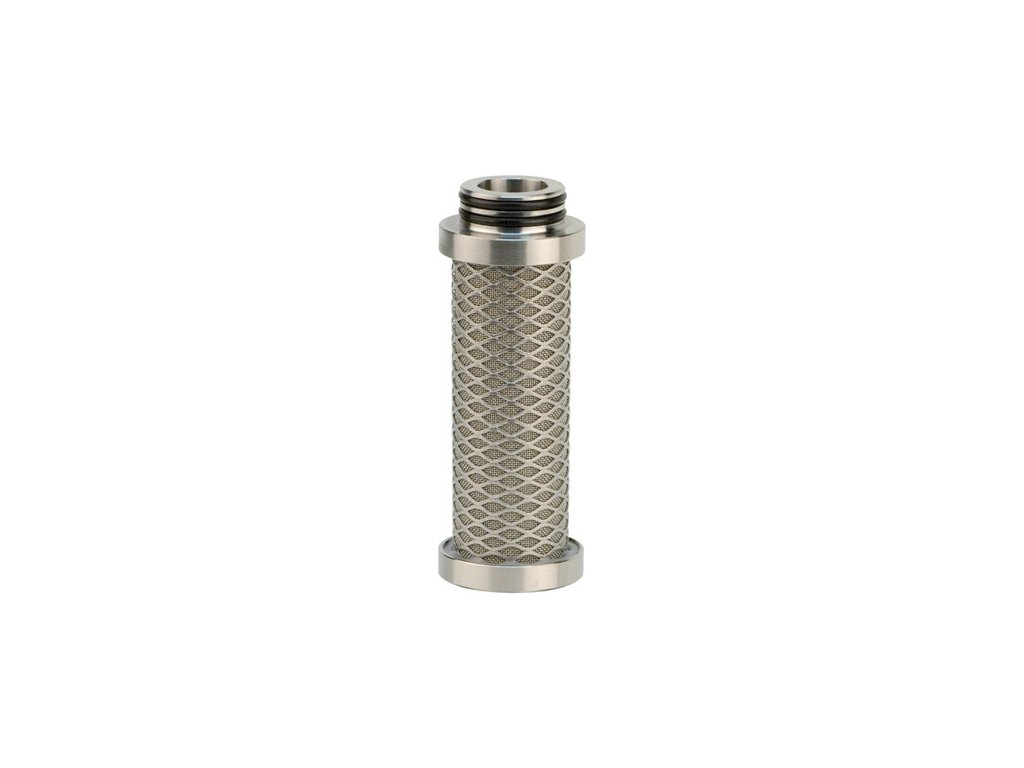

    Spare element PFIW1-175V – 1 micron sintered stainless steel, welded for PF, WFIT and WFIF filters of size 175

    Code: PFIW1-175V
    Original parts
    Not rated Rating details
    €892,34 –3 %
    Omega Air PFIW1-175V
    €892,34 –3 % €865,57 / pcs €715,35 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options
    Spare element PFIW1-175V for PF, WFIT and WFIF welded pre-filters of size 175 — sintered stainless steel 1.4404. Replace it at least once every 12 months.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Omega Air PFIW1-175
    Welded pre-filter PFIW1-175 – 14 bar, G 2 1/2", 28,000 l/min 1 micron sintered stainless steel, welded · 14 bar
    up to 14 days
    €3 392,05 excl. VAT
    €4 104,38

    With a G 2 1/2" connection and a flow of 28,000 l/min at 7 bar, the PFIW1-175 welded pre-filter traps solid particles larger than 1 µm. Working pressure up to 14 bar, stainless...

    Code: PFIW1-175
    Omega Air PFIW1-450
    REQUEST
    €10 232,12 –100 %
    Welded pre-filter PFIW1-450 – 10 bar, DN100, 84,000 l/min 1 micron sintered stainless steel, welded · 10 bar
    up to 14 days
    €0,04 excl. VAT
    €0,05

    With a DN100 connection and a flow of 84,000 l/min at 7 bar, the PFIW1-450 welded pre-filter traps solid particles larger than 1 µm. Working pressure up to 10 bar, stainless...

    Code: PFIW1-450

    Product detailed description

    Filter element PFIW1-175V
    Element material: sintered stainless steel 1.4404.

    Spare element PFIW1-175V for the PFIW1-175 welded pre-filter.

    The element traps solid particles larger than 1 µm.

    Specifications

    ParameterValue
    Filtration rating1 µm
    Element materialsintered stainless steel 1.4404
    Element designsintered, welded
    Element temperature+1.5 to +150 °C
    Size175
    Element replacementat least once every 12 months

    Which filters it fits

    The element fits filters of all ranges with the same size and stage:

    FilterRangeConnectionFlow at 7 barNumber of elements
    PFIW1-175PF, 14 barG 2 1/2" (female pipe thread)28,000 l/min1
    PFIW1-450PF, 10 barDN100 flange84,000 l/min3

    Large flanged filters have several identical elements — the number is given in the column.

    Element replacement

    Replace the element at least once every 12 months. Depressurise the filter before replacing it, and once a year also check the housing for visible damage.

    You will find elements for the other stages and sizes among the spare elements for process filters.

    Additional parameters

    Category: Spare filter elements for PF, HPF, WFIT and WFIF process filters
    Version: Dust filter
    Filtration: 1 µm
    Filter insert: PFIW1-175V
    Working temperature: +1.5 / +150 °C
    Flow: 28,000 l/min
