Spare element BFB-0240V for BFB coarse filters 15 microns · class 7
Code: BFB-0240V
Related products
Product detailed description

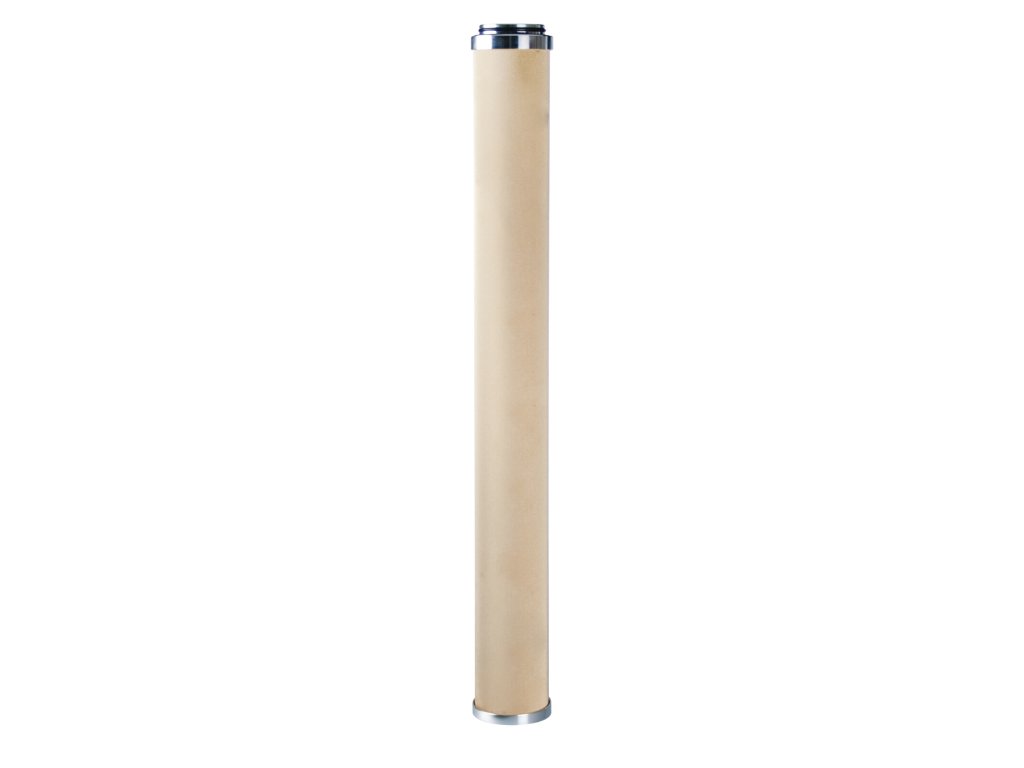

Spare element BFB-0240V for BFB coarse filters of all sizes.
The element traps coarse solid contaminants larger than 15 µm and protects the finer stages after it.
Specifications
| Parameter | Value |
|---|---|
| Filtration rating | 15 µm |
| ISO 8573-1 class | 7-x-x |
| Pressure drop of a new element (dry / wet) | 20 mbar |
| Filter material | sintered brass |
| Element dimensions | diameter 90 mm, height 760 mm |
| Flow direction | from the inside out |
| Working temperature | +1.5 to +65 °C |
| Element replacement | once a year or at a pressure drop of 350 mbar |
Which filters it fits
The element is the same for all sizes; only the number of elements differs:
| Filter | Connection | Flow at 7 bar | Number of elements |
|---|---|---|---|
| BFB-0240 | DN80 flange | 28,000 l/min | 1 |
| BFB-0300 | DN100 flange | 52,500 l/min | 2 |
| BFB-0450 | DN125 flange | 78,333 l/min | 3 |
| BFB-0600 | DN150 flange | 105,000 l/min | 4 |
| BFB-0900 | DN150 flange | 156,667 l/min | 6 |
| BFB-1200 | DN200 flange | 209,167 l/min | 8 |
| BFB-1500 | DN200 flange | 261,667 l/min | 10 |
| BFB-1800 | DN250 flange | 314,167 l/min | 12 |
| BFB-2500 | DN250 flange | 418,333 l/min | 16 |
| BFB-3000 | DN300 flange | 523,333 l/min | 20 |
Element composition
- sintered brass filter layer
- aluminium end caps, NBR seals
Element replacement
Recommended replacement once a year or at a pressure drop of 350 mbar. Depressurise the filter before replacing the elements.
The sintered element can be cleaned in an ultrasonic bath or by back-flushing; when cleaning is no longer enough, it is replaced with a new one.
Elements for all stages, drains and the gauge are in the accessories for BF filters.
Additional parameters
| Category: | Accessories for BF flanged filters: elements, drains and gauge |
|---|---|
| Version: | Coarse filter |
| Pressure: | 16 bar |
| Filtration: | 15 µm |
| Working temperature: | +1.5 / +65°C |
| Quality class - solid impurities: | 7 |
