Accessories for BF flanged filters: elements, drains and gauge

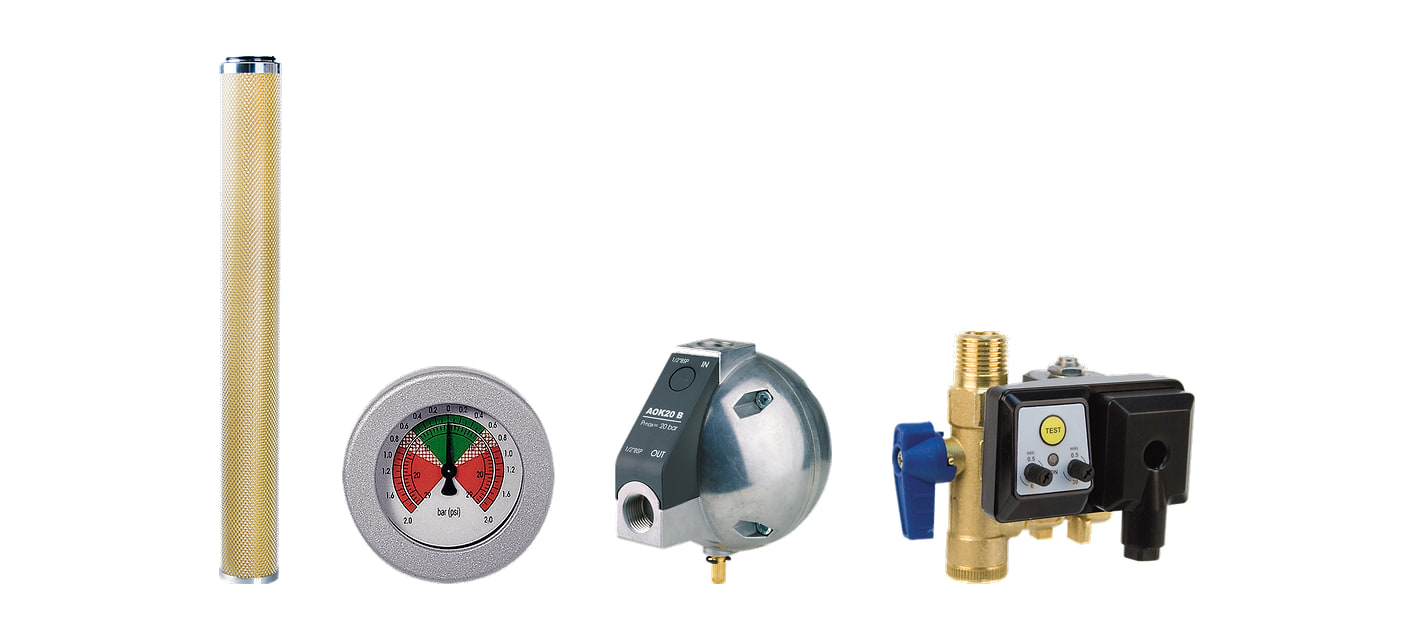

Accessories for BF filters: spare elements of all six stages, condensate drains and a differential pressure gauge that shows when to replace the elements.
The element is the same for all sizes of BF flanged filters — diameter 90 mm, height 760 mm. The filter size only determines how many there are: from one to twenty.
Spare elements
Elements by stage
| BF spare elements | ||||
|---|---|---|---|---|
| Element | Stage | ISO 8573-1 class | Pressure drop of a new element (dry / wet) | Replacement |
| BFB-0240V | coarse filter 15 µm | 7-x-x | 20 mbar | once a year or at 350 mbar |
| BFP-0240V | basic filter 3 µm | 6-x-x | 10 / 20 mbar | once a year or at 350 mbar |
| BFR-0240V | dust filter 1 µm | 3-x-x | 20 / 40 mbar | once a year or at 350 mbar |
| BFM-0240V | fine pre-filter 0.1 µm | 2-x-2 | 50 / 120 mbar | once a year or at 350 mbar |
| BFS-0240V | microfilter 0.01 µm | 1-x-1 | 80 / 190 mbar | once a year or at 350 mbar |
| BFA-0240V | activated carbon | 1-x-1 | 60 mbar | within 6 months at the latest |
Number of elements in the filter: size 0240 one, 0300 two, 0450 three, 0600 four, 0900 six, 1200 eight, 1500 ten, 1800 twelve, 2500 sixteen and 3000 twenty.
#showmore#
Condensate drains and clogging indication
MDA 60 differential pressure gauge
Shows the pressure drop of the elements, i.e. when to replace them.
Condensate drain
BF filters are supplied without a condensate drain. For them, the manufacturer lists a manual valve, the AOK 13PA and AOK 20B float drains, the TD 16M timed drain and electronic drains.
The AOK 13PA float drain is for pressures up to 13 bar; at a higher working pressure, choose the AOK 20B or the TD 16M timed drain.
You will find more drains among the condensate drains for filters.
When to replace the elements
Elements B to S are replaced at least once a year or at a pressure drop of 350 mbar — this is shown by the MDA 60 differential pressure gauge. Activated carbon elements are replaced by time, within 6 months at the latest.
The sintered element of the B coarse filter can be cleaned in an ultrasonic bath or by back-flushing. Depressurise the filter before replacing the elements.
Ventilek’s tip
Choose the drain by pressure. The AOK 13PA float drain only goes up to 13 bar. When the air line works at a higher pressure, choose the AOK 20B float drain or the TD 16M timed drain.
- Is the element the same for all sizes?
- Yes, diameter 90 mm and height 760 mm. The filter size only determines the number of elements: 1 to 20.
- How many elements do I need?
- Depending on the filter size: 0240 one, 0300 two, 0450 three, 0600 four, 0900 six, 1200 eight, 1500 ten, 1800 twelve, 2500 sixteen and 3000 twenty.
- Is a drain included with the filter?
- No, the condensate drain is ordered separately.
- How do I know it is time to replace the elements?
- By the pressure drop on the MDA 60 differential pressure gauge: elements B to S at 350 mbar, at the latest after a year. Activated carbon within 6 months at the latest.
