Spare element BFA-0240V for BFA activated carbon filters oil below 0.005 mg/m³ · class 1-x-1
Code: BFA-0240V
Related products
Product detailed description

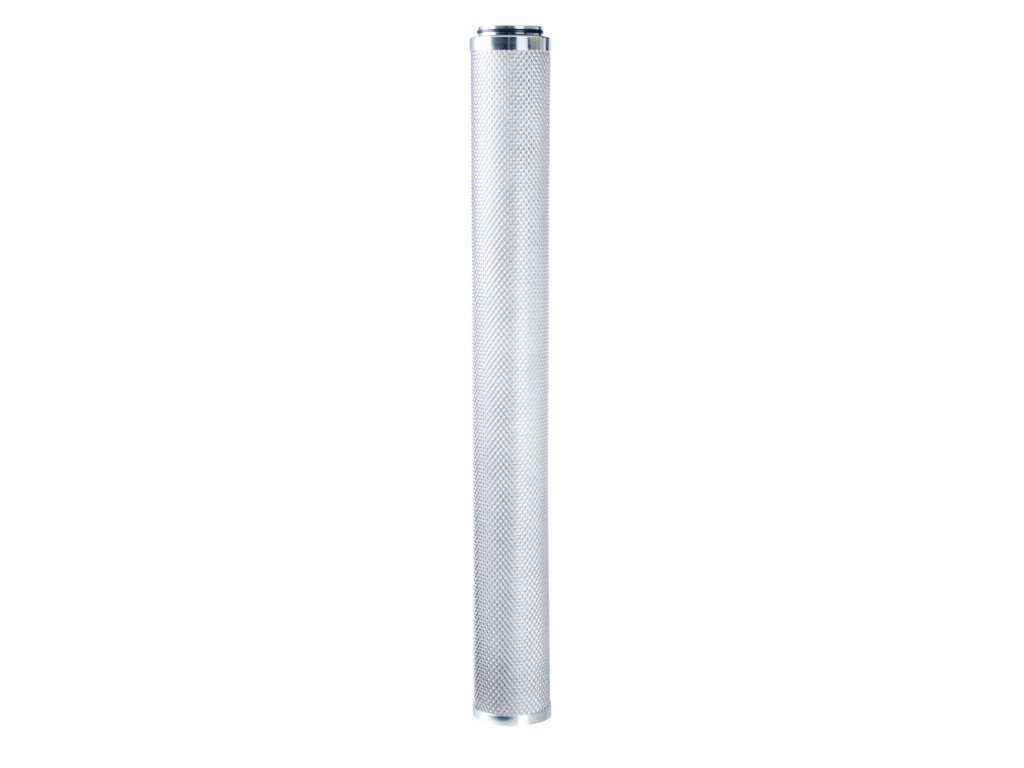

Spare element BFA-0240V for BFA activated carbon filters of all sizes.
The element removes residual oil, oil vapours, hydrocarbons and odours; residual oil is below 0.005 mg/m³.
Specifications
| Parameter | Value |
|---|---|
| ISO 8573-1 class | 1-x-1 |
| Residual oil | < 0.005 mg/m³ |
| Pressure drop of a new element (dry / wet) | 60 mbar |
| Filter material | granular activated carbon and borosilicate microfibres |
| Activated carbon in the element | 227 g |
| Element dimensions | diameter 90 mm, height 760 mm |
| Flow direction | from the inside out |
| Working temperature | +1.5 to +45 °C |
| Element replacement | within 6 months at the latest |
Which filters it fits
The element is the same for all sizes; only the number of elements differs:
| Filter | Connection | Flow at 7 bar | Number of elements |
|---|---|---|---|
| BFA-0240 | DN80 flange | 28,000 l/min | 1 |
| BFA-0300 | DN100 flange | 52,500 l/min | 2 |
| BFA-0450 | DN125 flange | 78,333 l/min | 3 |
| BFA-0600 | DN150 flange | 105,000 l/min | 4 |
| BFA-0900 | DN150 flange | 156,667 l/min | 6 |
| BFA-1200 | DN200 flange | 209,167 l/min | 8 |
| BFA-1500 | DN200 flange | 261,667 l/min | 10 |
| BFA-1800 | DN250 flange | 314,167 l/min | 12 |
| BFA-2500 | DN250 flange | 418,333 l/min | 16 |
| BFA-3000 | DN300 flange | 523,333 l/min | 20 |
Element composition
- granular activated carbon filling
- borosilicate microfibre filter layer
- polyester fleece protective layer
- stainless steel 1.4301 support meshes
- aluminium end caps, NBR seals
Element replacement
Replace the activated carbon elements by time, within 6 months at the latest — they must not work in an oil-saturated environment.
Elements for all stages, drains and the gauge are in the accessories for BF filters.
Additional parameters
| Category: | Accessories for BF flanged filters: elements, drains and gauge |
|---|---|
| Version: | Activated carbon |
| Pressure: | 16 bar |
| Filtration: | Activated carbon |
| Working temperature: | +1.5 / +45°C |
| Residual oil: | <0,005 mg/m³ |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
