Spare sterile element SFS-006V – 0.01 micron for the SFS-006 sterile filter
Code: SFS-006V
Related products
Product detailed description

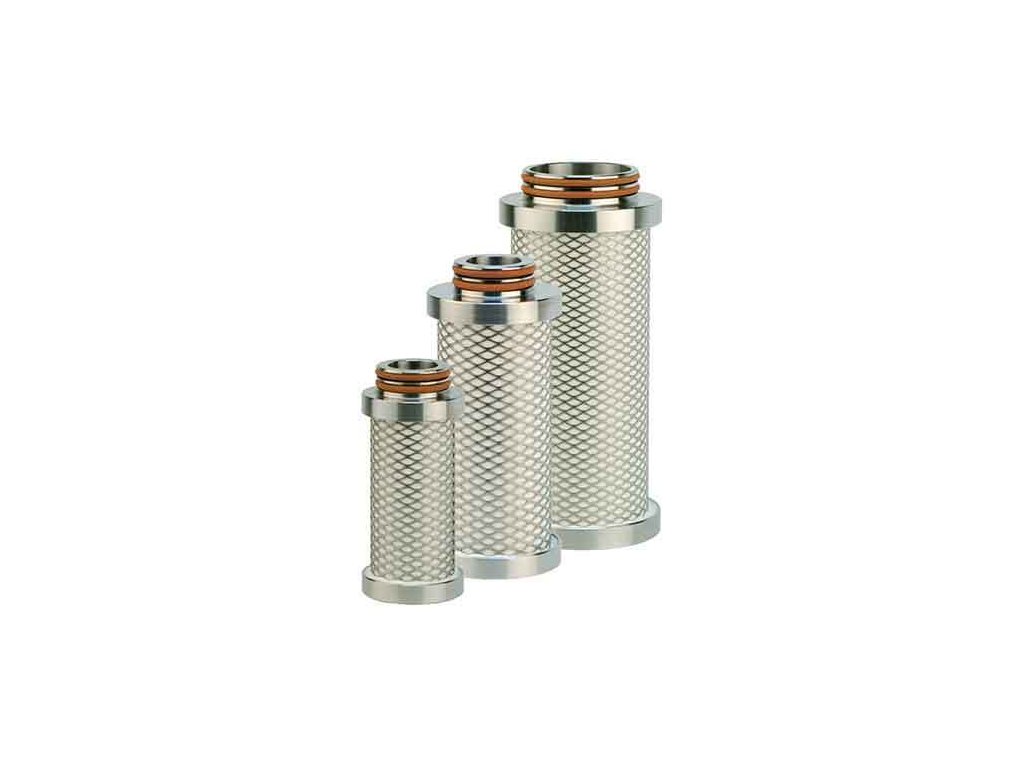

Spare sterile element SFS-006V for the SFS-006 sterile filter.
The element traps submicron particles down to 0.01 µm, including microorganisms (bacteria), and according to the manufacturer withstands a large number of sterilisation cycles.
Specifications
| Parameter | Value |
|---|---|
| Filtration rating | 0.01 µm |
| ISO 8573-1 class | 1-x-x |
| Element material | borosilicate microfibres |
| Element design | wrapped |
| Element temperature | −20 to +150 °C |
| Element replacement | at least once every 12 months |
Which filters it fits
The element fits these sterile filters:
| Filter | Connection | Flow at 7 bar | Number of elements |
|---|---|---|---|
| SFS-006 | DN10, tube ø 17.2 mm | 1,250 l/min | 1 |
The same sterile element also has the code PFSF-005V for PF and HPF process filters and SPF filters.
Element replacement
Replace the element at least once every 12 months. Depressurise the filter before replacing it, and once a year also check the housing for visible damage.
You will find other sizes among the SF sterile filters. You will find the elements for SPF filters among the PF range spare elements.
Additional parameters
| Category: | SF sterile stainless steel filters up to 10 bar, DN10 to DN200 |
|---|---|
| Filtration: | 0.01 µm |
| Filter insert: | SFS-006V |
| Working temperature: | -20 / +150°C |
| Flow: | 1,250 l/min |
| Product type: | Filter element |
| Quality class - solid impurities: | 1 |
| Filtration stage: | Microfilter 0.01 µm |
