Omega Air SF and SPF sterile stainless steel compressed air filters

Sterile filters from the Slovenian manufacturer Omega Air clean compressed air, process air and technical gases to a sterile level: the sterile element traps submicron particles down to 0.01 µm, including microorganisms (bacteria). The housings are made of stainless steel 1.4404 with the outer surface polished to Ra 0.8.
The SF range is a sterile filter up to 10 bar with DN10 to DN200 connections; the SPF range is a process housing up to 14 bar with a G 1/4" to 3" thread and twelve stages from a stainless steel mesh to a sterile element. Alongside them are the AV and AVI air venting filters for venting tanks and the MSS mobile steam steriliser. The filters are part of the range of industrial compressed air filters.
Choose a range
The range is chosen by connection, pressure and application. Each tile leads to a range with all its sizes.

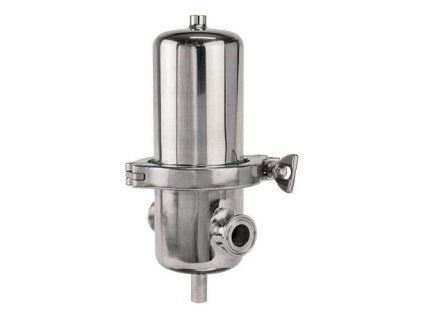

SF sterile filters up to 10 bar
0.01 µm sterile element, DN10 to DN200 connections, housing designed for sterilisation.

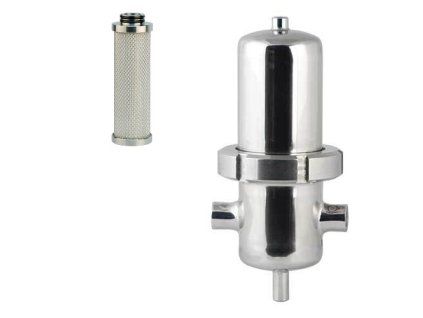

SPF filters up to 14 bar
Polished stainless steel housing with a thread, 12 stages from a mesh to a sterile element.
Ranges at a glance
| Sterile and air venting filter ranges | ||||
|---|---|---|---|---|
| Range | Housing | Working pressure | Connection | Filtration stages |
| SF filters | sterile filter, stainless steel 1.4404 | 10 bar | DN10 to DN200 | SF |
| SPF filters | process housing, stainless steel 1.4404 | 14 bar | G 1/4" to 3" | N25, I20, IW20, N5, P, I1, IW1, R, M, S, A, SF |
| AV and AVI air venting filters | air venting filter, stainless steel 1.4404 | ambient pressure | DN32 to DN80 (DIN 11851, Tri-clamp) | venting element |
Working pressure, connection, dimensions and weights according to the manufacturer. Air venting filters work at ambient pressure, not in a pressurised line.
Filtration stages
The ISO 8573-1 class is written as solid particles – water – oil. The letter x means that the stage does not determine that component.
| SPF filtration stages | |||||
|---|---|---|---|---|---|
| Stage | Filtration rating | ISO 8573-1 class | Residual oil | Element material | Temperature |
| N25 – coarse filter | 25 µm | – | – | stainless steel mesh 1.4301 | +1.5 to +150 °C |
| I20 – sintered pre-filter | 20 µm | – | – | sintered stainless steel 1.4404 | +1.5 to +150 °C |
| IW20 – welded pre-filter | 20 µm | – | – | sintered stainless steel 1.4404 | +1.5 to +150 °C |
| N5 – basic filter | 5 µm | – | – | stainless steel mesh 1.4301 | +1.5 to +150 °C |
| P – fibre pre-filter | 3 µm | 6-x-x | – | acrylic fibres and cellulose | +1.5 to +65 °C |
| I1 – sintered pre-filter | 1 µm | – | – | sintered stainless steel 1.4404 | +1.5 to +150 °C |
| IW1 – welded pre-filter | 1 µm | – | – | sintered stainless steel 1.4404 | +1.5 to +150 °C |
| R – dust filter | 1 µm | 3-x-x | – | borosilicate microfibres | +1.5 to +120 °C |
| M – fine pre-filter | 0.1 µm | 2-x-2 | < 0.1 mg/m³ | borosilicate microfibres | +1.5 to +120 °C |
| S – microfilter | 0.01 µm | 1-x-1 | < 0.01 mg/m³ | borosilicate microfibres | +1.5 to +120 °C |
| A – activated carbon filter | – | 1-x-1 | – | borosilicate microfibres and activated carbon | +1.5 to +45 °C |
| SF – sterile filter | 0.01 µm | 1-x-x | – | borosilicate microfibres | −20 to +150 °C |
The SF range only has a sterile element. The manufacturer does not state a class for the stainless steel meshes and sintered elements.
#showmore#
How to choose a filter
The SF range is a stand-alone sterile filter up to 10 bar with a DN connection: sizes DN10 to DN80 are for tubes with a diameter of 17.2 to 88.9 mm, up to DN50 with a clamp connection to ISO; sizes DN100 to DN200 have a flange to EN.
The SPF range has a G 1/4" to 3" thread and works up to 14 bar. Depending on the need, a mesh, a sintered, welded or fibre pre-filter, a dust filter, a fine pre-filter, a microfilter, activated carbon or a sterile element is fitted in the same housing — the sterile stage is SPFSF.
For tanks and vessels that draw in and push out air during filling and emptying, there are the AV and AVI air venting filters with a dairy fitting or a Tri-clamp connection. The size is chosen by the flow.
How to put the sterile filtration together

The sterile filter goes at the end of the filtration, after the fine pre-filter and the microfilter. They trap the oil and most of the particles, so the sterile element works with clean air.
The fine pre-filter M goes before the microfilter S and protects its element. The coarser stages — the meshes, the sintered and fibre pre-filters and the dust filter — go at the start; the welded pre-filters IW20 and IW1 are used instead of the sintered I20 and I1.
Sterilisation
The housing of the SF filter is also designed for sterilisation, and according to the manufacturer the sterile element withstands a large number of sterilisation cycles. The working temperature of the sterile element is −20 to +150 °C.
The filters can be steam-sterilised right at the installation site with the MSS mobile steam steriliser: steam at 1 to 3.6 bar and +100 to +135 °C, sterilisation and drying adjustable up to 90 minutes. When sterilising in an autoclave, the elements have to be removed and easily become contaminated when they are refitted — sterilisation in place skips this step.
Filters do not deal with humidity — they only trap water that has already condensed. Water vapour is removed by a compressed air dryer.
Flow at a different pressure

The flows in the tables apply to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, multiply the flow by the correction factor: 1.38 for SF at 10 bar, 1.88 for SPF at 14 bar.
| Flow correction factor by pressure – SF | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Pressure (bar) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Factor | 0.38 | 0.5 | 0.63 | 0.75 | 0.88 | 1 | 1.13 | 1.25 | 1.38 |
| Flow correction factor by pressure – SPF | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure (bar) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| Factor | 0.38 | 0.5 | 0.63 | 0.75 | 0.88 | 1 | 1.13 | 1.25 | 1.38 | 1.5 | 1.63 | 1.75 | 1.88 |
Where sterile filters are used
The manufacturer designs them for packaging lines, biotechnology, breweries, dairies, fermentation processes, food and beverages, pharmaceuticals, hospitals and the chemical industry. Use with technical gases other than air is assessed separately.
Where no sterile stage is needed, stainless steel process filters are suitable — the PF, HPF, WFIT, WFIF, WFIW and WHFIT ranges take the same elements as SPF.
Ventilek’s tip
The sterile element goes last. Install a fine pre-filter and a microfilter before the sterile filter. The sterile element then only has to trap the finest particles, including bacteria.
- What is the difference between SF and SPF?
- SF is a stand-alone sterile filter with a DN connection up to 10 bar. SPF is a process housing with a thread up to 14 bar, into which PF range elements are fitted — from a mesh to a sterile element.
- What does the sterile element trap?
- Submicron particles down to 0.01 µm, including microorganisms (bacteria); solid particle class 1 according to ISO 8573-1.
- What are the AV and AVI air venting filters for?
- They clean the air that flows into or out of a tank when the liquid level changes. They work at ambient pressure and withstand up to +200 °C.
- Can the housing be sterilised?
- The housing of the SF filter is also designed for sterilisation, and according to the manufacturer the sterile element withstands a large number of sterilisation cycles. On site, this can be done with the MSS mobile steam steriliser.
- How often should the elements be replaced?
- At least once every 12 months. Once a year, also check the housing for visible damage.
- Are SFS and PFSF elements the same?
- Yes, for most sizes it is the same sterile element under two codes — for example, SFS-012V and PFSF-010V. The product page of the element links to the other code.
Product sorting
List of products
With a G 3" connection and a flow of 40,000 l/min at 7 bar, the SPFSF-200 sterile filter has a 0.01 µm sterile element (solid particle class 1) for the end of the filtration....
With a DN150 connection and a flow of 224,000 l/min at 7 bar, the SFS-1152 sterile filter traps submicron particles down to 0.01 µm, including microorganisms (bacteria). Working...
With a DN200 connection and a flow of 286,667 l/min at 7 bar, the SFS-1536 sterile filter traps submicron particles down to 0.01 µm, including microorganisms (bacteria). Working...
With a DN200 connection and a flow of 352,000 l/min at 7 bar, the SFS-1920 sterile filter traps submicron particles down to 0.01 µm, including microorganisms (bacteria). Working...
With a DN150 connection and a flow of 160,000 l/min at 7 bar, the SFS-768 sterile filter traps submicron particles down to 0.01 µm, including microorganisms (bacteria). Working...
With a G 1/4" connection and a flow of 1,250 l/min at 7 bar, the SPFA-005 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 3/8" connection and a flow of 1,750 l/min at 7 bar, the SPFA-007 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 1/2" connection and a flow of 2,500 l/min at 7 bar, the SPFA-010 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 3/4" connection and a flow of 3,750 l/min at 7 bar, the SPFA-018 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 1" connection and a flow of 5,250 l/min at 7 bar, the SPFA-030 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 1 1/4" connection and a flow of 7,000 l/min at 7 bar, the SPFA-047 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 1 1/2" connection and a flow of 10,000 l/min at 7 bar, the SPFA-070 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 2" connection and a flow of 15,000 l/min at 7 bar, the SPFA-094 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 2" connection and a flow of 21,000 l/min at 7 bar, the SPFA-150 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 2 1/2" connection and a flow of 28,000 l/min at 7 bar, the SPFA-175 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 3" connection and a flow of 40,000 l/min at 7 bar, the SPFA-200 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
With a G 3" connection and a flow of 60,000 l/min at 7 bar, the SPFA-240 activated carbon filter removes oil vapours, hydrocarbons and odours. Working pressure up to 14 bar,...
The AV-006 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection DN32 DIN 11851, flow 150 l/min, working temperature up...
The AV-027 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection DN40 DIN 11851, flow 417 l/min, working temperature up...
The AV-032 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection DN50 DIN 11851, flow 667 l/min, working temperature up...
The AV-072 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection DN50 DIN 11851, flow 1,833 l/min, working temperature...
The AV-144 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection DN80 DIN 11851, flow 3,500 l/min, working temperature...
The AV-192 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection DN80 DIN 11851, flow 5,167 l/min, working temperature...
The AVI-006 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection Tri-clamp DN40 (1 1/2"), flow 150 l/min, working...
The AVI-027 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection Tri-clamp DN40 (1 1/2"), flow 417 l/min, working...
The AVI-032 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection Tri-clamp DN50 (2"), flow 667 l/min, working...
The AVI-072 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection Tri-clamp DN50 (2"), flow 1,833 l/min, working...
The AVI-144 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection Tri-clamp DN80 (3"), flow 3,500 l/min, working...
The AVI-192 stainless steel air venting filter for tanks and vessels cleans the air during filling and emptying. Connection Tri-clamp DN80 (3"), flow 5,167 l/min, working...
