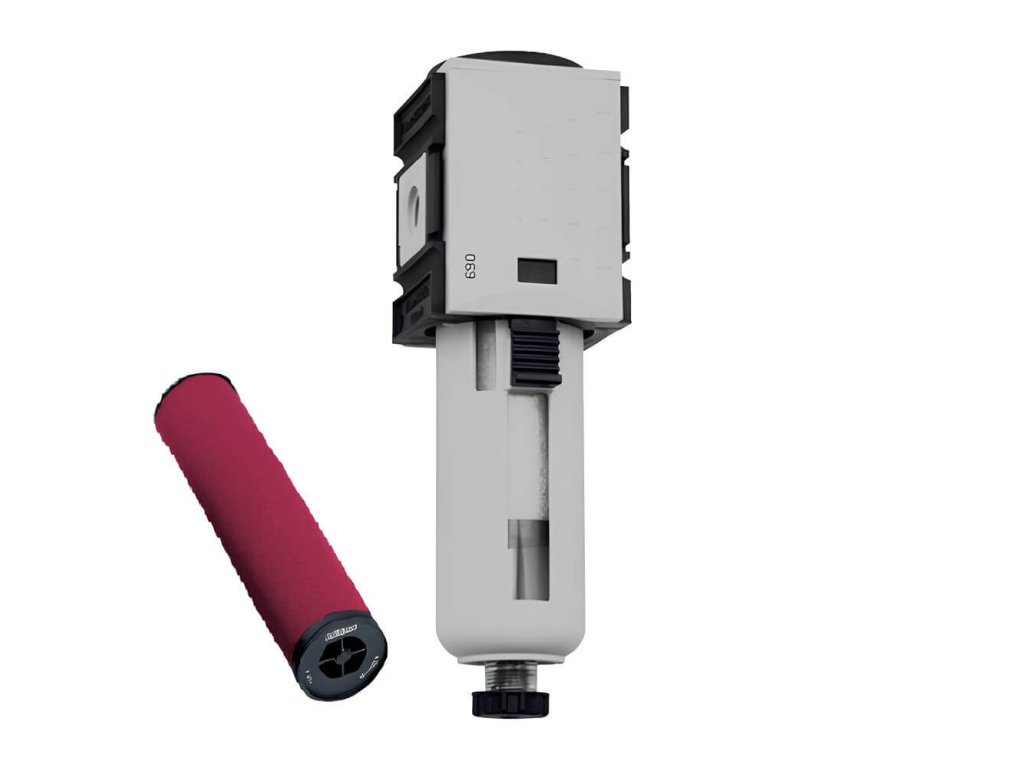

Microfilter 0.01 micron FUTURA FX12-F - G 1/2" 450 l/min · 0.01 micron · size 2 · ATEX
Code: FX12-F FX12-F-AM Choose variant
Related products
Product detailed description
The microfilter traps the finest particles above 0.01 µm and oil mist with an efficiency of 99.999 %. The residual oil content is 0.01 mg/m³, class 1 according to ISO 8573-1.
Specifications
| FX12-F — specifications | |
|---|---|
| Type | Microfilter 0.01 µm |
| Connection | G 1/2" female thread |
| Size | 2 (module width 63 mm) |
| Inlet pressure | 1.5–16 bar |
| Flow | 450 l/min |
| Filter rating | 0.01 µm |
| Pressure drop | 0.1 bar |
| Efficiency | 99.999 % |
| Residual oil | 0.01 mg/m³ |
| Bowl volume | 49 cm³ |
| Bowl | plastic, metal as a variant |
| Condensate drain | semi-automatic, automatic as a variant |
| Spare filter element | FX12-FV |
| Width × height | 63 × 195 mm |
| Material | glass-fibre reinforced polyamide body, NBR seals |
| Working temperature | −10 to +50 °C |
| Medium | compressed air and neutral gases |
| Potentially explosive atmospheres | yes, zones 1, 2, 21 and 22, T4 |
Versions
Choose the version at the top of the page. Each version has its own order number.
What it is for
It suits painting, measuring instruments and anywhere oil mist is a problem. A 5 µm filter and a 0.3 µm pre-filter go before it. Size 2 is suitable for machines and larger air lines.
Parts for this size: spare filter element FX12-FV · replacement bowl BF2F, BFM2F · bowl sealing ring OR2F · clogging indicator DDA-B, DDA-M · mounting bracket W2F · connection kit KP2F · connection kit with wall bracket KPW2F · threaded wall brackets WK2-12F.
Potentially explosive atmospheres
A mechanical device with no ignition source of its own. According to the declaration regarding Directive 2014/34/EU, you can use it in zones 1 and 2 (gases IIA, IIB, IIC) and 21 and 22 (dust IIIA, IIIB), temperature class T4, under the conditions described for the FUTURA range. We will send you the declaration on request.
Ventilek’s tip
Oil mist out, odour stays. For odours and oil vapours, add an activated carbon filter after the microfilter.
Additional parameters
| Category: | FUTURA filters, pre-filters and microfilters for ATEX environments up to 16 bar |
|---|---|
| Version: | Microfilter |
| Pressure: | 16 bar |
| Dimensions: | 195 × 63 mm |
| Certification: | ATEX |
| Filtering ability: | 0.01 µm |
| Filter insert: | Replacement insert (FX12-FV) |
| Medium: | Compressed air |
| Vessel volume: | 49 cm3 |
| Condensate discharge: | Semi-automatic, Automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 450 l/min |
| Thread: | G 1/2" |
| In stock: | External warehouse |
