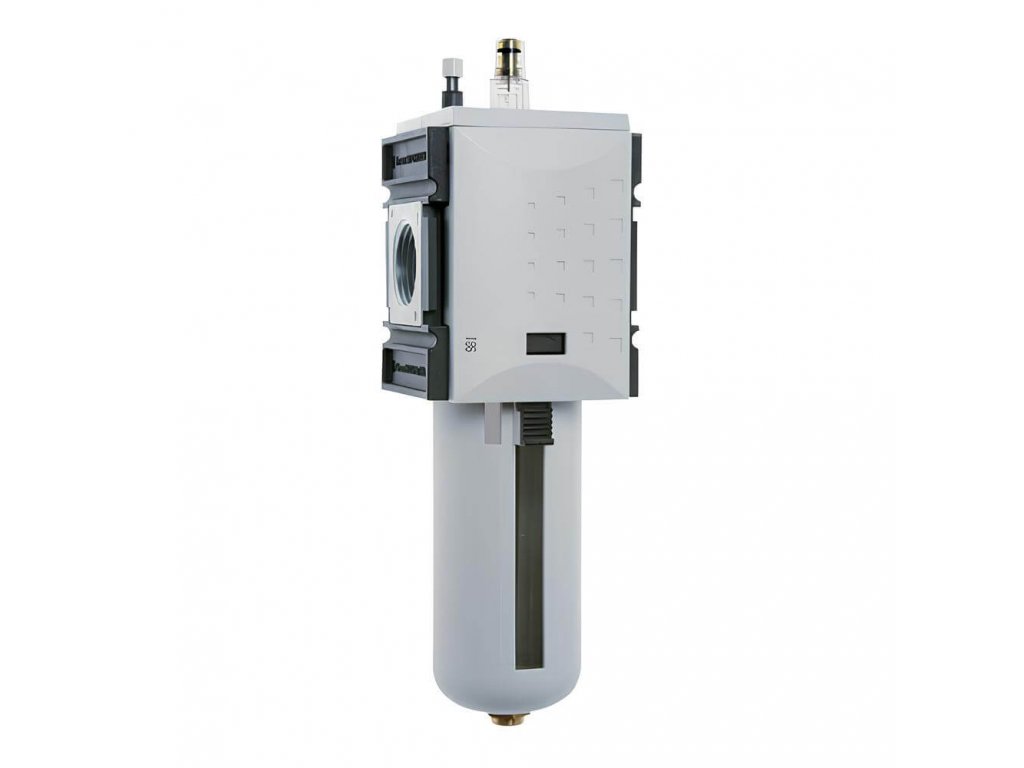

Lubricator FUTURA OL10-F - G 1" 16,000 l/min · size 4 · ATEX
Code: OL10-F OL10-F-M Choose variant
Related products
Product detailed description
The lubricator adds oil to compressed air as a fine mist, which the air carries to tools, cylinders and valves. You set the oil quantity with the dosing screw and check it by counting the drops.
Specifications
| OL10-F — specifications | |
|---|---|
| Type | Lubricator |
| Connection | G 1" female thread |
| Size | 4 (module width 85 mm) |
| Inlet pressure | 0–16 bar |
| Flow | 16,000 l/min |
| Min. flow for oiling (at 6 bar) | 115 l/min |
| Oil capacity | 181 cm³ |
| Oil dosing | about 1–2 drops per minute at 1,000 l/min |
| Oil filling | manually, or through a G 1/8" hose during operation |
| Bowl | plastic, metal as a variant |

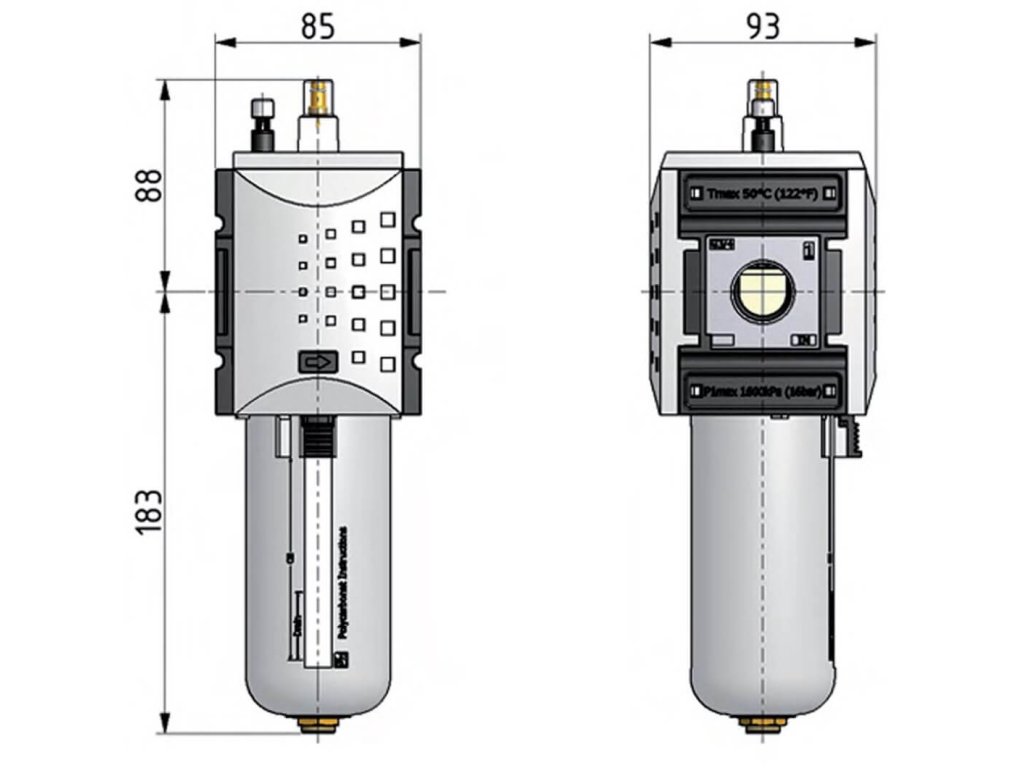

| Width × height | 85 × 271 mm |
| Material | glass-fibre reinforced polyamide body, NBR seals |
| Working temperature | −10 to +50 °C |
| Medium | compressed air and neutral gases |
| Potentially explosive atmospheres | yes, zones 1, 2, 21 and 22, T4 |
Versions
Choose the version at the top of the page. Each version has its own order number.
What it is for
It goes last in the assembly, after the filter and regulator, for tools and actuators that need lubrication. It is not for spraying. Size 4 is suitable for the main air line or for large consumers.
Parts for this size: replacement bowl BOL4F, BOLM4F · bowl sealing ring OR4F · sight dome TROPFOLF · oil SOL, SOLWI, SOLLE · mounting bracket W4F · connection kit KP4F · connection kit with wall bracket KPW4F · threaded wall brackets WK4-10F.
Potentially explosive atmospheres
A mechanical device with no ignition source of its own. According to the declaration regarding Directive 2014/34/EU, you can use it in zones 1 and 2 (gases IIA, IIB, IIC) and 21 and 22 (dust IIIA, IIIB), temperature class T4, under the conditions described for the FUTURA range. We will send you the declaration on request.
Ventilek’s tip
Only oil for pneumatics. Engine or hydraulic oil is too thick and the dosing would not work properly.
Additional parameters
| Category: | FUTURA lubricators for ATEX environments up to 16 bar |
|---|---|
| Version: | Lubricator |
| Pressure: | 16 bar |
| Dimensions: | 85 × 271 mm |
| Certification: | ATEX |
| Medium: | Compressed air |
| Vessel volume: | 181 cm3 |
| Working temperature: | -10 / 50 °C |
| Flow: | 16,000 l/min |
| Thread: | G 1" |
| In stock: | External warehouse |
