Lubricator FUTURA OL38-F - G 3/8" 2,800 l/min · size 1 · ATEX
Code: OL38-F OL38-F-M Choose variant
Related products
Product detailed description
The lubricator adds oil to compressed air as a fine mist, which the air carries to tools, cylinders and valves. You set the oil quantity with the dosing screw and check it by counting the drops.
Specifications
| OL38-F — specifications | |
|---|---|
| Type | Lubricator |
| Connection | G 3/8" female thread |
| Size | 1 (module width 52 mm) |
| Inlet pressure | 0–16 bar |
| Flow | 2,800 l/min |
| Min. flow for oiling (at 6 bar) | 90 l/min |
| Oil capacity | 40 cm³ |
| Oil dosing | about 1–2 drops per minute at 1,000 l/min |
| Oil filling | manually, or through a G 1/8" hose during operation |
| Bowl | plastic, metal as a variant |

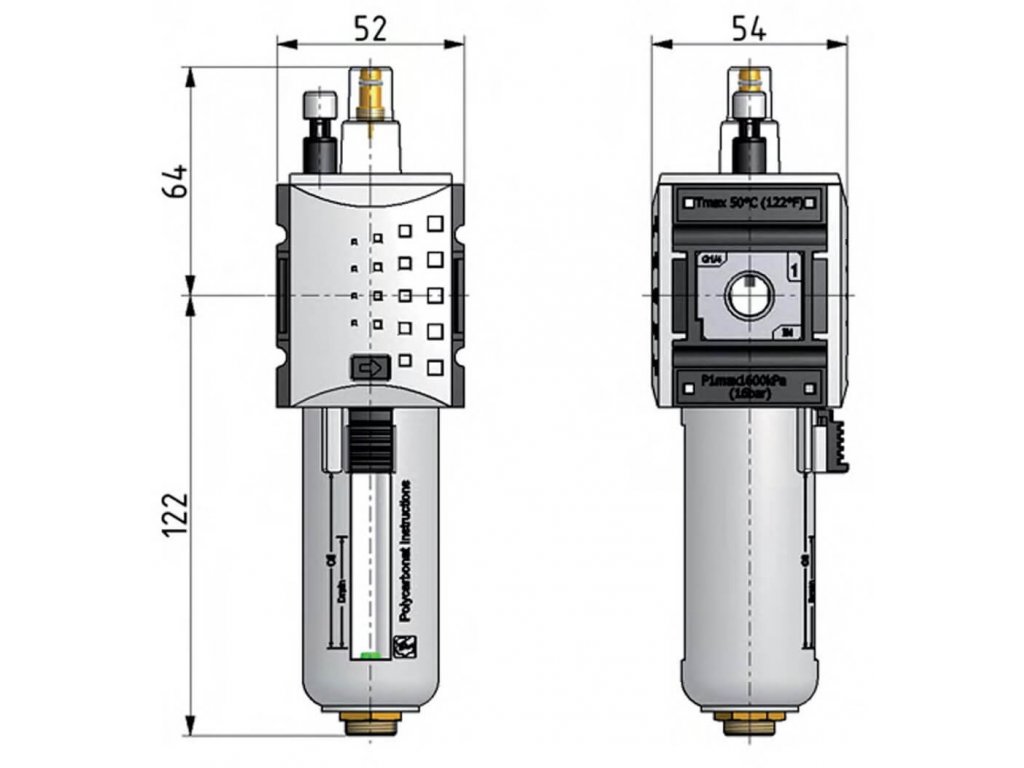

| Width × height | 52 × 185 mm |
| Material | glass-fibre reinforced polyamide body, NBR seals |
| Working temperature | −10 to +50 °C |
| Medium | compressed air and neutral gases |
| Potentially explosive atmospheres | yes, zones 1, 2, 21 and 22, T4 |
Versions
Choose the version at the top of the page. Each version has its own order number.
What it is for
It goes last in the assembly, after the filter and regulator, for tools and actuators that need lubrication. It is not for spraying. Size 1 is suitable for tools and smaller machines.
Parts for this size: replacement bowl BOL1F, BOLM1F · bowl sealing ring OR1F · sight dome TROPFOLF · oil SOL, SOLWI, SOLLE · mounting bracket W1F · connection kit KP1F · connection kit with wall bracket KPW1F · threaded wall brackets WK1-38F.
Potentially explosive atmospheres
A mechanical device with no ignition source of its own. According to the declaration regarding Directive 2014/34/EU, you can use it in zones 1 and 2 (gases IIA, IIB, IIC) and 21 and 22 (dust IIIA, IIIB), temperature class T4, under the conditions described for the FUTURA range. We will send you the declaration on request.
Ventilek’s tip
Branch off before the lubricator. Neither spraying nor blow-off tolerates oil. Take the air for them before the lubricator.
Additional parameters
| Category: | FUTURA lubricators for ATEX environments up to 16 bar |
|---|---|
| Version: | Lubricator |
| Pressure: | 16 bar |
| Dimensions: | 52 × 185 mm |
| Certification: | ATEX |
| Medium: | Compressed air |
| Vessel volume: | 40 cm3 |
| Working temperature: | -10 / 50 °C |
| Flow: | 2,800 l/min |
| Thread: | G 3/8" |
| In stock: | External warehouse |
