Sintered pre-filter WFITI1-094 – 14 bar, G 2", 15,000 l/min 1 micron sintered stainless steel · 14 bar
Code: WFITI1-094
Related products
Product detailed description

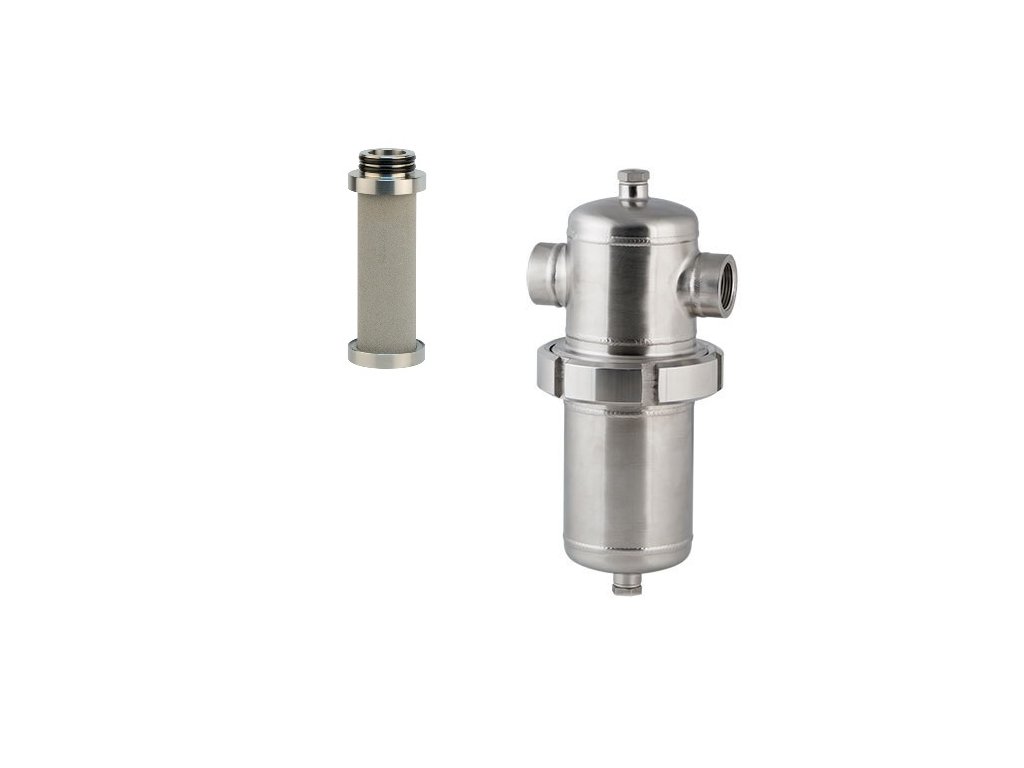

The WFITI1-094 sintered process pre-filter traps solid particles larger than 1 µm. It has a G 2" connection (female pipe thread), a flow of 15,000 l/min at 7 bar and a working pressure of up to 14 bar.
It belongs to the WFIT process filters, among the WFITI1 sintered pre-filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 2" (female pipe thread) |
| Flow at 7 bar | 15,000 l/min (900 Nm³/h) |
| Working pressure | 14 bar |
| Element temperature | +1.5 to +150 °C |
| Filtration rating | 1 µm |
| Element replacement | at least once every 12 months |
| Element | PFI1-094V |
| Element material | sintered stainless steel 1.4404 |
| Element design | sintered |
| Housing | welded stainless steel 1.4404 |
| Height A | 458 mm |
| Width across the connections B | 180 mm |
| Housing diameter C | 114.3 mm |
| Weight | 5.4 kg |
| Condensate drain outlet E | G 1/2" thread in the bottom |
| Condensate drain | ordered separately |
Housing and dimensions
The welded housing is made of stainless steel 1.4404, or 1.4301 on request, with FKM seals (EPDM or silicone on request) and female pipe threads. It withstands −20 to +150 °C; the actual limit depends on the seals and the element.
According to the manufacturer: height A 458 mm, width across the connections B 180 mm, housing diameter C 114.3 mm. Weight 5.4 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it is multiplied by the correction factor; at 14 bar it is 1.88:
| Pressure (bar) | 4 | 7 | 10 | 14 |
|---|---|---|---|---|
| Flow (l/min) | 9,450 | 15,000 | 20,700 | 28,200 |
Element and accessories
Where to place it
It goes after the basic mesh, before the WFITM fine pre-filter.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | WFITI1 sintered stainless steel pre-filters up to 14 bar |
|---|---|
| Version: | Dust filter |
| Pressure: | 14 bar |
| Connecting: | 2" |
| Dimensions: | 458 × 180 × 114.3 mm |
| Filtration: | 1 µm |
| Filter insert: | PFI1-094V |
| Material: | Stainless steel |
| Condensate discharge: | Without drain |
| Number of inserts: | 1 |
| Working temperature: | +1.5 / +150 °C |
| Flow: | 15,000 l/min |
